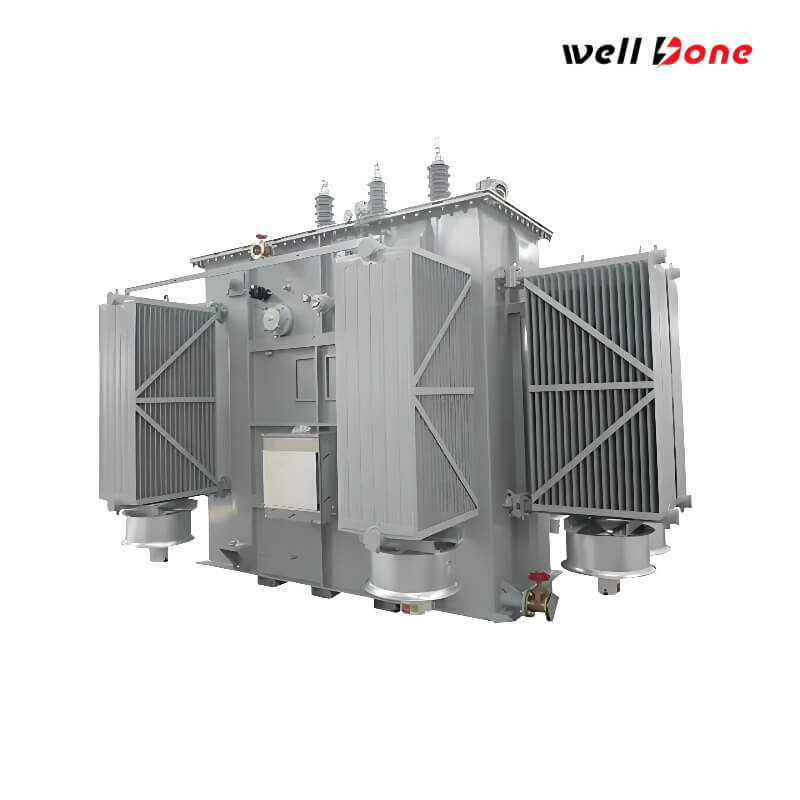

1000kVA Skid Mounted Substation Transformer

Introducing our advanced 1000kVA Skid Mounted Substation Transformer, a state-of-the-art solution that delivers precise power conversion in a compact, modular design while ensuring exceptional reliability and efficiency in even the most demanding environments. Engineered to exceed global performance benchmarks, it complies with stringent AS/NZS 60076 and IEC 60076 standards, making it ideal for a wide range of applications from skid-mounted substations to complex systems in mining, power stations, industrial, and commercial sectors. Our extensive transformer services, covering distribution transformers below 35kV and high voltage units above 66kV, further underscore our commitment to providing innovative, customized solutions that deliver robust performance and seamless integration across diverse power networks.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

High-Voltage Interface Terminal

Low-Voltage Termination Module

Precision Control Access Panel

Integrated Thermal Monitoring Probe

Service Diagnostic Port with Sampling Valve

Modular Maintenance Hatch

Reinforced Mounting Brackets

Vibration Dampening Supports

Custom Identification Plate

Protective Relief Assembly

Get a Quote

Product Specifications

Primary Voltage

11 kV

Power Rating

1000KVA（1MVA）

Secondary Voltage

433 V

Operating Frequency

50 Hz

Efficiency

Over 99%

Cooling Method

Natural Air (ONAN)

Impedance

5.75%

Dimensions

1420mm (L) x 2211mm (W) x 1470mm (H)

Total Weight

Approximately 2750 kg

Tap Settings

5 positions

Product Applications

Economy is more affordable

Ideal for powering isolated mining operations with rugged, stable energy distribution.

Remote Mining Substations
Suited for industrial installations requiring compact, efficient power conversion near harbors.

Port and Coastal Facilities
Perfect for localized renewable energy integration in modular grid setups.

Modular Microgrid Solutions
Optimized for industrial plants needing dependable, steady power distribution systems.

Manufacturing Energy Hubs

Product Advantages

Streamlined Installation

The skid-mounted design allows for quick deployment and seamless integration into existing systems.

Superior Efficiency

Engineered to minimize energy losses while delivering consistent and accurate voltage conversion.

Enhanced Durability

Constructed with high-quality materials and built to comply with international standards for long-term operational reliability.

WellDone Power Transformer Plan Drawing

FAQ

What range of transformer products do you offer and which standards do they meet?

We manufacture a diverse array of transformers including Oil-Immersed Distribution Transformers, Dry Type Transformers, Power Transformers, Three Phase Pad Mounted Transformers, Single Phase Pad Mounted Transformers, Substation Transformers, and Pole Mounted Transformers. Our technical team, with nearly 20 years of industry experience, ensures that our designs comply with international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our products have obtained UL, cUL, and CSA certifications, affirming their safety and performance in global markets.
How do you ensure the quality and reliability of your transformers?

Our transformers are produced under a rigorous quality management system covering every stage from material selection to final testing. Each product comes with a minimum 24-month warranty, ensuring long-term safety and reliability. This commitment to quality has earned the trust of global customers and leading industry players.
What are your production lead times, customization options, and global market reach?

For standard models, our production lead time is typically 10 to 25 days, and we offer flexible OEM/ODM services for customized projects. We also tailor packaging solutions to meet specific customer requirements. Our transformers are exported worldwide—including North America, Europe, South America, Australia, Asia, and Africa—with successful partnerships involving renowned companies. For more details or personalized support, please contact us via email or WhatsApp.
