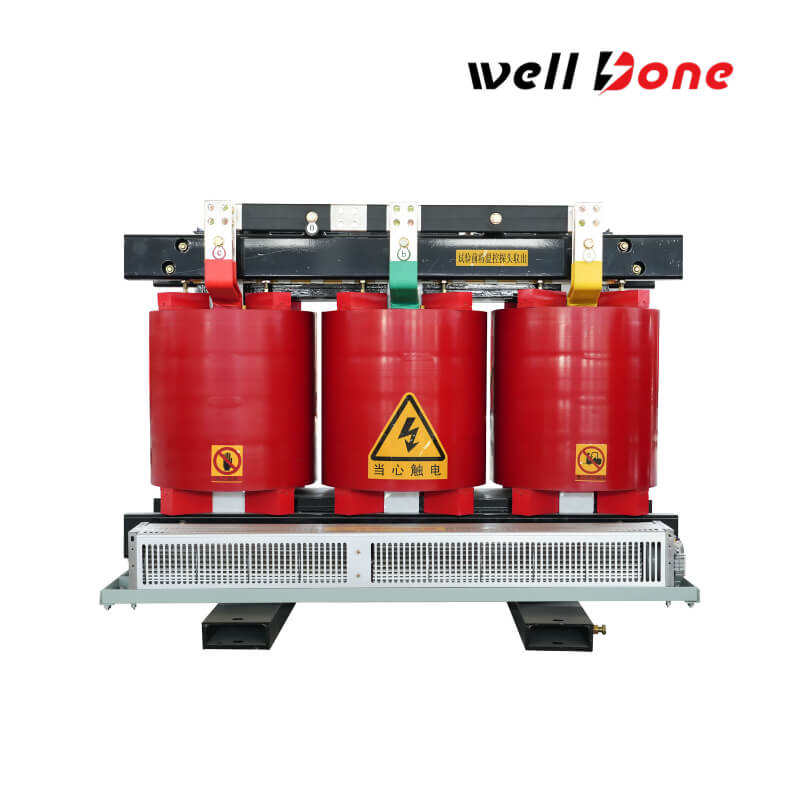

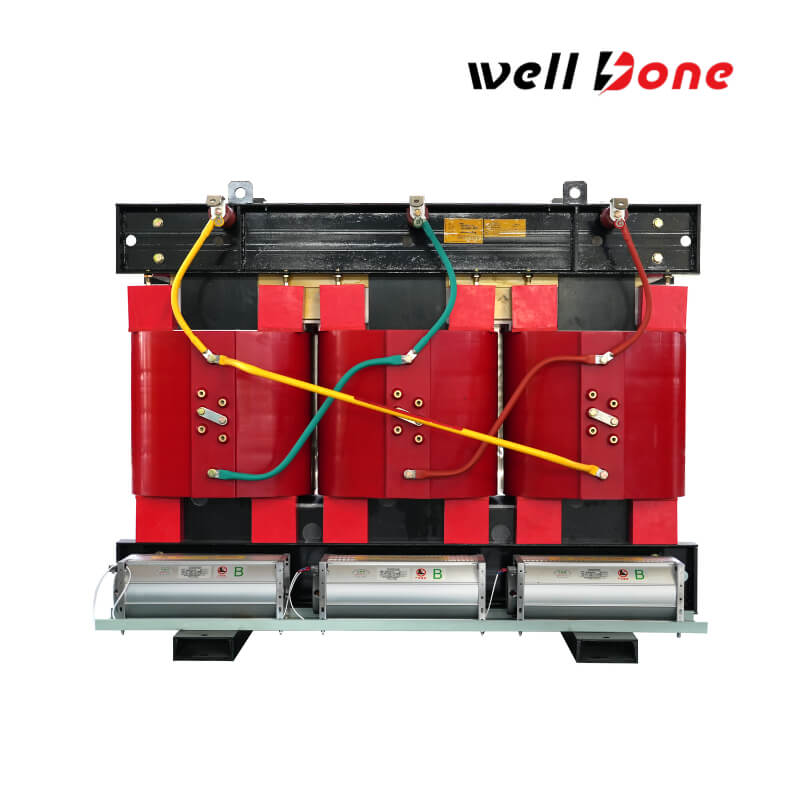

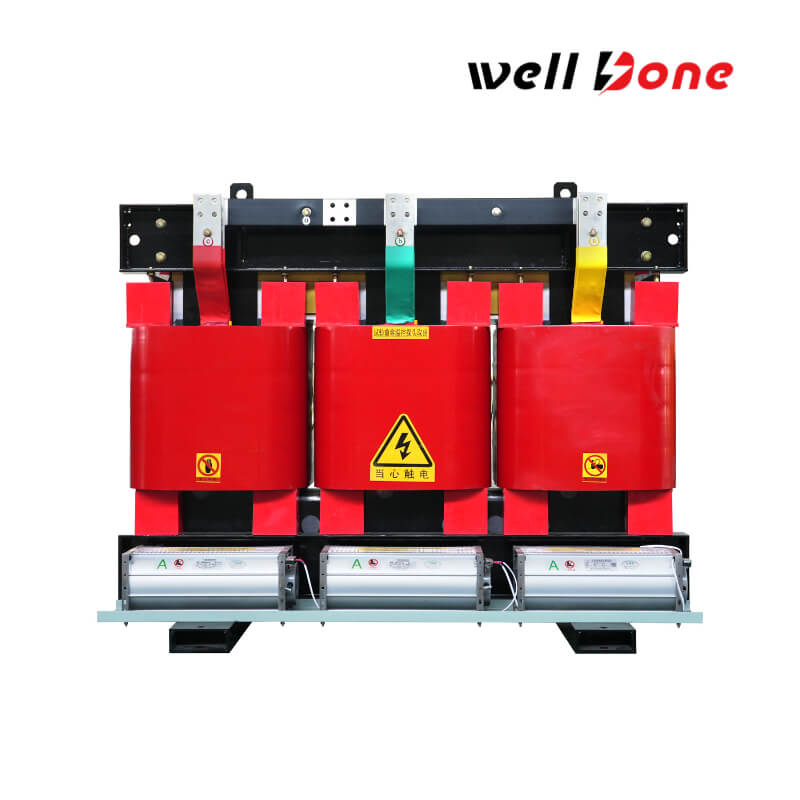

10KV 1600KVA Dry Type Transformer

Our innovative three-phase epoxy-resin dry-type transformers, designed in compliance with IEC726 and GB/T10228-1997 standards, offer exceptional performance for modern power transmission and distribution systems with a compact, lightweight build that minimizes losses and noise while delivering excellent damp-proof capabilities, high mechanical durability, flame resistance, robust overload capacity, and low partial discharge characteristics—making them ideal for heavy load centers and environments requiring advanced fire protection; meanwhile, the 10KV 1600KVA dry type transformer provides reliable, high-performance power distribution through its oil-free design, engineered for optimal voltage stability and efficient thermal management, ensuring maintenance-free operation in demanding industrial and commercial settings, and together, these advanced transformers set a new standard in energy management solutions.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Enhance the efficiency and reliability of your 10KV 1600KVA dry type transformer with our extensive suite of precision-crafted accessories, each engineered to boost performance, ensure safety, and enable effortless integration into your power distribution network.

Standard Accessories:

Bidirectional Trolley
Featuring dual-direction wheels paired with a secure locking mechanism, this trolley guarantees smooth mobility and stable positioning during both installation and maintenance.

Temperature Sensors
Equipped with a minimum of three high-accuracy PT100 sensors, these units provide continuous monitoring of winding temperatures, offering real-time insights to prevent overheating and safeguard operational integrity.

Temperature Control Unit
Integrated directly into the transformer's protection and monitoring framework, this unit enables exact temperature regulation, thereby enhancing system reliability.

Lifting Lugs
Expertly positioned for optimal balance, the lifting lugs simplify handling and transportation, ensuring safe and efficient movement during setup and service operations.

Neutral Terminal
The low-voltage side features an easily accessible neutral terminal that facilitates straightforward grounding procedures, further reinforcing system safety during operation.

Get a Quote

Product Specifications

Rated Voltage

10KV

Capacity

1600KVA（1.6MVA）

Phase Configuration

Three-phase

Standards Compliance

Conforms to IEC 60076 ANSI and IEEE standards

Cooling Mechanism

Adopts passive cooling through natural air circulation to efficiently dissipate heat, eliminating the need for additional cooling systems while ensuring optimal thermal regulation.

Insulation System

Utilizes an innovative blend of epoxy resin with quartz aggregates, delivering exceptional moisture and fire resistance for truly maintenance-free operation.

Core Construction

Engineered from low-loss, cold-rolled silicon steel with enhanced magnetic properties, this design minimizes energy losses and boosts overall efficiency.

Winding Design

Features high-grade copper windings insulated with epoxy resin, offering superior mechanical strength to withstand short-circuit stresses and ensure enduring reliability.

Insulation Class

Constructed with Class F insulation materials, the transformer is capable of operating continuously at elevated temperatures up to 155°C.

Maximum Winding Temperature Rise

Optimized for performance, the transformer restricts its average winding temperature increase to a maximum of 105°C above ambient during full-load conditions.

Product Applications

Economy is more affordable

Supplies consistent, maintenance-free power for heavy machinery and automation systems.

Industrial Manufacturing Facilities
Delivers reliable energy for office complexes, retail centers, and shopping malls with minimal downtime.

Commercial Buildings
Ensures stable, interference-free voltage essential for high-performance computing environments.

Data Centers & IT Hubs
Powers schools, hospitals, and government buildings with a focus on safety and long-term reliability.

Institutional Infrastructure

Product Advantages

Maintenance-Free Operation

Dry type design eliminates oil handling and reduces fire risk, ensuring hassle-free service.

Superior Efficiency

Optimized low-loss performance minimizes energy wastage, lowering operational costs.

Robust Construction

Built with durable, high-quality materials to provide long-term reliability in challenging environments.

WellDone Power Transformer Plan Drawing

FAQ

What range of transformer products do you offer and which standards do they meet?

We manufacture a diverse array of transformers including Oil-Immersed Distribution Transformers, Dry Type Transformers, Power Transformers, Three Phase Pad Mounted Transformers, Single Phase Pad Mounted Transformers, Substation Transformers, and Pole Mounted Transformers. Our technical team, with nearly 20 years of industry experience, ensures that our designs comply with international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our products have obtained UL, cUL, and CSA certifications, affirming their safety and performance in global markets.
How do you ensure the quality and reliability of your transformers?

Our transformers are produced under a rigorous quality management system covering every stage from material selection to final testing. Each product comes with a minimum 24-month warranty, ensuring long-term safety and reliability. This commitment to quality has earned the trust of global customers and leading industry players.
What are your production lead times, customization options, and global market reach?

For standard models, our production lead time is typically 10 to 25 days, and we offer flexible OEM/ODM services for customized projects. We also tailor packaging solutions to meet specific customer requirements. Our transformers are exported worldwide—including North America, Europe, South America, Australia, Asia, and Africa—with successful partnerships involving renowned companies. For more details or personalized support, please contact us via email or WhatsApp.
