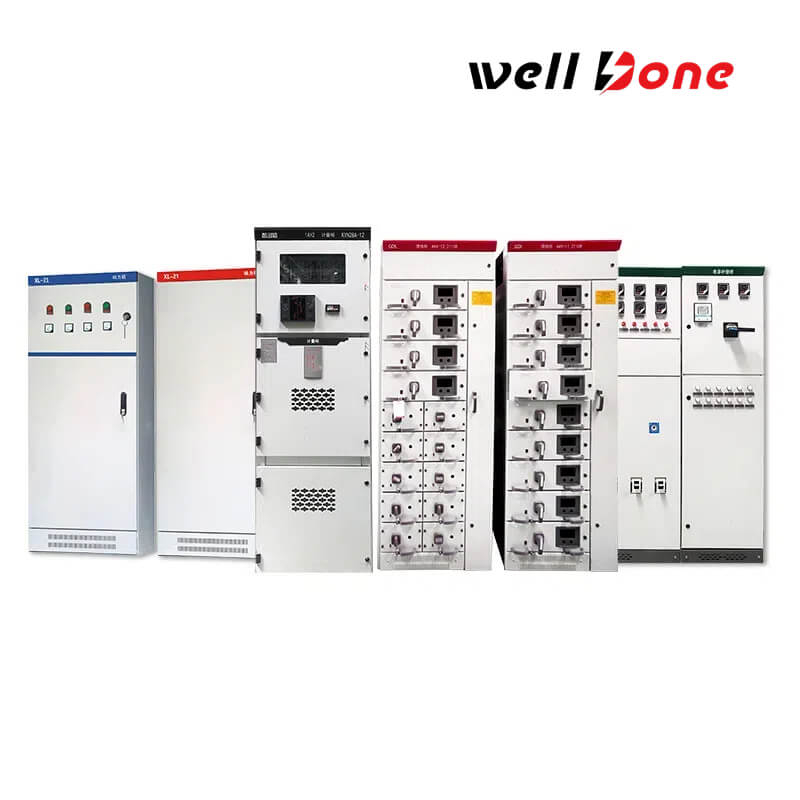

Electric Power Distribution High Voltage Switchgear

Electric Power Distribution High Voltage Switchgear

High Voltage Switchgear represents a state-of-the-art solution designed for critical, high-power environments. In today's advanced electrical systems, switchgear is the centralized assembly of essential circuit protection components—circuit breakers, fuses, and switches—that secure, control, and isolate power. These components are mounted in rugged metal enclosures and configured into modular arrays to meet the demanding needs of utility transmission, distribution networks, and industrial or commercial facilities. Adhering to rigorous IEEE and IEC standards, these systems not only manage power distribution with precision but also safeguard both equipment and personnel by regulating current flow. Our High Voltage Switchgear, enhanced with innovative digital automation and rapid fault isolation capabilities, is engineered to ensure optimal reliability and efficiency, making it indispensable for high-stakes power distribution and safety-critical applications.

Quantity:
Availability:





Inquire Add to Basket

Product Types

Compact Switchgear
Designed for medium-voltage applications, compact switchgear integrates circuit breakers and disconnects into a sealed, space-saving unit. It is ideal for locations with limited space, offering high performance while complying with IEEE and IEC standards.

Metal-Clad Switchgear
Featuring a compartmentalized design, metal-clad switchgear enhances safety and durability. With draw-out circuit breakers for easy maintenance, it is widely used in power generation, industrial plants, and high-demand electrical networks.

Metal-Enclosed Switchgear
This switchgear type houses circuit breakers, fuses, and metering equipment within a shared enclosure. Its simplified design makes it suitable for commercial and industrial facilities operating above 480/600V, where cost-effectiveness and reliability are key.

Pad-Mounted Switchgear
Designed for underground distribution networks, pad-mounted switchgear is tamper-resistant and built for outdoor environments. It offers multiple switching and protection options, ensuring reliable operation in utility and feeder systems.

Vault & Subsurface Switchgear
Installed in below-grade or vault locations, this switchgear type supports safe and efficient power distribution in confined spaces. Available with remote or manual operation, it utilizes vacuum interrupters and advanced insulation for superior fault protection.

Get a Quote

Product Specifications

Application

The High Voltage Switchgear is designed for high voltage power distribution systems, ensuring optimal performance and protection for large-scale electrical networks, substations, and industrial applications

Rated Voltage

Available in a wide range of rated voltages from 36kV to 800kV, this switchgear can handle demanding power distribution tasks in high voltage environments

Rated Current

Rated to support up to 3150A of continuous current, this switchgear ensures stable and efficient performance even under heavy electrical loads

Short-Circuit Withstand Capacity

The High Voltage Switchgear is engineered to withstand fault currents and has a high short-circuit withstand capacity, compliant with international standards to prevent damage during electrical faults

Protection Level

Offering IP54 or IP67 protection levels, this switchgear is highly resistant to dust and water ingress, making it ideal for use in harsh and outdoor environments

Frequency

Available for both 50Hz and 60Hz systems, it is compatible with power grids across different regions and industries

Ambient Temperature Range

Designed to operate in a wide ambient temperature range of -10°C to 50°C, making it adaptable to both extremely cold and hot environments

Relative Humidity Range

Optimized for environments with relative humidity levels between 5% to 95%, the switchgear performs reliably in diverse atmospheric conditions

Standards Compliance

Our High Voltage Switchgear meets IEC 62271, GB 3804, ANSI C37.20, and other international standards, ensuring that it delivers safety, reliability, and efficiency across global applications

Certifications

Certified with CE, ISO 9001, ISO 14001, and CCC, this switchgear meets the highest global quality and environmental management standards

Product Applications

Economy is more affordable

Product Advantages

Superior Safety

Advanced insulation and automated fault isolation ensure optimal protection.

Robust Reliability

Durable modular design offers continuous, maintenance-free operation in harsh environments.

Operational Efficiency

Smart automation minimizes energy losses and reduces long-term operational costs.

WellDone Switchgear Structure Diagram

FAQ

What range of Low Voltage, Medium Voltage, and High Voltage Switchgear products do you offer and which standards do they meet?

We specialize in manufacturing a wide range of Low Voltage Switchgear, Medium Voltage Switchgear, High Voltage Switchgear, Compact Switchgear, Metal-Clad Switchgear, Metal-Enclosed Switchgear, Pad-Mounted Switchgear, and Vault & Subsurface Switchgear. Our technical team, with nearly 20 years of industry experience, ensures that all designs comply with international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our Switchgear products are UL, cUL, and CSA certified, ensuring their safety, performance, and compliance in global markets.
How do you ensure the quality and reliability of your Electric Power Distribution Switchgear?

Our Electric Power Distribution Switchgear is manufactured under a strict quality management system, covering all stages from material selection to final testing. Each product is supported by a minimum 24-month warranty, ensuring long-term safety and reliability. This commitment to quality has earned us the trust of global clients and leaders in the energy sector.
What are your production lead times, customization options, and global market reach?

For standard Electric Power Distribution Switchgear models, the production lead time typically ranges from 10 to 25 days. We also offer flexible OEM/ODM services, providing customized solutions for specific projects. Packaging can be tailored to meet unique customer requirements. Our Switchgear products are exported to North America, Europe, South America, Australia, Asia, and Africa, with successful collaborations with well-known global companies.

For more details or personalized support, please contact us via email or WhatsApp.
