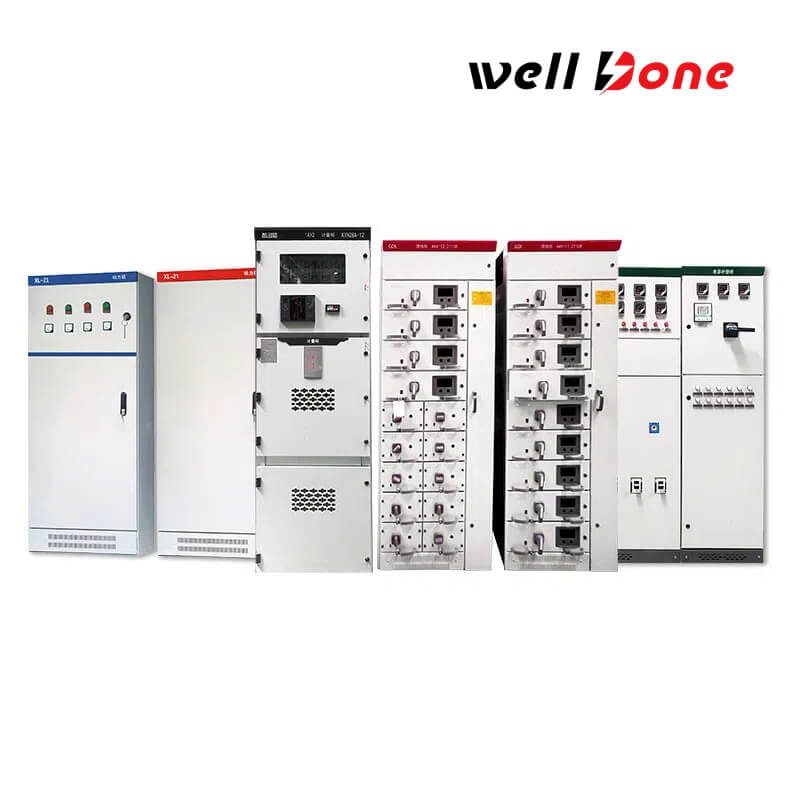

Electric Power Distribution Low Voltage Switchgear

Low Voltage Switchgear stands as a pivotal component in modern electrical systems, integrating circuit breakers, fuses, and switches within robust metal enclosures. Engineered for precision and safety, this innovative technology optimizes power distribution across industrial, commercial, and utility networks while adhering to stringent IEEE and IEC standards. Its modular design and advanced automation not only enhance system reliability but also provide critical protection by effectively managing current flow. By emphasizing efficiency and safety, Low Voltage Switchgear ensures seamless integration and superior performance, making it indispensable for maintaining a resilient and secure power infrastructure.

Quantity:
Availability:





Inquire Add to Basket

Product Types

Compact Switchgear
Ideal for installations with space constraints, compact switchgear offers a medium-voltage solution with integrated, sealed circuit breakers and disconnects. Its versatile design supports both combined 3-phase configurations and isolated phase setups, meeting international standards like IEEE C37.20.9 and IEC 62271.

Metal-Clad Switchgear
Engineered for enhanced safety and ease of maintenance, metal-clad switchgear houses every component—bus bars, instrumentation, and circuit breakers—in separate metal compartments. Rated from 5 kV to 38 kV, its draw-out breaker feature makes it a robust choice for industrial plants, power generation, and transmission systems.

Metal-Enclosed Switchgear
This type integrates circuit protection devices, such as circuit breakers and fuses, along with control and metering equipment, into a unified enclosure. Suitable for commercial and industrial applications with service levels above 480/600V, metal-enclosed switchgear simplifies design and maintenance without the need for compartmental barriers.

Pad-Mounted Switchgear
Designed for above-ground installation in underground distribution networks, pad-mounted switchgear provides a low-profile, tamper-resistant solution for voltages ranging from 5 kV to 38 kV. It utilizes various insulation methods—such as air, SF6 gas, and solid-dielectric technologies—to ensure safe and efficient circuit protection in utility applications.

Vault or Subsurface Switchgear
Tailored for below-grade or vault environments, this switchgear is ideal for locations exposed to moisture. Operating between 15 kV and 38 kV, vault switchgear offers both manual and relay-assisted control, using vacuum interrupters and diverse insulation mediums to maintain reliable performance in challenging conditions.

Get a Quote

Product Specifications

Application

The Low Voltage Switchgear is specifically designed for low voltage power distribution systems, ensuring optimal management and protection of electrical circuits in various environments

Rated Voltage

This switchgear operates efficiently at rated voltages of 10kV, suitable for both residential and commercial power distribution systems

Rated Current

Rated at 1000A, the switchgear is capable of handling substantial electrical loads while maintaining performance and safety

Rated Short-Circuit Duration

Our switchgear is capable of handling short-circuit durations of either 4 seconds or 3 seconds, providing robust protection against power surges and fault conditions

Protection Level

The IP4X or IP40 protection level ensures that the switchgear is safeguarded against solid particles and water ingress, making it ideal for harsh environmental conditions

Frequency

Designed to operate in both 50Hz and 60Hz power systems, this switchgear offers global compatibility for electrical infrastructure

Operating Temperature

With a wide ambient temperature range of -5°C to 40°C, this switchgear ensures dependable operation in varying climatic conditions

Relative Humidity Range

This model is designed to perform efficiently in environments with relative humidity levels ranging from 40% to 50%

nternational Standards Compliance

The Low Voltage Switchgear meets critical industry standards, including IEC 60298, GB 3906, and GB/T 11022, ensuring top-tier safety and performance in line with global electrical regulations

Certifications

Certified with CE, ISO, and CCC marks, this product guarantees compliance with the highest safety, quality, and environmental standards globally

Product Applications

Economy is more affordable

Product Advantages

Robust Reliability

Built for continuous operation and enduring performance under demanding conditions.

Advanced Safety

Integrated protection features effectively prevent faults and overloads.

Energy Efficiency

Optimized design minimizes energy losses, reducing overall maintenance and operational costs.

WellDone Switchgear Structure Diagram

FAQ

What range of Low Voltage, Medium Voltage, and High Voltage Switchgear products do you offer and which standards do they meet?

We specialize in manufacturing a wide range of Low Voltage Switchgear, Medium Voltage Switchgear, High Voltage Switchgear, Compact Switchgear, Metal-Clad Switchgear, Metal-Enclosed Switchgear, Pad-Mounted Switchgear, and Vault & Subsurface Switchgear. Our technical team, with nearly 20 years of industry experience, ensures that all designs comply with international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our Switchgear products are UL, cUL, and CSA certified, ensuring their safety, performance, and compliance in global markets.
How do you ensure the quality and reliability of your Electric Power Distribution Switchgear?

Our Electric Power Distribution Switchgear is manufactured under a strict quality management system, covering all stages from material selection to final testing. Each product is supported by a minimum 24-month warranty, ensuring long-term safety and reliability. This commitment to quality has earned us the trust of global clients and leaders in the energy sector.
What are your production lead times, customization options, and global market reach?

For standard Electric Power Distribution Switchgear models, the production lead time typically ranges from 10 to 25 days. We also offer flexible OEM/ODM services, providing customized solutions for specific projects. Packaging can be tailored to meet unique customer requirements. Our Switchgear products are exported to North America, Europe, South America, Australia, Asia, and Africa, with successful collaborations with well-known global companies.

For more details or personalized support, please contact us via email or WhatsApp.
