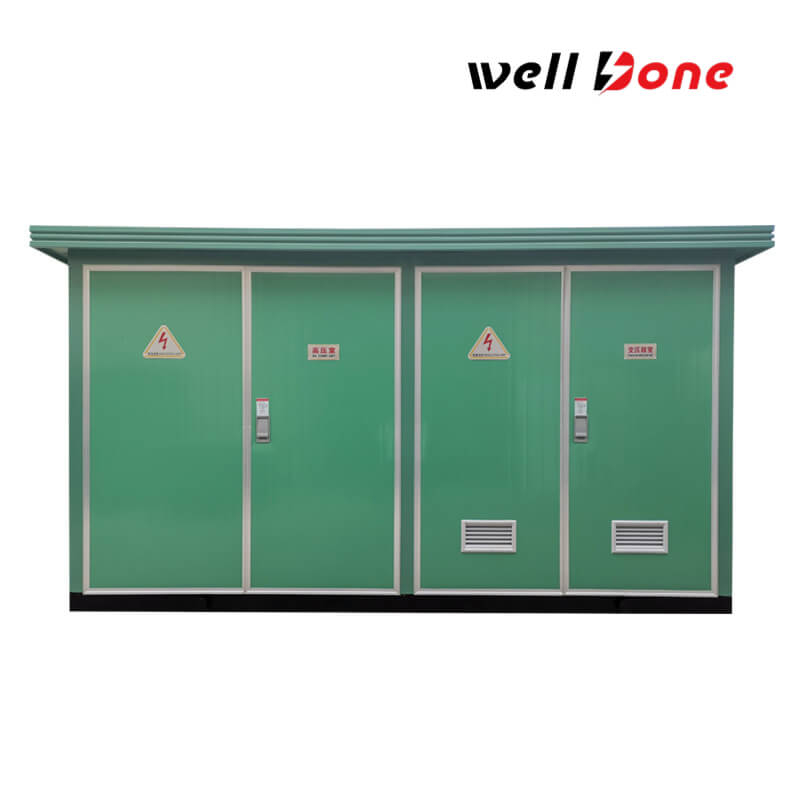

10KV 630KVA Prefabricated Compact Substation

10KV 630KVA Prefabricated Compact Substation

The 10KV 630KVA Prefabricated Compact Substation is a cutting-edge solution for modern energy distribution, seamlessly integrating high-voltage switchgear, distribution transformers, and low-voltage power distribution devices into a single, compact unit. Designed for three-phase AC systems with a rated voltage of 10/0.4kV, it effectively serves various applications, including factories, mines, oil fields, ports, airports, urban public buildings, highways, and underground facilities. Its robust construction ensures durability, while its compact design allows for easy installation in space-constrained environments. By incorporating advanced digital controls and safety features, the YB substation offers reliable and efficient performance, meeting the evolving demands of modern electrical networks.

Quantity:
Availability:





Inquire Add to Basket

Product Features

The 10KV 630KVA Prefabricated Compact Substation integrates UV-resistant composite materials, high-density structural reinforcement, and intelligent thermal management systems to enhance durability, efficiency, and seamless power distribution.

1. Substation Exterior Wall:
Crafted with UV-resistant aluminum composite panels, the wall offers robust protection against harsh weather while enhancing thermal regulation and reducing maintenance needs.

2. Substation Base:
Built on a reinforced high-density concrete platform, this base ensures optimal weight distribution and seismic stability, providing long-term durability and minimal structural settlement.

3. Metal Door Frame:
Engineered from thermally treated steel and sealed with weatherproof gaskets, the door frame guarantees secure access and shields internal components from dust, moisture, and temperature fluctuations.

4. Ventilation:
Equipped with a smart ventilation system featuring adaptive-speed cooling fans and integrated thermal sensors, it maintains a consistent internal climate, ensuring reliable performance and energy savings under varying load conditions.

5. Installation Method:
Utilizing a uniquely engineered modular design with intuitive alignment features and integrated fixings, this substation enables rapid on-site assembly, reducing labor costs and streamlining project execution.

Get a Quote

Product Specifications

Primary Voltage

10kV ,Delivers robust high-voltage input for consistent power sourcing

Secondary Voltage

0.4kV ,Provides a secure low-voltage output, ensuring safe energy distribution

Size

5500 ,Optimized dimensions for streamlined installation in space-constrained settings

Material

Brass ,Constructed with premium brass components that offer superior durability and excellent corrosion resistance

Frequency

50/60Hz ,Fully compatible with global grid standards, ensuring stable, synchronized performance

Operating Temperature

40°C to +180°C ,Designed to operate efficiently across a wide temperature range, making it ideal for extreme conditions

Cooling Method

ONAN (Oil Natural Air Natural) ,Employs a passive cooling system to ensure effective heat dissipation and maintain optimal performance

Certification

ISO, CCC, CTQC ,Verified to meet rigorous international quality and safety standards

Standard

Conforms to IEC ANSI and IEEE guidelines

Protection Level

IP30, IP32, IP40, IP65, IP66 ,Offers versatile ingress protection options to accommodate various installation environments

Product Applications

Economy is more affordable

Perfect for upgrading city substations where space is limited and reliability is critical.

Urban Grid Modernization
Provides stable, efficient power distribution for manufacturing plants and process facilities.

Industrial Complexes
Seamlessly connects solar and wind power installations to the main grid.

Renewable Energy Integration
Ideal for schools, hospitals, and government buildings that demand compact, high-performance substations.

Institutional Campuses

Product Advantages

Rapid Installation

Prefabricated modular design cuts on-site construction time and reduces costs.

Enhanced Safety

Integrated automation and robust construction ensure reliable, secure operation.

Energy Efficiency

Optimized design minimizes losses and maintenance, resulting in lower long-term operating expenses.

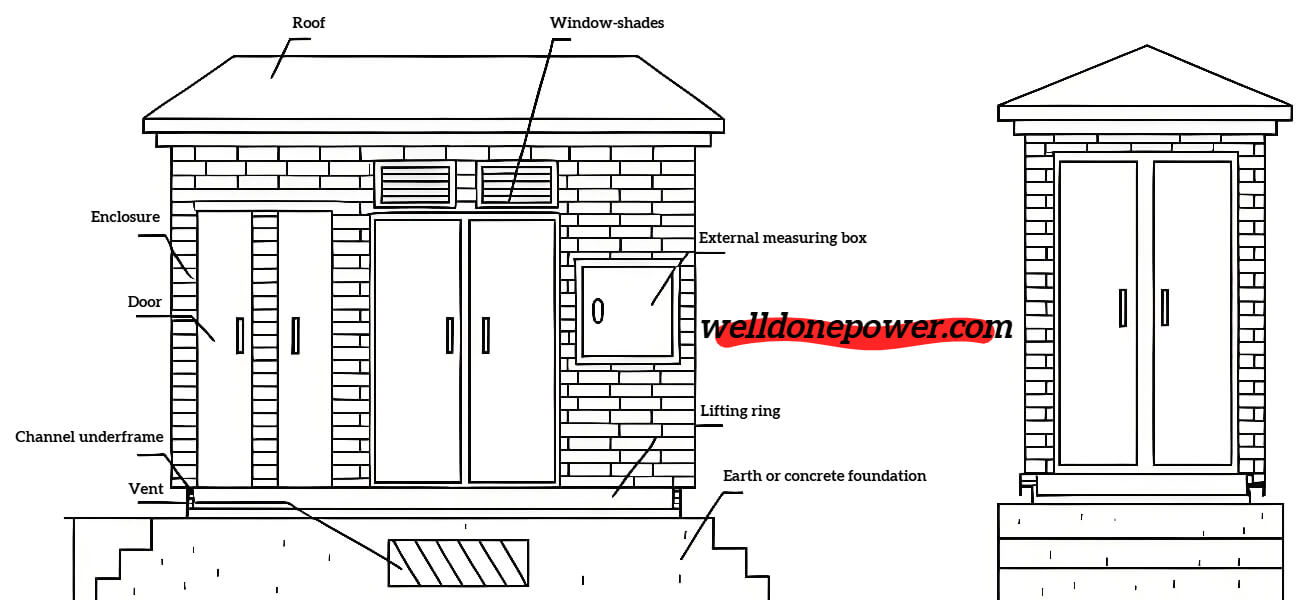

WellDone Prefabricated Substation Structure Diagram

FAQ

What range of Prefabricated Compact Substation products do you offer and which standards do they meet?

We specialize in the manufacturing of a comprehensive range of Prefabricated Compact Substations, including oil-immersed and dry-type variations, as well as power, distribution, and substation-specific models. Our technical team, with over 20 years of industry experience, ensures all designs meet international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our Prefabricated Compact Substations are UL, cUL, and CSA certified, guaranteeing safety, performance, and reliability across global markets.
How do you ensure the quality and reliability of your Prefabricated Compact Substations?

Quality and reliability are at the heart of our production process. Every Prefabricated Compact Substation undergoes stringent quality control measures, from raw material selection to final testing. We back each unit with a minimum 24-month warranty, offering peace of mind for our clients. This rigorous approach has earned us the trust of global customers and industry leaders alike.
What are your production lead times, customization options, and global market reach?

For standard Prefabricated Compact Substations, our production lead time typically ranges from 10 to 25 days. We also offer extensive OEM/ODM services for tailored solutions, allowing us to meet specific project requirements. Our packaging solutions are customizable to suit customer needs. With a robust export network, our Prefabricated Compact Substations are delivered worldwide, including to North America, Europe, South America, Australia, Asia, and Africa, with successful collaborations with prestigious global brands.

For further inquiries or personalized support, feel free to contact us via email or WhatsApp.
