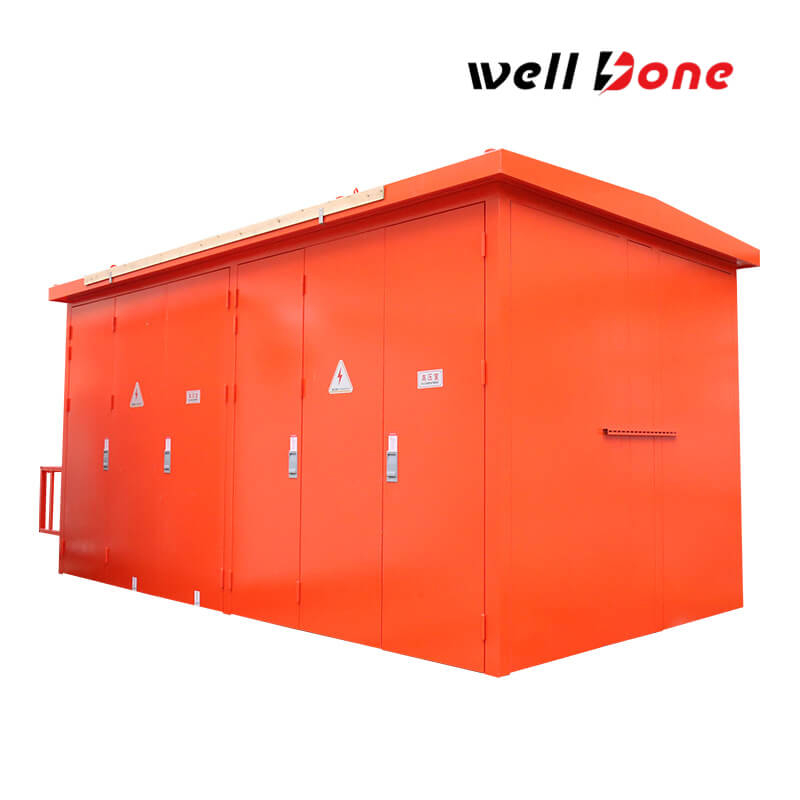

11KV 1600KVA Prefabricated Compact Substation

11KV 1600KVA Prefabricated Compact Substation

The 11KV 1600KVA Prefabricated Compact Substation is an innovative power distribution solution that integrates high-voltage switchgear, distribution transformers, and low-voltage panels into a single, compact unit. Designed for flexibility, it supports both ring network and terminal configurations, making it suitable for various applications, including urban grid enhancements, industrial facilities, and renewable energy integrations. Its robust construction ensures durability, while its compact design allows for easy installation in space-constrained environments. By incorporating advanced digital controls and safety features, the YBW substation offers reliable and efficient performance, meeting the evolving demands of modern electrical networks.

Quantity:
Availability:





Inquire Add to Basket

Product Features

The 11KV 1600KVA Prefabricated Compact Substation seamlessly integrates cutting-edge exterior cladding, a robust foundation, precision-engineered access panels, adaptive cooling solutions, and a plug-and-play assembly framework to deliver unparalleled efficiency and reliability in modern power distribution systems.

1. Substation Exterior Wall:

High-performance composite panels provide a durable, weather-resistant surface with efficient heat dissipation.

2. Substation Base:
Reinforced concrete with advanced anchoring ensures superior load distribution and long-term stability.

3. Metal Door Frame:
Stainless steel construction with enhanced sealing guarantees secure access and protection against dust and moisture.

4. Ventilation:
Energy-efficient, sensor-controlled fans maintain optimal temperature control for reliable operation.

5. Installation Method:
Modular, snap-fit design allows for rapid, secure on-site assembly, reducing labor costs and setup time.

Get a Quote

Product Specifications

Primary Voltage

11kV – Ensures high-voltage input capability for demanding power networks

Secondary Voltage

0.4kV – Provides a stable, low-voltage output for safe distribution

Size

6000 – Optimized dimensions for a compact footprint that simplifies site installation

Material

Brass – High-quality brass components deliver enhanced durability and excellent corrosion resistance

Frequency

50/60Hz – Compatible with global power grid requirements, ensuring stable operation

Operating Temperature

40°C to +180°C – Designed to maintain performance under extreme thermal conditions

Cooling Method

ONAN (Oil Natural Air Natural) – Employs a reliable passive cooling system to regulate temperature efficiently

Certification

ISO, CCC, CTQC – Meets strict international quality and safety standards

Standard

Conforms to IEC ANSI and IEEE specifications

Protection Level

IP30/IP32/IP40/IP65/IP66 – Offers multiple ingress protection options for versatile environmental adaptability

Product Applications

Economy is more affordable

Ideal for upgrading densely populated city substations with limited installation space.

Urban Grid Enhancements
Provides reliable and efficient power distribution for manufacturing plants and process facilities.

Industrial Complexes
Seamlessly connects distributed solar and wind installations to the main grid.

Renewable Energy Integration
Powers essential facilities like hospitals, data centers, and government installations requiring high reliability.

Critical Infrastructure

Product Advantages

Streamlined Installation

The modular, prefabricated design significantly reduces on-site setup time and costs.

Enhanced Operational Reliability

Robust construction and integrated safety features ensure consistent, trouble-free performance.

Superior Energy Efficiency

Optimized design minimizes energy losses, reducing operational expenses over the system’s lifetime.

WellDone Prefabricated Substation Structure Diagram
