35KV 2400KVA Prefabricated Compact Substation

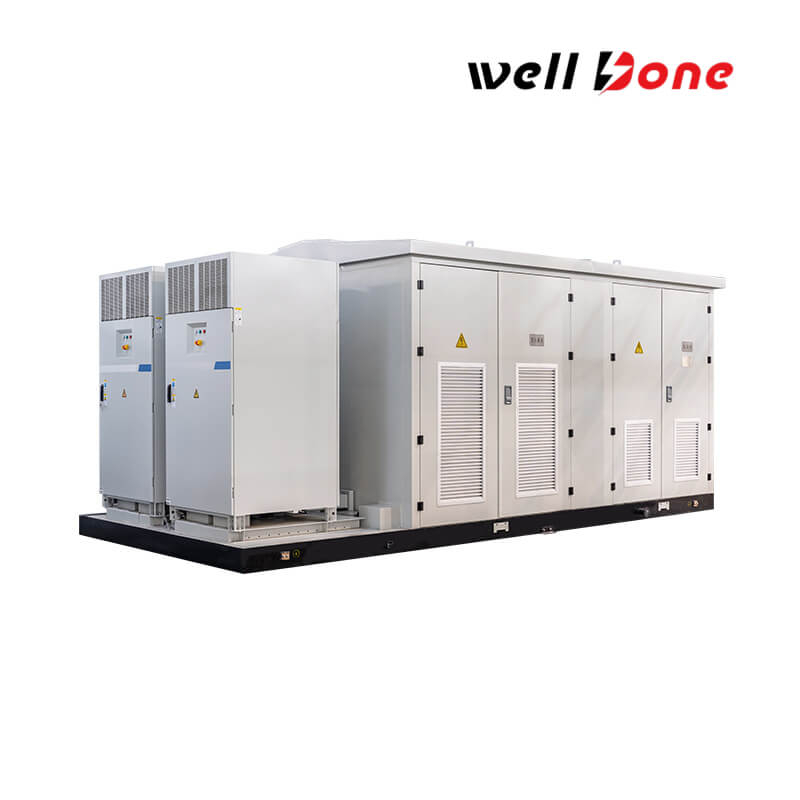

35KV 2400KVA Prefabricated Compact Substation

The 35KV 2400KVA Prefabricated Compact Substation is a cutting-edge power distribution solution that integrates high-voltage switchgear, distribution transformers, and low-voltage panels into a single, compact unit, designed for three-phase AC systems with a rated voltage of 35KV. This substation is ideal for various applications, including factories, mines, oil fields, ports, airports, urban public buildings, highways, and underground facilities. Its robust construction ensures durability, while its compact design allows for easy installation in space-constrained environments. Incorporating advanced digital controls and safety features, the ZBW substation delivers reliable and efficient performance, meeting the evolving demands of modern electrical networks.

Quantity:
Availability:





Inquire Add to Basket

Product Features

The 35KV 2400KVA Prefabricated Compact Substation combines advanced polymer composite exteriors, precision-engineered foundations, and eco-friendly ventilation systems to ensure efficient energy distribution and reliable performance.

1. Substation Exterior Wall:
Engineered with high-grade polymer composite panels that offer robust weather protection and superior insulation, reducing thermal gain and enhancing energy efficiency.

2. Substation Base:
Features a precision-cast, high-strength concrete foundation integrated with vibration-damping technology for exceptional stability and extended service life.

3. Metal Door Frame:
Constructed from heavy-duty, corrosion-resistant metal with advanced sealing features, ensuring secure access and protection against external contaminants.

4. Ventilation:
Incorporates a dynamic, eco-friendly airflow system with sensor-activated controls to maintain a balanced internal climate and prevent overheating.

5. Installation Method:
Designed with a plug-and-play modular architecture that streamlines on-site assembly, reducing installation time and ensuring a secure, reliable setup.

Get a Quote

Product Specifications

High-Voltage Input

35kV for efficient power intake

Low-Voltage Output

0.4kV for stable distribution

Optimized Footprint

Compact design meeting standardized dimensional criteria (size reference: 6000)

Robust Construction

Premium brass material ensures longevity and resistance to corrosion

Operating Frequency

50/60 Hz to support global grid standards

Thermal Performance

Engineered to maintain stability in a temperature range from 40°C up to 180°C

Cooling Technology

Utilizes ONAN (Oil Natural Air Natural) cooling for effective heat dissipation

Certifications

ISO, CCC, and CTQC certified for quality and safety

Standards Compliance

Conforms to IEC ANSI and IEEE specifications

Protection Level

Multiple IP ratings (IP30, IP32, IP40, IP65, IP66) for enhanced operational reliability

Product Applications

Economy is more affordable

Ideal for retrofitting dense city power networks where space is limited.

Compact Urban Grid Solutions
Provides stable, efficient power for manufacturing lines and process control systems.

Industrial Automation Hubs
Seamlessly integrates solar and wind installations into the main grid.

Distributed Renewable Energy Centers
Delivers uninterrupted power to data centers, hospitals, and public safety facilities.

Mission-Critical Installations

Product Advantages

Rapid Deployment

Modular, pre-assembled design cuts installation time and reduces project costs.

Enhanced Reliability

Robust construction and integrated automation ensure consistent, secure operation under demanding conditions.

Superior Efficiency

Optimized design minimizes energy losses, boosting overall system performance and lowering operating expenses.
