Understanding the Applicable Ranges for Single-Phase vs. Three-Phase Transformers

Introduction

Choosing between single-phase and three-phase transformers is one of the earliest and most important decisions in electrical distribution design. The right choice affects installation cost, reliability, equipment compatibility and long-term operational flexibility. This article explains the practical, commonly used applicable ranges for single-phase and three-phase transformers (power and voltage), clarifies typical use cases, and provides selection and installation guidance that designers and project managers can apply immediately.

Quick summary

• Single-phase transformers: typically used from small VA ratings (a few VA for electronics) up to ~500 kVA in common distribution practice; occasionally seen up to 1–2 MVA in special installations. Usually applied for residential, small commercial and single-line distribution feeders.

• Three-phase transformers: cover the full spectrum from small three-phase loads (~1 kVA) to very large power-station units (100s to 1000+ MVA) and are the standard for utility distribution, industrial plants and large commercial buildings.

Typical power and voltage ranges

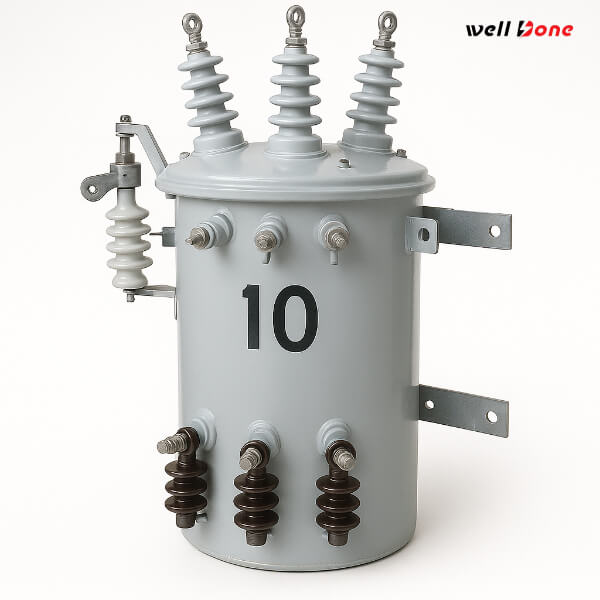

Single-phase

• Power (kVA): 0.005 kVA (5 VA) → ~500 kVA (common).

• Common residential: 1–50 kVA.

• Pole/pad mount distribution: 25–300 kVA.

• Special cases: up to 1–2 MVA, rarely.

• Voltage: low voltage (LV) service levels such as 120/240 V, 230/240 V up to medium distribution voltages (commonly ≤35 kV in some networks).

• Applications: single-family homes, small shops, lighting circuits, single-phase generators, rural single-phase feeders.

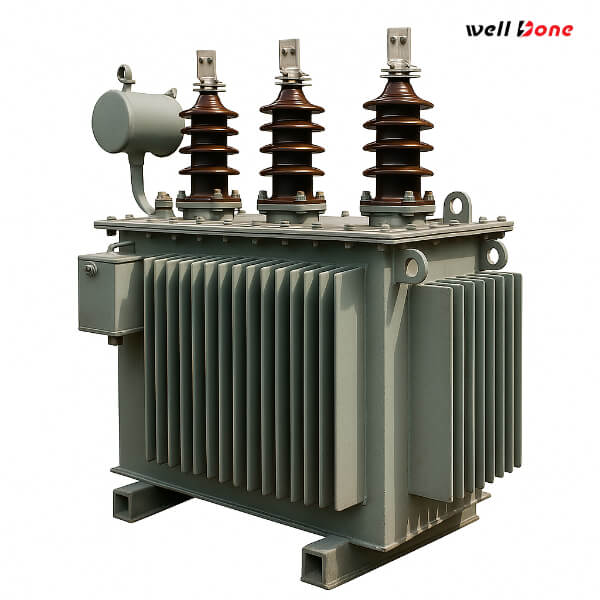

Three-phase

• Power (kVA/MVA): ~1 kVA → 1000+ MVA.

• Small commercial/industrial: 5–500 kVA.

• Distribution substation/pad-mount: 100 kVA → 20 MVA (typical ranges).

• Transmission / power plant: 10 MVA → several hundred MVA, and up to 1000+ MVA for very large units.

• Voltage: LV up to extra-high voltage (EHV) transmission (e.g., 400 V → 765 kV and above).

• Applications: industrial motor loads, commercial buildings with heavy HVAC, utility substations, transmission step-up/step-down.

How to decide: practical selection rules

1. Match the load type

• Predominantly single-phase loads (homes, small retail) → single-phase transformer.

• Balanced three-phase loads or motors/large HVAC → three-phase transformer.

2. Consider total power demand

• If building/site demand exceeds ~50–100 kVA, prefer three-phase to reduce conductor size and improve efficiency.

3. Economics and wiring

• Three-phase delivers more power per conductor and reduces material costs at higher loads. Single-phase is cheaper and simpler for small loads.

4. Future growth & expansion

• If future three-phase loads are likely, install three-phase infrastructure now; adding three-phase later is costly.

5. Utility availability

• Many utilities supply three-phase at MV feeders; single-phase laterals are tapped from three-phase lines — coordinate with the utility’s standard practice.

Design and installation considerations

• Transformer cooling: ONAN, ONAF, OFAF choices scale with kVA and ambient. Higher kVA and continuous heavy loading require forced cooling.

• Tap changers: OLTC (on-load tap changers) common on large three-phase units for voltage regulation; small single-phase units typically use off-load taps.

• Harmonics & inverter-connected loads: For sites with PV inverters, VFDs or battery systems, specify inverter-duty transformers or derate appropriately. Three-phase often handles harmonic currents better in balanced systems.

• Protection & accessories: Three-phase installations commonly include differential/buchholz/gas-relay protection, while single-phase pole transformers rely on simpler fuse or recloser protection.

• Physical footprint and transport: Very large three-phase units need heavy-lift logistics and are often oil-filled; single-phase units are compact and easier to ship/replace.

Practical examples

• Single-family home: 5–25 kVA single-phase pad or pole-mounted transformer, 120/240 V secondary.

• Small commercial shop: 25–75 kVA single-phase or small three-phase service depending on motors and equipment.

• Light industrial plant: 150–1000 kVA three-phase pad-mount or substation transformer with ONAF cooling.

• Utility substation: 50–500 MVA three-phase unit, OLTC, OFAF or forced oil cooling depending on duty.

Pros and cons

• Single-phase

• Pros: lower upfront cost for small loads, simpler installation.

• Cons: inefficient for high power, cannot drive three-phase motors without phase converters.

• Three-phase

• Pros: efficient power delivery at scale, natural for motor loads, lower conductor material per kW.

• Cons: higher complexity and cost for small installations, larger equipment footprint.

Conclusion

Single-phase transformers are economical and practical for modest, predominantly single-phase loads and remain the default for residential supply. Three-phase transformers are the backbone of industrial and utility power — suitable for almost any medium to large power requirement and indispensable when motors and balanced loads are present. Use the simple heuristics above (load type, total kVA, future growth, utility practice) to choose the right topology, and consult detailed load studies for final sizing when project constraints are tight.
