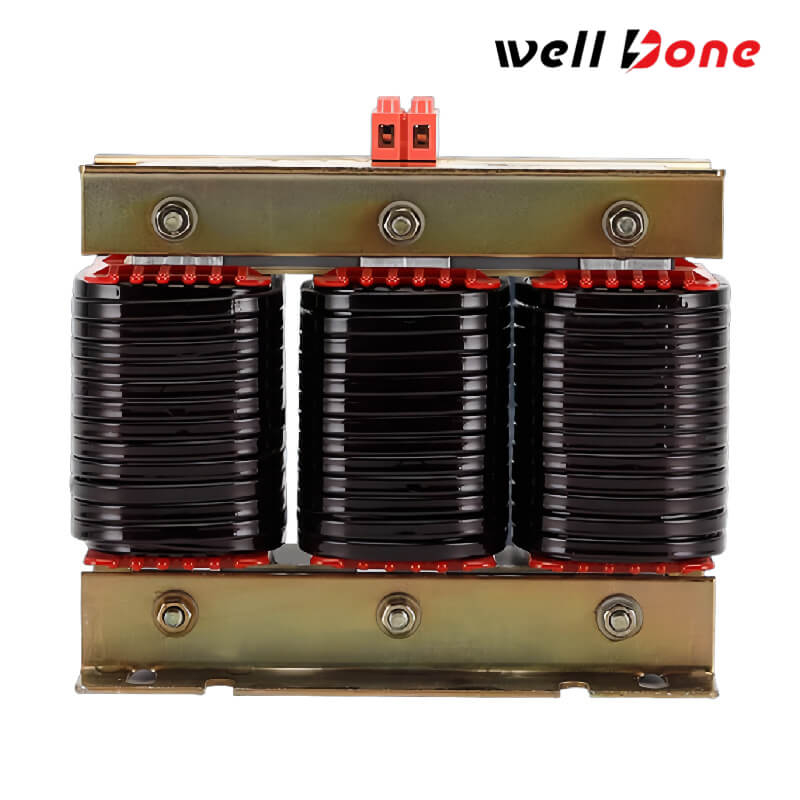

Output Reactor

The Output Reactor is a highly engineered solution designed to optimize power delivery by minimizing harmonic distortion and stabilizing voltage in both high and low voltage systems. Its advanced, oil-free construction ensures precise output control and reliable, maintenance-free performance, making it ideal for critical industrial applications. By effectively reducing voltage fluctuations and electrical disturbances, the Output Reactor guarantees smooth, uninterrupted operation of sensitive equipment such as variable frequency drives (VFDs) and inverters. This powerful device enhances overall power quality, providing protection against harmful harmonics and ensuring system stability in demanding environments.

Quantity:
Availability:





Inquire Add to Basket

Product Components

Winding (Coil)
High-Frequency Design
Utilizes Litz wire or multi-stranded twisted conductors to minimize high-frequency eddy current losses.
Winding Method
Designed with multi-layer segmented winding or honeycomb structure to optimize distributed capacitance and inductance characteristics.
Insulation Treatment
Impregnated with epoxy resin or wrapped with polyimide film to enhance dielectric strength and thermal resistance (e.g., Class H or Class C insulation).

Magnetic Core (or Coreless Design)
Ferrite Core
Used in high-frequency filter output reactors to suppress harmonics at specific frequency bands (e.g., IGBT switching frequencies).
Air-Core Design
Coreless construction relies on self-inductance to prevent magnetic saturation, making it suitable for broadband suppression applications (e.g., dv/dt filtering).

Insulation and Shielding Structure
Interlayer Insulation
Uses mica tape or polyester film to isolate winding turns and reduce partial discharge risks.
Electromagnetic Shielding
Windings are wrapped with copper foil or aluminum casing to minimize electromagnetic interference (EMI/RFI).

Cooling System
Natural Air Cooling
Open-winding design or cooling fins to enhance convection heat dissipation.
Forced Air Cooling
High-power models incorporate built-in fans or external air ducts, with temperature rise control ≤50K.

Enclosure and Protection
Metal Enclosure
Constructed from aluminum alloy or galvanized steel plates, providing both mechanical strength and electromagnetic shielding.
Protection Rating
Ranges from IP20 (indoor) to IP55 (outdoor dustproof and waterproof), with some models filled with silicone gel for vibration resistance.

Connection Terminals
Low-Inductance Design
Features short-path copper busbars or bolt terminals to minimize parasitic inductance and improve high-frequency performance.
Insulated Bushings
High-voltage models use ceramic or silicone rubber bushings to isolate ground potential.

Monitoring and Protection (Optional)
Temperature Sensors
Real-time monitoring of winding temperature with system alarm linkage.
Overvoltage Protection
Integrated RC snubber circuits or varistors to absorb voltage spikes.

Get a Quote

Key Differences

Feature	Output Reactor	Input Reactor
Application Location	Output Terminal of Inverter/Converter	Power Supply Input
Core Function	Suppress dv/dt, Motor Protection, EMI Filtering	Limit Harmonics, Surge Currents, Improve Power Factor
Frequency Range	High Frequency (kHz-MHz Switching Noise)	Mid to Low Frequency (50Hz to Several kHz Harmonics)
Winding Design	Litz Wire, Multi-layer Segment Winding	Standard Stranded Wire or Flat Copper Wire
Shielding Requirements	High (Must Meet Strict EMC Standards)	Medium to Low (Optional Shielding)
Typical Applications	Servo Drives, Electric Vehicle Motor Control	Industrial Inverters, UPS Input Filtering

Product Applications

Economy is more affordable

Enhances power quality and reduces voltage fluctuations in production lines and heavy machinery.

Industrial Manufacturing Plants
Optimizes reactive power and minimizes harmonics from wind and solar systems.

Renewable Energy Installations
Delivers stable voltage regulation and filtering for modern urban and rural grids.

Utility Substation Upgrades
Ensures clean, interference-free power essential for sensitive digital operations.

Telecommunications & Data Centers

Product Advantages

Superior Power Conditioning

Achieves outstanding voltage stability and significant reduction in harmonic distortion.

Minimal Upkeep

An oil-free, robust design that minimizes maintenance requirements and operational downtime.

Proven Durability

Constructed with high-quality materials to withstand harsh conditions, ensuring continuous, reliable performance.
