CSP vs Conventional Transformer: Choosing the Right Solution for Modern Power Distribution

Introduction

Transformers are the backbone of electrical distribution, enabling efficient energy transfer across networks. Among the most widely used designs are Conventional Transformers and CSP (Completely Self-Protected) Transformers. While both play a critical role in delivering safe and reliable power, they differ significantly in structure, performance, and operating costs. Understanding these differences is essential for utilities, industries, and engineers who want to balance efficiency, reliability, and cost-effectiveness.

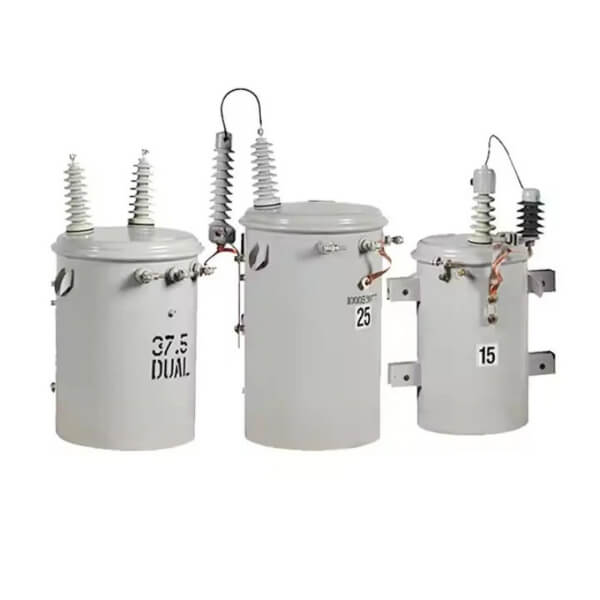

What Is a CSP Transformer?

CSP transformer, also known as a self-protected transformer, is a pole-mounted distribution unit that integrates built-in protection features. Unlike conventional models that rely on external devices for overload and surge protection, a CSP transformer contains its own fuses, breakers, and surge arresters inside the tank.

This design eliminates the need for additional external safety equipment, streamlining installation and reducing costs. CSP transformers are particularly valued for their ability to protect themselves from faults, respond to overloads, and ensure system continuity.

Core Features of CSP Transformers

• Integrated primary protective link and surge arrester

• Built-in secondary circuit breaker with reset mechanism

• Visual and audible fault indication

• Compact, pole-mounted design for simplified deployment

• Enhanced overload handling capacity

• Automatic disconnection from the grid in case of malfunction

By combining protective devices directly into the unit, CSP transformers not only reduce maintenance needs but also improve the overall resilience of distribution networks.

What Is a Conventional Transformer?

conventional transformer is the more traditional design, consisting of two separate windings (primary and secondary) wrapped around a laminated iron core. Its primary purpose is to step up or step down voltage levels using electromagnetic induction.

Unlike CSP transformers, conventional models require external protective equipment, such as circuit breakers and surge arresters, to safeguard against faults. They are widely used across residential, commercial, and industrial applications due to their simplicity, reliability, and cost-effectiveness.

Key Characteristics of Conventional Transformers

• Primary and secondary windings for voltage transformation

• Dependence on external devices for fault protection

• Larger size and heavier construction

• Proven long-term reliability with minimal internal complexity

• Flexible applications in indoor and outdoor distribution systems

While robust and dependable, conventional transformers typically involve higher installation and maintenance costs since protection systems must be designed and added separately.

CSP vs Conventional Transformer: Key Differences

Advantages of CSP Transformers

1. Safety Integration – Built-in devices reduce risk of fire, explosion, or environmental damage.

2. Simplified Maintenance – Fault isolation and reset features make servicing easier and safer.

3. Operational Efficiency – Faster response to load changes, reducing power losses.

4. Space-Saving – Compact design suits urban or space-limited environments.

5. Enhanced Reliability – Automatic disconnection prevents cascading failures in the grid.

Benefits of Conventional Transformers

1. Proven Technology – Decades of field use in diverse applications.

2. Durability – Long lifespan with proper external protection.

3. Voltage Flexibility – Effective in stepping up or stepping down voltage across systems.

4. Cost-Effective – Lower upfront purchase cost.

5. Isolation – Provides strong electrical isolation between circuits.

Which Transformer Is Better?

The decision between CSP and conventional transformers depends on priorities:

• If you require integrated safety, reduced maintenance, and compact installation, a CSP transformer is the superior choice. It offers higher efficiency, faster fault response, and long-term cost savings despite a higher initial investment.

• If your application values lower upfront cost, proven reliability, and flexibility with external protection, a conventional transformer remains a practical option.

Ultimately, CSP transformers are increasingly preferred for modern distribution networks where safety, reliability, and space optimization are critical. However, conventional transformers continue to play a major role in systems that already have established external protective infrastructures.

Conclusion

Both CSP and conventional transformers are vital in electrical distribution, but their design philosophies reflect different priorities. CSP transformers deliver self-contained protection and superior efficiency, making them ideal for forward-looking utilities and compact networks. Conventional transformers, on the other hand, remain versatile and cost-efficient where external safety systems are already in place.
