Power Transformer vs Distribution Transformer — Differences, Design Tips & Examples

Introduction

Transformers convert voltages and move electrical energy through the grid, but not every transformer performs the same job. This article explains the practical differences between power transformers (system-level equipment) and distribution transformers (consumer-facing equipment). It covers functional roles, technical distinctions, specification criteria, maintenance priorities, and real-world examples—written for engineers, project managers, and procurement teams who need precise, actionable guidance.

What is a Power Transformer?

A power transformer is a large, system-level device used at generator terminals, transmission substations, and major interconnection points. Its role is to transfer large blocks of electrical energy between transmission and sub-transmission voltage levels with high efficiency and reliability.

Core characteristics

• Typical ratings range from tens to hundreds (or thousands) of MVA.

• Primary and secondary voltages are usually at transmission or sub-transmission levels (for example, 69 kV, 115 kV, 230 kV, 400 kV).

• Equipped with advanced features: on-load tap changers (OLTC), differential protection, Buchholz relays (for oil-filled units), and multi-sensor diagnostic monitoring.

• Designed for continuous heavy loading, high short-circuit withstand, and grid stability functions such as reactive power support and coordinated protection.

What is a Distribution Transformer?

A distribution transformer steps medium-voltage distribution lines down to the low voltages used by homes, commercial buildings, and light industry. It is the final transformation stage before electricity reaches end users.

Core characteristics

• Ratings commonly range from a few kVA up to several MVA (often under 5–25 MVA for utility distribution).

• Primary voltages are medium-voltage levels (e.g., 11 kV, 22 kV, 33 kV); secondary voltages are low-voltage utilization levels (e.g., 400/230 V three-phase or 240/120 V single-phase).

• Simpler configurations: HV fuses or reclosers, limited or no OLTC, and minimal on-site diagnostics unless part of a smart-grid deployment.

• Common installations include pole-mounted, pad-mounted, and indoor dry-type units chosen by environment and serviceability needs.

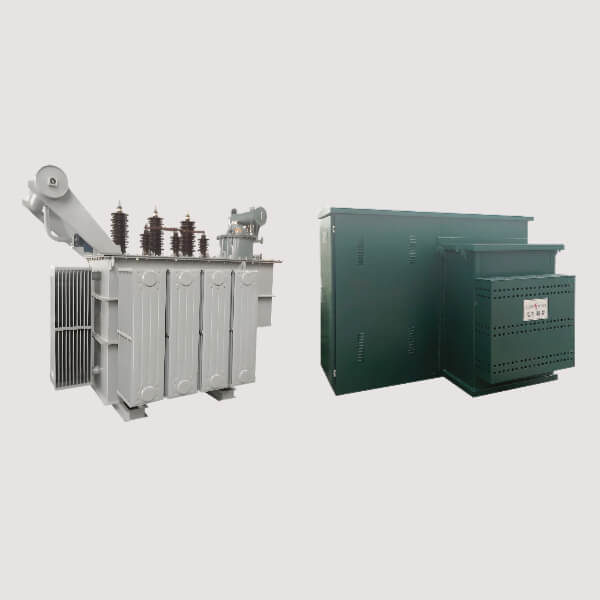

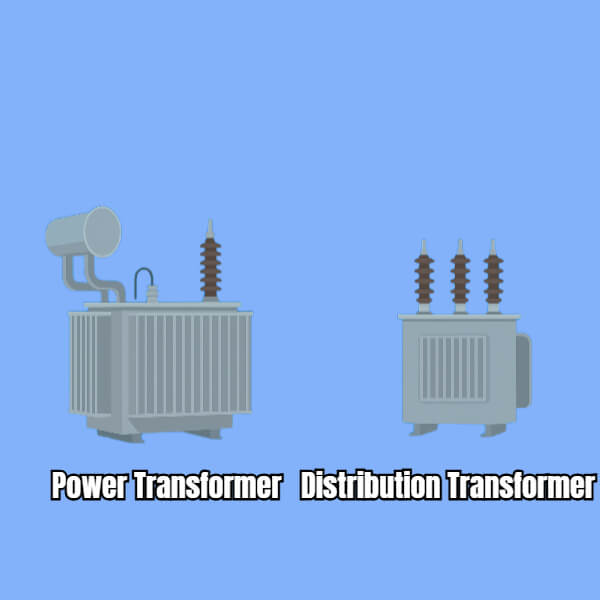

Side-by-Side Technical Comparison

• Scale & rating

• Power: tens to hundreds (or more) MVA.

• Distribution: kVA to a few MVA.

• Voltage classes

• Power: transmission/sub-transmission (HV).

• Distribution: medium-voltage (MV) primary → low-voltage (LV) secondary.

• Cooling & mechanical design

• Power: large oil-immersed tanks with conservator, breather, and staged cooling (ONAN, ONAF, OFWF).

• Distribution: sealed oil tanks or dry-type enclosures; natural air cooling is common.

• Tap changers & regulation

• Power: OLTCs commonly fitted for on-load voltage regulation.

• Distribution: typically off-load tap settings or fixed ratio; OLTCs rare except in specialized feeders.

• Protection & monitoring

• Power: full-scale schemes—differential protection, neutral ground protection, DGA, SCADA/RTU integration.

• Distribution: HV fuses, surge arresters, simple temperature gauges; remote sensing increasingly used for asset management.

• Impedance & system behavior

• Power: impedance optimized for fault coordination and grid stability.

• Distribution: impedance chosen to limit fault currents and control customer voltage drop.

• Maintenance

• Power: periodic oil sampling, dissolved gas analysis (DGA), thermography, tap-changer servicing.

• Distribution: visual inspections, oil checks for oil-filled units, and fast swap/replacement logistics.

Specification Checklist — What to Consider

1. Load profile and future growth

• Model peak demand, daily diversity, fault inrush, and projected growth. Over-sizing distribution units is costly; under-sizing power transformers risks network constraints.

2. Voltage and vector group

• Match vector group to system grounding and phase relationships to avoid circulating currents and incompatibility.

3. Short-circuit level and impedance selection

• Verify local short-circuit duty and specify percent impedance for coordination with circuit breakers and protective devices.

4. Voltage regulation needs

• If the feeder requires active regulation, select a power transformer with an OLTC and specify range/step size.

5. Cooling and ambient conditions

• Choose ONAN/ONAF/OFWF classes or dry-type based on ambient temperature, altitude, and continuous loading expectations.

6. Site constraints and installation type

• For pole-mounted or compact urban sites choose sealed, low-noise designs; indoor installations often favor dry-type for fire safety.

7. Standards and compliance

• Specify IEC/IEEE/ANSI test and design standards applicable to the project and locality.

8. Monitoring and lifecycle strategy

• Critical power transformers: DGA, continuous temperature and oil-level sensing, remote alarms. Distribution: consider smart sensors if part of an asset management program.

Real-World Examples (Practical Clarity)

• Power Plant GSU (Generator Step-Up): 350 MVA, 15.75 kV / 230 kV, OLTC, redundant cooling pumps, full differential and bus protection.

• Substation Power Transformer: 150 MVA, 230/33 kV, ONAN/ONAF cooling, DGA monitoring, integrated SCADA.

• Pad-Mounted Distribution Transformer: 500 kVA, 11 kV / 0.4 kV, sealed tank, fused HV side, installed in residential/commercial neighborhoods.

• Indoor Dry-Type for Commercial Building: 1000 kVA, 11 kV / 400 V, fire-rated, low-noise for confined spaces.

Maintenance & Failure Impact

• Power transformers are fewer but critical; their failures are less frequent but have major system impacts. Predictive maintenance (DGA, thermal imaging, tap-changer testing) is a priority to avoid wide-area outages.

• Distribution transformers are more numerous and more commonly fail due to exposure, overloads, or lightning. Utilities often prioritize rapid replacement and inventory management to restore service quickly.

Frequently Asked Questions

• Can a distribution transformer be used as a power transformer?
  No. Voltage class, rating, protection, and mechanical design differ significantly; substituting smaller distribution units for power transformers is unsafe and impractical.

• Do all power transformers include OLTCs?
  Many do—particularly those that must regulate system voltages—but some generator step-up transformers operate with fixed taps if system regulation is handled elsewhere.

• Which type fails more often?
  Distribution transformers fail more frequently in absolute numbers because there are many more of them and they are often exposed to weather and distribution stresses. Power transformer failures are rarer but carry higher consequences.

Conclusion

Power transformers manage bulk energy transfer and system stability at transmission voltages; distribution transformers step voltage down to usable levels for customers. Their differences—scale, protection, cooling, tap changers, and maintenance needs—drive distinct specification and operational strategies. Selecting the right transformer requires careful consideration of load dynamics, fault duty, site constraints, and lifecycle planning. Thoughtful engineering at specification stage reduces cost, improves reliability, and simplifies long-term asset management.
