Optimizing Power Distribution with Wye–Wye Transformer Banks: Design, Performance, and Applications

Introduction

In modern power distribution networks, meeting both three‑phase industrial loads and single‑phase residential demands requires versatile transformer configurations. The Wye–Wye transformer bank, with its star‑connected primary and secondary windings, offers a balanced, grounded neutral and modular design ideal for diverse applications. This article explores its construction, electrical characteristics, grounding methods, operational considerations, and best practices for installation and maintenance.

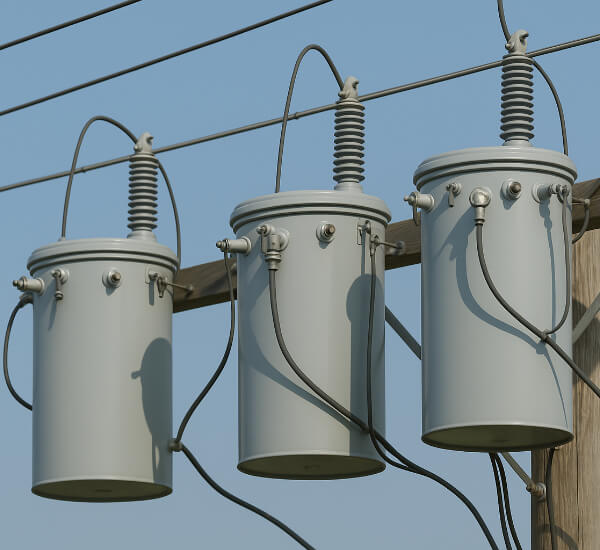

transformer in electric pole

1. Construction and Configuration

A Wye–Wye transformer bank can be realized in two main formats:

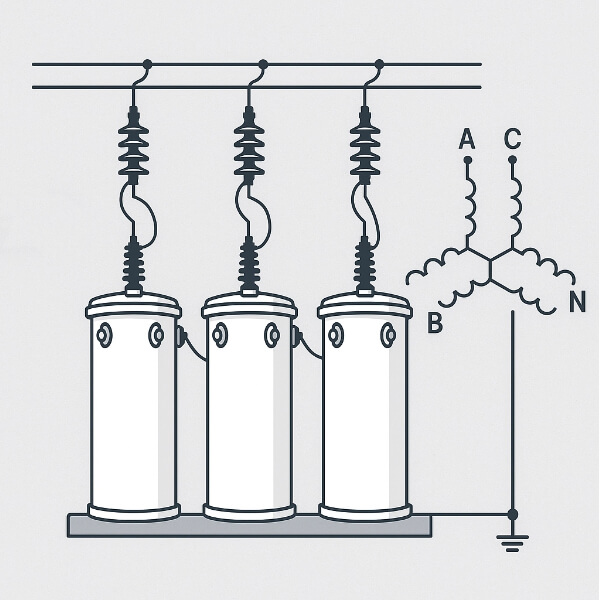

  1. Three Single‑Phase Units (Pole‑Mounted):

    • Three identical oil‑filled transformers mounted on a crossarm.

    • Primary windings connected in a star at a common neutral; secondary windings likewise share a neutral point.

    • The secondary neutral is extended down the pole to supply single‑phase loads.

  2. Integrated Three‑Phase Transformer:

    • One three‑phase shell or core design with internal star‑connected primary and secondary windings.

    • Often used in pad‑mounted applications where three‑phase service is centralized.

In both cases, the star (Wye) connection allows line‑to‑neutral voltages (e.g., 120 V, 277 V) alongside line‑to‑line voltages (e.g., 208 V, 480 V), maximizing load flexibility.


2. Electrical Characteristics

  • Line‑to‑Line vs. Line‑to‑Neutral:

    Line‑to‑Line vs. Line‑to‑Neutral

    For a 480Y/277 V bank:

    • Line‑to‑line = 480 V

    • Line‑to‑neutral = 277 V

  • Impedance and Regulation:
    Typical per‑unit impedance ranges from 4% to 8%, balancing short‑circuit currents with voltage regulation under load.

  • Vector Group Notation:
    Often denoted “Yy0” or “Yyn0,” where “0” indicates zero phase shift and an accessible neutral on both sides.


3. Neutral Grounding and Protection

  • Solid Grounding: Provides a direct connection to earth, ensuring quick fault detection but allowing higher ground‑fault currents.

  • Resistive Grounding: Limits ground‑fault current to protect equipment while still detecting faults.

  • Ungrounded Systems: Rare for Wye–Wye banks due to safety and voltage instability concerns under unbalanced loads.

A properly grounded secondary neutral is crucial for supplying safe single‑phase power and enabling protective relaying (e.g., ground‑fault and overcurrent breakers).


4. Operational Considerations

4.1 Neutral Shift and Unbalanced Loads

Under unbalanced or non‑linear loads, zero‑sequence currents can circulate, causing the neutral point to shift and phase‑to‑neutral voltages to fluctuate. Mitigation strategies include:

  • Installing zig‑zag grounding transformers to stabilize the neutral.

  • Using phase‑balancing controls or harmonic filters.

4.2 Inrush and Switching Transients

Simultaneously energizing both star sides can generate high inrush currents and transient overvoltages. Recommended practices:

  • Energize one side first, then the other with a time delay.

  • Employ pre‐insertion resistors or solid‐state switching to limit peak currents.

pole‑mounted transformer

5. Installation and Maintenance Best Practices

  • Site Preparation: Ensure proper clearances, mounting hardware, and grounding electrodes.

  • Periodic Inspection: Check oil level, dielectric strength tests, and thermographic surveys to detect hotspots.

  • Neutral Connection Verification: Inspect grounding bonds and resistor settings (if used) to prevent floating neutrals.

  • Bushing and Tap Changer Service: Lubricate, tighten, and calibrate on‑load tap changers per manufacturer intervals.

Routine maintenance prolongs transformer life, maintains efficiency, and prevents unplanned outages.


6. Typical Applications

  • Rural and Suburban Distribution: Delivers mixed three‑phase motor power and single‑phase residential loads (lights, appliances).

  • Commercial Complexes: Supports HVAC units, elevators, and office receptacles from a single transformer bank.

  • Light Industrial Facilities: Combines three‑phase machinery feeds with control wiring and lighting from the same secondary star neutral.


Conclusion

The Wye–Wye transformer bank remains a cornerstone of flexible power distribution, offering balanced three‑phase delivery and ready single‑phase service through a grounded neutral. Whether deployed as pole‑mounted single‑phase banks or as integrated pad‑mounted units, understanding star connection fundamentals, grounding techniques, and operational best practices ensures reliable, efficient performance across a wide range of commercial, residential, and light industrial settings.
