Comprehensive Guide to Power Transformer Maintenance for Optimal Performance

Introduction

Power transformers are the cornerstones of electrical distribution, converting voltages and ensuring seamless energy flow across grids. Proper maintenance is essential—not only to maximize operational lifespan and efficiency but also to uphold safety standards and prevent costly unplanned outages. This guide presents a structured, step-by-step approach to transformer upkeep, combining routine inspections, critical testing procedures, and fault-diagnosis strategies.

Why Regular Transformer Maintenance Matters

• Reliability: Prevents unexpected failures that lead to downtime and grid instability.

• Safety: Identifies emerging hazards—such as oil leaks or overheating—before they escalate.

• Cost Efficiency: Early detection of minor issues reduces repair costs and extends asset life.

• Compliance: Meets industry standards and regulatory requirements for electrical equipment.

Maintenance Schedule Overview

Daily Maintenance Tasks

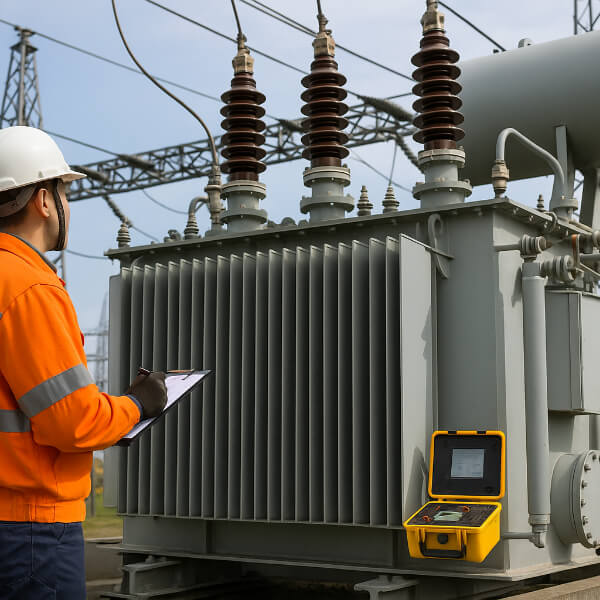

1. Visual Inspection

• Look for signs of oil seepage around gaskets, bushings, and valves.

• Ensure all indicator lights, gauges, and alarms are functional.

2. Oil Level Check

• Observe the conservator gauge; top up to the recommended level if needed.

• Verify dielectric-oil color and clarity through sight glass.

3. Breather and Ventilation

• Confirm silicone-gel breathers are dry and free of dust.

• Replace gel packs only when color indicators show saturation.

4. Temperature Monitoring

• Record winding and oil temperatures.

• Investigate any abrupt increases beyond normal operating ranges.

Monthly Maintenance Tasks

1. Mechanical Integrity

• Tighten terminal connections and busbar joints.

• Exercise tap changers through their full range to prevent sticking.

2. Electrical Testing

• Perform insulation-resistance (Megger) tests on windings.

• Log partial discharge readings to detect early insulation breakdown.

3. Cleaning

• Wipe external surfaces, removing dust and debris that impair heat dissipation.

• Check cooling fans or radiators for obstructions and clean as necessary.

4. Performance Logging

• Compare monthly load profiles, temperatures, and oil levels against historical norms.

• Flag gradual drifts that may indicate developing issues.

Annual Maintenance Tasks

1. Fluid Analysis

• Extract oil samples for dissolved gas analysis (DGA), moisture content (PPM), and breakdown voltage (BDV).

• Replace or regenerate oil if gas levels or water content exceed recommended thresholds.

2. Detailed Electrical Tests

• Conduct turns-ratio and winding-resistance tests to verify internal integrity.

• Carry out power-factor (tan δ) measurements to assess insulation health.

3. Internal Inspection and Cleaning

• Drain the transformer and open covers to clean core and coil surfaces.

• Inspect for corrosion, hot spots, or mechanical deformation.

4. Relay and Protection System Check

• Test Buchholz relay, pressure-relief devices, and temperature relays for correct trip settings.

• Calibrate alarms, circuit breakers, and interlocks.

5. Earthing System Verification

• Measure ground-connection resistance to ensure it remains below 1 Ω (or as specified).

• Inspect earth mats and bonding conductors for continuity and corrosion.

Essential Transformer Testing Procedures

Troubleshooting Common Transformer Faults

1. Oil Leaks

• Cause: Worn seals, gasket failure, or corrosion.

• Action: Tighten fittings; replace deteriorated gaskets; apply compatible sealant.

2. Winding Overheating

• Cause: High load, cooling failure, or insulation breakdown.

• Action: Reduce load temporarily; inspect and clean radiators; perform DGA to rule out hotspots.

3. Unusual Vibrations or Noise

• Cause: Loose core clamps, degraded insulation, or internal arcing.

• Action: Shut down for internal inspection; tighten mechanical components; examine core laminations.

4. Smoke or Burning Odor

• Cause: Electrical arcing, insulation failure, or oil contamination.

• Action: Immediate shutdown; locate and isolate fault; perform insulation and moisture tests.

5. Erratic Relay Operation

• Cause: Dust accumulation, corrosion, or incorrect calibration.

• Action: Clean relay housing; recalibrate trip settings; test in situ.

Best Practices for Extending Transformer Lifespan

• Adopt Predictive Maintenance: Leverage DGA trends, thermal imaging, and acoustic sensors to forecast issues.

• Automate Data Collection: Integrate online monitoring systems for real‑time temperature, load, and moisture readings.

• Standardize Procedures: Use checklists to ensure consistency across teams and shifts.

• Provide Ongoing Training: Keep technicians up to date on the latest testing standards and safety protocols.

• Plan for Redundancy: Where possible, install parallel transformers or bypass arrangements to allow uninterrupted service during maintenance.

Conclusion

A proactive transformer maintenance program—encompassing regular inspections, a robust testing regimen, and methodical troubleshooting—safeguards your investment, enhances safety, and ensures dependable power delivery. Implementing these best practices will help you detect minor issues early, reduce unplanned outages, and extend the operational life of your transformers.
