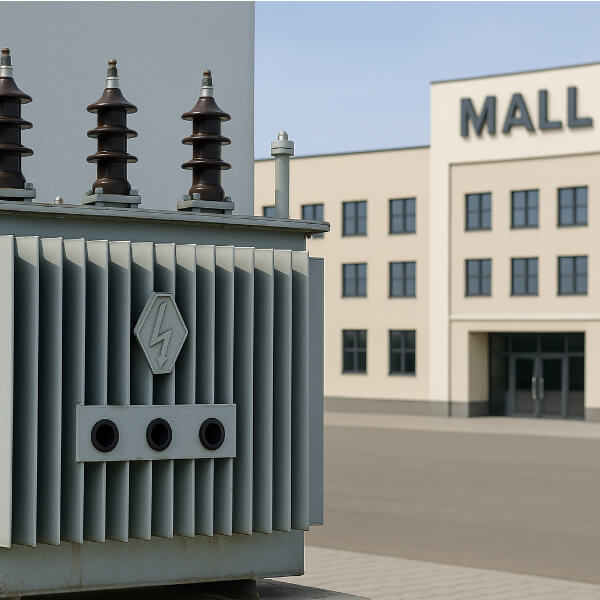

How to Select the Ideal Power Transformer for a Shopping Mall: Comprehensive Guide

Selecting the appropriate power transformer for a shopping mall is a critical decision that affects reliability, safety, energy efficiency, and total cost of ownership. With diverse loads from lighting, HVAC, escalators, elevators, signage, and retail tenant equipment, a thoughtfully chosen transformer ensures stable voltage, minimizes downtime, and optimizes operational expenses. This guide walks you through each decision point—load calculation, transformer type, technical specifications, protection strategies, installation best practices, and maintenance planning—to help you make an informed choice tailored to the demanding environment of a retail complex.

1. Conducting a Detailed Load Analysis

1. Catalog Your Loads

• Lighting: general, accent, emergency

• Climate Control: centralized chillers, air-handlers

• Vertical Transport: elevators, escalators (high inrush currents)

• Retail Tenant Needs: point-of-sale systems, digital signage, specialty equipment

• Common Areas: security systems, back-of-house utilities, advertising screens

2. Estimate Required Capacity

• Sum the nameplate power of each load group.

• Apply a diversity factor (typically 0.8–0.9) to account for non‑simultaneous use.

• Formula:






3. Plan for Growth and Peak Demand

• Add 15–20% spare capacity for tenant build‑outs or future technology additions.

• Ensure a short‑time overload rating of 1.2–1.5× nominal current for handling seasonal or promotional‑event peaks safely for 1–2 hours.

2. Comparing Transformer Types

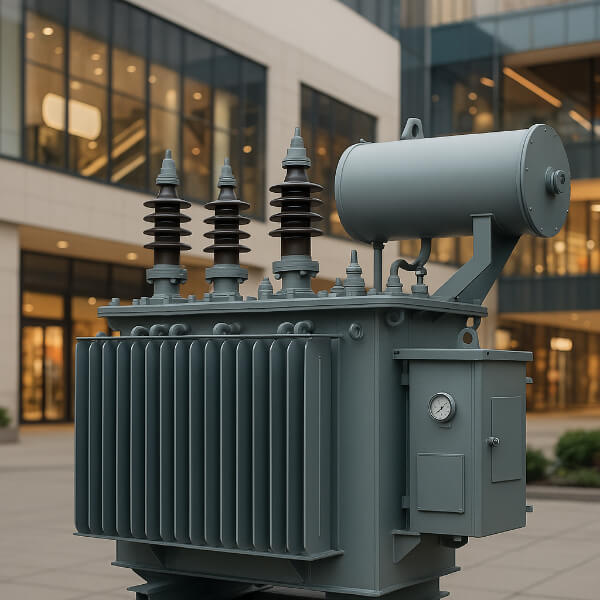

2.1 Oil‑Immersed Transformers

• Pros:

• Superior heat dissipation—handles continuous heavy loads.

• Lower cost per kVA for large ratings (≥1 000 kVA).

• Cons:

• Requires oil-containment and fire‑rated rooms.

• Spill risk and environmental considerations.

2.2 Dry‑Type Transformers

• Pros:

• No flammable oil—safer for indoor installations.

• Minimal environmental impact; easier routine upkeep.

• Cons:

• Limited overload capability; higher audible noise.

• Generally higher capital cost for equivalent kVA (practical up to ~2 000 kVA).

3. Cooling Methods and Thermal Classes

• Thermal Class: Aim for F‑Class (155 °C) or higher windings to ensure longevity under fluctuating loads.

4. Key Technical Considerations

1. Impedance (4–8%)

• Balances short‑circuit currents and voltage drop; higher impedance reduces fault currents but can increase voltage regulation demands.

2. Losses

• No‑Load Loss: Choose high‑grade silicon steel cores or amorphous alloys to lower iron losses.

• Load Loss: Specify high‑conductivity copper windings for minimal I⊃2;R losses under heavy loads.

3. Voltage Regulation & Tap‑Changers

• Off‑Circuit Tap‑Changer (OCTC): Manual adjustments when de‑energized.

• On‑Load Tap‑Changer (OLTC): Automatic voltage control under load—essential if incoming supply varies ±5%.

4. Acoustic Noise

• Dry‑type units should meet ≤55 dB(A) at 1 m; consider acoustic enclosures or vibration‑isolating mounts in tenant‑dense areas.

5. Protection, Monitoring & Safety

• Relays & Circuit Breakers:

• Differential protection, overcurrent, overload trips.

• Oil‑Type-Specific:

• Buchholz relay for gas‑in‑oil detection, oil temperature gauge, level switch.

• Dry‑Type-Specific:

• Thermal sensors embedded in windings, partial‑discharge detectors.

• Online Asset Monitoring:

• Dissolved Gas Analysis (DGA), temperature & humidity logging, tap‑position remote readout.

• Grounding & Surge Protection:

• Comply with local electrical codes—solid or resistance‑grounded neutrals, lightning arresters, HV/LV surge arresters.

6. Installation Best Practices

• Room Layout:

• Maintain clearances (min. 0.5 m around dry‑type).

• Oil‑immersed must have leak pans and fire‑rated enclosures.

• Ventilation & Cooling:

• Ensure forced‑air fans have unobstructed intake and exhaust paths.

• Accessibility:

• Provide safe access for maintenance, testing ports, and proper lighting.

7. Lifecycle Planning & Maintenance

• Routine Inspections:

• Dry‑type: annual visual checks, torque testing of connections.

• Oil‑immersed: bi‑annual oil analysis (dielectric strength, moisture, dissolved gases), oil filtration or replacement every 5 years.

• Energy‑Saving Strategies:

• Zone isolation: de‑energize lightly loaded sections during off‑hours.

• Load profiling: schedule heavy equipment starts to avoid coincident peaks.

• Vendor Selection & Compliance:

• Choose manufacturers certified to IEC 60076 or IEEE C57.12, with strong local service networks and documented performance testing.

By systematically assessing load profiles, sizing for growth, choosing between oil‑immersed and dry‑type designs, specifying low‑loss materials, and implementing robust protection and monitoring systems, you can secure a transformer solution that delivers reliable power, minimizes energy costs, and adheres to safety regulations. Proper installation, regular maintenance, and collaboration with certified OEMs will ensure your shopping mall’s electrical backbone remains efficient, resilient, and future‑ready.
