Power Transformer Manufacturers: Complete Buying Guide

Power transformers are central to the reliable delivery of high-voltage energy across grids, industrial sites, and renewable-energy installations. Choosing the right manufacturer is as important as choosing the right transformer model: the manufacturer determines build quality, compliance, delivery reliability and the long-term cost of ownership. This guide walks you through what matters most — from technical parameters and factory capabilities to testing, warranties, and a step-by-step procurement checklist that reduces risk and speeds up ROI.

1. Why manufacturer choice matters

A transformer is a long-life capital asset. The initial purchase price is a small fraction of total lifecycle cost when you include efficiency losses, maintenance, oil handling, spare parts, and downtime risk. Selecting an established manufacturer with strong engineering support, rigorous factory testing and a transparent service network protects your project schedule and operational budget. Key manufacturer-driven factors that affect lifecycle performance:

• Design discipline: core and winding geometry, insulation grading, short-circuit withstand margin.

• Material quality: copper vs. aluminum conductors, paper/pressboard and oil quality, tank steel thickness and welding practice.

• Testing rigor: routine and type tests, dielectric and short-circuit testing, factory acceptance testing (FAT) protocols.

• Manufacturing capacity & lead time: automation, workload, and logistics influence delivery and damage risk.

• After-sales support: spares availability, firmware/support for digital monitors, technicians for commissioning and on-site testing.

2. Core technical parameters to specify

When you prepare an RFQ or technical specification, include the parameters below to make supplier responses comparable.

Essential electrical specs

• Rated primary/secondary voltage (e.g., 115 kV / 13.8 kV) — dictates insulation and bushing selection.

• Rated power (MVA) — choose to meet steady-state and short-term overloads.

• Impedance (%) — affects fault current sharing and short-circuit forces.

• Vector group / connection (e.g., YNd11) — necessary for system compatibility and grounding.

Thermal and cooling

• Cooling class (ONAN, ONAF, OFAF, OFWF) — influences continuous rating and fan/pump arrangements.

• Temperature rise limits (e.g., 55/65 °C) — affects insulation life and rating under load.

Insulation and fluids

• Insulation medium: mineral oil, synthetic ester (biodegradable), or dry resin. Biodegradable fluids reduce environmental risk and ease permitting in sensitive sites.

• BIL (basic impulse level) — sets lightning surge withstand level for clearances and bushings.

Tap changers & accessories

• OLTC vs. off-load tap changer, tap step size and range — critical where voltage regulation under load is needed.

• Protection & monitoring: Buchholz relay, pressure relief, winding temperature sensors, gas accumulation relays, and digital monitors for on-line diagnostics.

Mechanical and seismic

• Tank design & lifting points, conservator or sealed tank, pressure relief valves.

• Seismic qualification if installed in earthquake-prone zones.

3. Product types at a glance

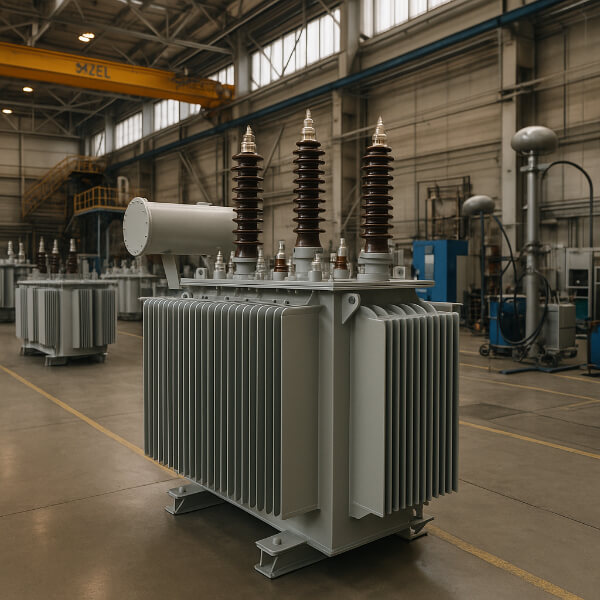

• Oil-immersed power transformers: Best for high MVA and outdoor installations; high thermal margin and easy cooling upgrades.

• Dry-type power transformers: Used where fire, environmental risk, or indoor placement restrict oil use; typically lower MVA ratings and different maintenance profiles.

4. Compliance, testing and quality control

Require manufacturers to include documented evidence of their QA process and product testing:

• Certifications: ISO 9001 quality management, and compliance with IEC 60076 and IEEE C57-series for design and testing.

• Factory tests: Routine electrical tests (winding resistance, turns ratio, excitation current), dielectric tests, and short-circuit tests when applicable.

• Type tests: Performed on representative units — impulse, temperature rise, noise, and short-circuit tests.

• FAT (Factory Acceptance Test): Witnessed by buyer or third-party inspector; include checklist and acceptance criteria.

• Traceability: Materials and critical components should be traceable to batch/lot numbers.

5. Manufacturer capabilities and red flags

What to verify in the factory visit or due diligence:

• Clean production flow with separate core assembly, winding, vacuum drying and oil filling areas.

• Automated taping and vacuum impregnation equipment (for dry-type or resin-impregnated coils).

• In-house machining and welding for tanks and radiators.

• Independent testing lab or accredited third-party test partner.

• Mature R&D capacity for custom engineering (for special grid codes and renewable projects).

Red flags:

• Unwillingness to allow FAT or provide test reports.

• Vague warranty terms or absence of spare parts list.

• No documented environmental controls for oil handling or no record of transformer failure investigations.

6. Procurement checklist

1. Define system requirements: voltage, MVA, ambient conditions, harmonics, short-circuit MVA at the connection point.

2. Create a detailed specification: include all electrical, mechanical and monitoring requirements. Use the template below.

3. Pre-qualify manufacturers: ask for similar project references, certifications, and test records.

4. Request complete bids: include lead time, FOB/CIF, warranty, spare parts list, and FAT schedule.

5. Review test data & perform FAT: require witnessed tests and acceptance criteria.

6. Inspect packaging & logistics plans: transformer shipping is a common source of site damage.

7. Commissioning & performance acceptance: ensure on-site testing (insulation resistance, ratio, oil dielectric) before energization.

8. After-sales agreement: include service response time, training, and parts lead times.

7. Sample specification checklist

8. Warranty, service and lifecycle support

A strong warranty and service network reduce risk. Typical best practices:

• Minimum warranty: 18–36 months; extendable with maintenance contracts.

• Spare parts list: bushings, tap changer parts, gaskets and LV/HV fuses.

• Performance guarantee: loss limits (no-load and load losses) and sound levels where applicable.

• Remote monitoring: manufacturers who support digital monitoring and analytics can help catch incipient failures early.

9. Common procurement mistakes to avoid

• Accepting unspecified or “typical” losses — always require guaranteed loss figures.

• Skipping FAT or not witnessing key dielectric tests.

• Neglecting logistics and lifting plans — transformers are often damaged in transit.

• Focusing solely on CAPEX and ignoring losses and maintenance costs.

10. Quick decision matrix

Rate suppliers on:

• Technical compliance (30%) — meets all electrical and mechanical specs.

• Testing & QA (20%) — FAT, traceability and lab capability.

• Delivery & logistics (15%) — realistic lead times and transport experience.

• After-sales service (20%) — local support, spares and warranty.

• Price & payment terms (15%) — total cost, not just unit price.

Score and shortlist the top two for negotiation and FAT.

FAQ

How long will a properly maintained power transformer last?
With good maintenance and proper loading, 25–40 years is typical. Insulation aging is the limiting factor.

Is bioderived oil better than mineral oil?
Synthetic or natural esters offer better fire safety and biodegradability but may have different pour point and aging characteristics — choose based on site risk and temperature range.

Should I insist on OLTC for renewable projects?
If your site expects wide voltage swings (e.g., solar farm export), OLTCs with digital control are highly recommended.

Conclusion

Choosing the right power transformer manufacturer reduces operational risk, shortens commissioning time, and lowers lifecycle costs. The ideal partner demonstrates rigorous testing, documented quality control, factory capabilities aligned with your technical needs, and a reliable after-sales network. Use the specification checklist and procurement steps above to make comparisons fair and decisions defensible — and insist on FAT and traceable test records to ensure the product you buy performs in the field as promised.
