Transformer Winding Types and Their Applications Comprehensive Guide

Transformers are essential components in electrical systems, facilitating voltage conversion for efficient power distribution. A critical aspect of transformer design is the winding configuration, which significantly influences performance, efficiency, and thermal management. This guide delves into the various transformer winding types, their structural characteristics, cooling mechanisms, and practical applications.

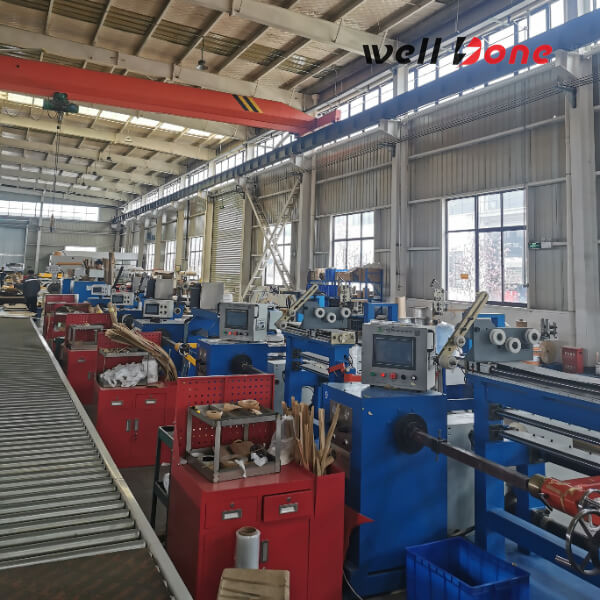

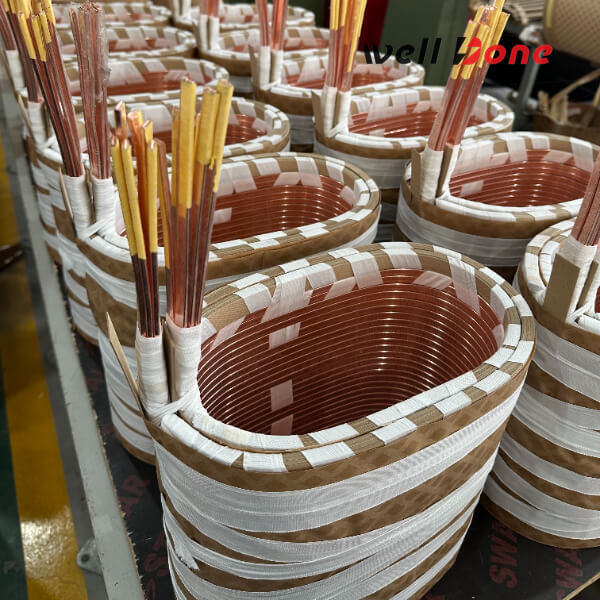

Understanding Transformer Windings

Transformer windings are conductive coils that generate magnetic fields when energized, enabling the transfer of electrical energy between circuits. The winding type affects factors such as:

• Voltage and current handling capacity

• Mechanical strength and structural integrity

• Cooling efficiency

• Manufacturing complexity and cost

Windings are categorized based on their arrangement and the core configuration of the transformer. The two primary core types are:

• Core-type Transformer: Windings surround the magnetic core.

• Shell-type Transformer: Magnetic core surrounds the windings.

Core-Type Transformer Windings

1. Helical Winding

Helical windings consist of multiple parallel conductors wound in a spiral configuration. They are commonly used in low-voltage, high-current applications due to their:

• High current-carrying capacity: Suitable for transformers with current ratings up to 2,000 A.

• Efficient cooling: Axial ducts between turns facilitate oil circulation, enhancing heat dissipation.

• Mechanical robustness: Offers structural strength to withstand operational stresses.

Helical windings are prevalent in transformers ranging from 150 kVA to 30 MVA, operating at voltages between 400 V and 33 kV .

2. Cylindrical Winding

Cylindrical windings are constructed by winding rectangular conductors in concentric layers around the core. They are characterized by:

• Compact design: Suitable for transformers with power ratings up to 6.6 kV.

• Effective cooling: Oil ducts between layers allow for efficient heat removal.

• Ease of maintenance: Simplified structure facilitates inspection and repair.

These windings are commonly used in medium-sized transformers, providing a balance between performance and manufacturability.

3. Disc Winding

Disc windings involve stacking multiple conductor discs in series, with each disc comprising several turns. This configuration offers:

• High voltage handling: Preferred for transformers rated above 25 kV.

• Mechanical strength: Capable of withstanding high mechanical stresses.

• Efficient insulation: Disc design allows for effective insulation between turns.

Disc windings are ideal for high-voltage applications, ensuring reliable performance under demanding conditions .

Shell-Type Transformer Windings

1. Sandwich Winding

In sandwich windings, primary and secondary windings are alternately layered, resembling a sandwich structure. Key advantages include:

• Reduced leakage flux: Magnetic flux is confined within the core, enhancing efficiency.

• Improved insulation: Alternating layers provide robust insulation between windings.

• Enhanced mechanical strength: Suitable for transformers subjected to mechanical stresses.

Sandwich windings are commonly used in high-voltage transformers, offering superior performance and reliability .

Comparative Overview

Conclusion

Selecting the appropriate high performance transformer winding type is crucial for optimizing performance, efficiency, and durability. By understanding the characteristics and applications of various winding configurations, engineers can design transformers that meet specific operational requirements. Whether for low-voltage, high-current applications or high-voltage, mechanically demanding environments, the right winding choice ensures reliable and efficient power transformation.

If you require further information on power transformer design or assistance in selecting the appropriate winding type for your application, feel free to reach out.
