Comprehensive Guide to Transformer Cooling Systems: Methods, Classifications, and Selection Criteria

Transformers are pivotal in electrical power systems, facilitating the efficient transmission and distribution of electricity. However, their operation generates heat due to inherent losses, necessitating effective cooling mechanisms to maintain performance, safety, and longevity. This guide delves into the various transformer cooling methods, their classifications, and factors influencing their selection.

Understanding Transformer Cooling

Transformers operate by converting electrical energy from one voltage level to another. During this process, losses occur in the form of heat within the core and windings. If not adequately managed, this heat can lead to:

• Reduced Efficiency: Elevated temperatures increase resistance, leading to higher energy losses.

• Insulation Degradation: Excessive heat can deteriorate insulating materials, potentially causing failures.

• Shortened Lifespan: Continuous overheating accelerates wear and tear, reducing the transformer's operational life.

• Safety Hazards: Overheated transformers pose risks of fire or explosion, especially in high-capacity units.

Transformer Cooling Methods

Cooling methods are categorized based on the cooling medium (air, oil, water) and the mode of circulation (natural or forced). Below is a comprehensive overview:

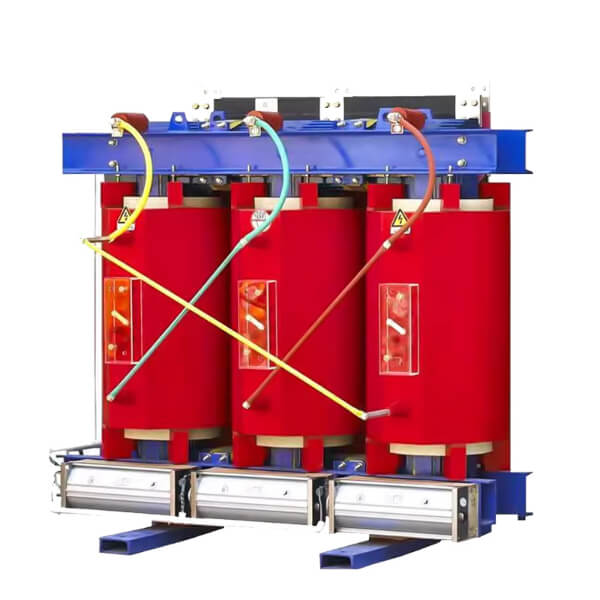

1. Dry-Type Transformers (Air-Cooled)

• Air Natural (AN): Utilizes natural convection of air to dissipate heat. Suitable for small transformers with low power ratings.

• Air Forced (AF): Employs fans or blowers to enhance air circulation, improving heat dissipation. Ideal for medium-sized transformers.

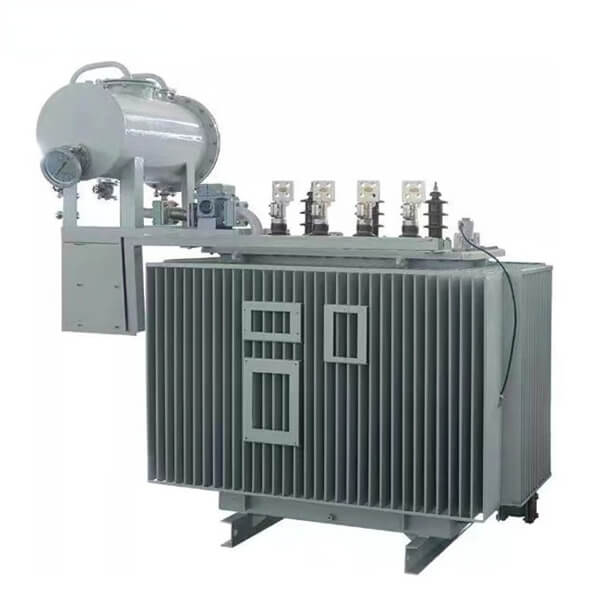

2. Oil-Immersed Transformers

• Oil Natural Air Natural (ONAN): The transformer is immersed in oil; heat is transferred to the oil, which circulates naturally, and heat is dissipated through natural air convection.

• Oil Natural Air Forced (ONAF): Similar to ONAN, but with forced air circulation using fans to enhance heat dissipation.

• Oil Forced Air Forced (OFAF): Involves forced circulation of both oil (via pumps) and air (via fans), providing efficient cooling for high-capacity transformers.

• Oil Forced Water Forced (OFWF): Features forced circulation of oil and water, with oil passing through heat exchangers cooled by water, suitable for very high-capacity transformers.

• Oil Forced Air Natural (OFAN): Combines forced oil circulation with natural air cooling, offering a balance between efficiency and complexity.

• Water Natural Air Natural (WNA): Utilizes natural convection of water and air for cooling, typically in specialized applications.

• Water Forced Air Natural (WFAN): Involves forced water circulation with natural air cooling, providing enhanced heat dissipation.

• Water Forced Oil Forced (WFOF): Features forced circulation of both water and oil, with oil passing through heat exchangers cooled by water, suitable for high-capacity transformers.

• Water Forced Air Forced (WFOA): Involves forced circulation of both water and air, offering efficient cooling for large transformers.

Cooling Classifications

Cooling classifications are standardized to indicate the maximum allowable temperature rise above ambient temperature:

• Class A: Maximum temperature rise of 55°C.

• Class B: Maximum temperature rise of 65°C.

• Class C: Maximum temperature rise of 80°C.

• Class F: Maximum temperature rise of 105°C.

• Class H: Maximum temperature rise of 125°C.

These classifications help determine the appropriate cooling method and materials to ensure transformer reliability and longevity.

Factors Influencing Cooling Method Selection

Selecting the appropriate cooling method depends on several factors:

• Transformer Rating: Higher capacity transformers require more efficient cooling methods.

• Ambient Temperature: Hotter environments may necessitate enhanced cooling systems.

• Installation Location: Indoor installations might benefit from dry-type transformers, while outdoor settings may accommodate oil-immersed types.

• Cost Considerations: Advanced cooling methods like OFWF are more expensive but offer superior performance.

• Safety and Environmental Regulations: In certain industries, safety concerns about fire hazards or environmental regulations may dictate the use of dry-type or less hazardous cooling systems.

Conclusion

Effective cooling is paramount to transformer performance and safety. Understanding the various cooling methods and classifications enables the selection of the most suitable system for specific applications, ensuring efficient and reliable operation.
