Transformers: Essential Devices Powering Modern Electricity

Introduction

A transformer is an electrical device that transfers energy between circuits via electromagnetic induction. By converting voltage levels—either stepping them up or down—transformers facilitate both long-distance power transmission and local distribution. This article takes you through the core functions and diverse types of transformers, underscoring their roles in today's energy landscape.

Operating Principles

Transformers work based on the principles of electromagnetic induction. The essential elements include:

• Primary Coil: Receives the alternating current (AC) energy.

• Secondary Coil: Delivers the altered voltage.

• Magnetic Core: Directs the magnetic field between the coils for efficient energy transfer.

When AC flows through the primary coil, a fluctuating magnetic field is generated in the magnetic core, which in turn induces a corresponding current in the secondary coil. The specific ratio of coil windings determines whether the transformer increases (steps up) or decreases (steps down) the voltage.

Key Functions and Benefits

Voltage Regulation and Distribution

Transformers are indispensable in voltage regulation. By stepping up voltage, especially in Power Transformers, electrical energy can be transmitted over long distances with minimal loss. Conversely, stepping down voltage in Distribution Transformers ensures that electricity reaches homes and businesses safely.

Energy Efficiency and Safety

Efficiency is paramount in transformer design. Modern transformers, including Oil-Immersed and Dry Type Transformers, are engineered to minimize energy losses. Oil-Immersed Transformers use insulating oil to improve cooling and insulation in high-power applications, while Dry Type Transformers are preferred in indoor or hazardous environments for their reduced fire risks. Additionally, transformers provide vital electrical isolation, protecting both equipment and users from voltage spikes and other anomalies.

Adaptability for Various Applications

Transformers exhibit a high degree of adaptability across multiple sectors:

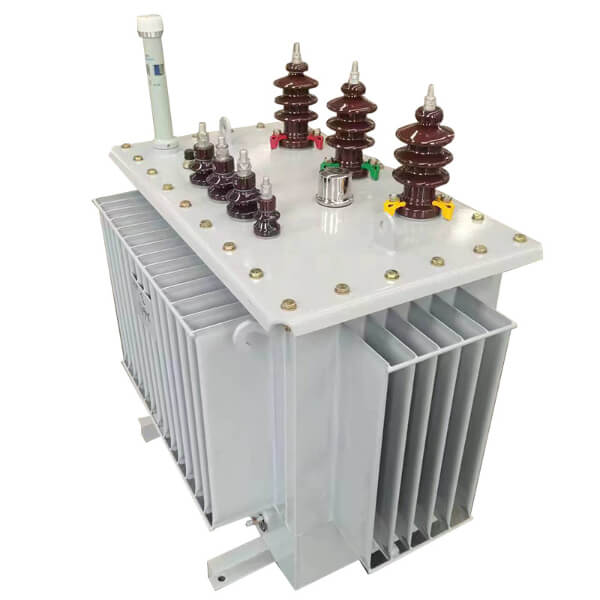

• Oil-Immersed Transformer: Widely used in high-power applications, the insulating oil not only cools the transformer but also improves its dielectric strength, making it ideal for industrial and utility-scale operations.

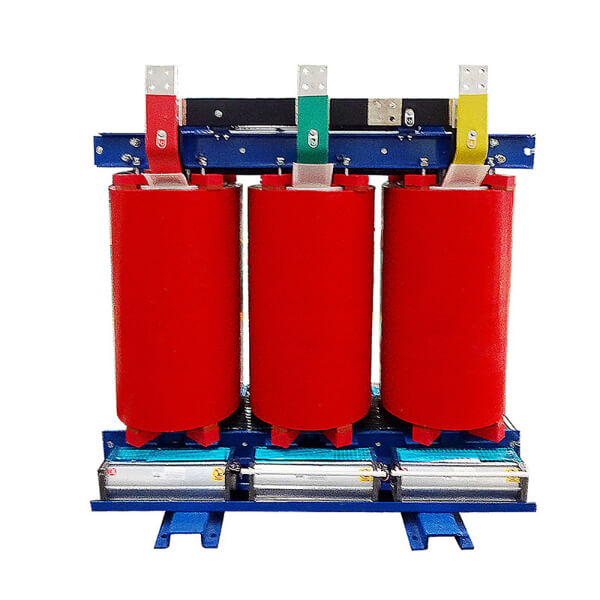

• Dry Type Transformer: These transformers are best suited for indoor applications, such as commercial buildings or hospitals, where the absence of oil reduces fire hazards and maintenance complexity.

• Distribution Transformer: Essential for stepping down high transmission voltages to usable levels at the consumer end, these transformers are a cornerstone in local power distribution networks.

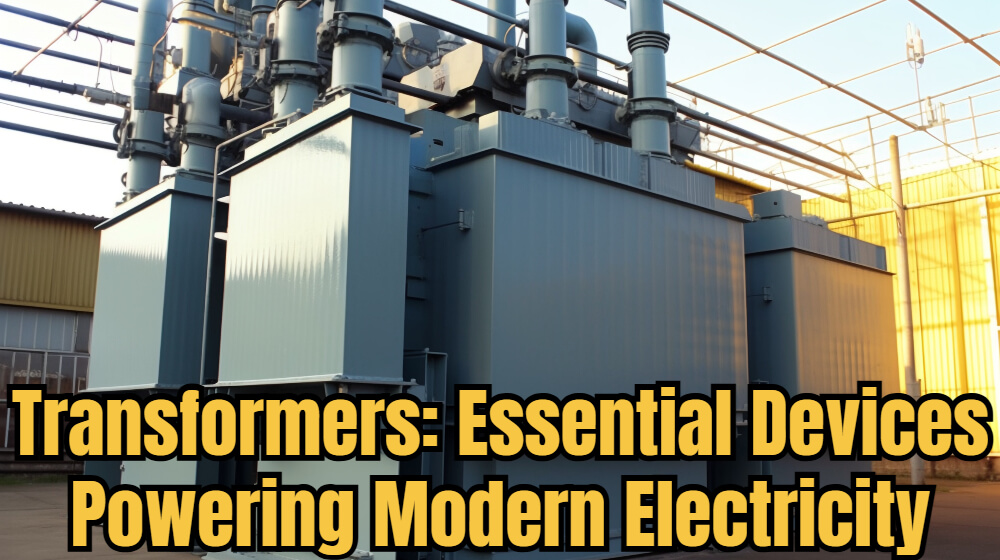

• Power Transformer: Employed in substations and power grids, these transformers facilitate high voltage transmission, ensuring minimal loss over long distances.

Types of Transformers

Transformers are designed in various configurations to meet different operational requirements:

• Step-up Transformers: Increase the voltage for efficient long-distance transmission.

• Step-down Transformers: Decrease voltage for safe distribution to end users.

• Autotransformers: Utilize a single winding to serve dual roles, offering a compact design for specific voltage conversion needs.

• Isolation Transformers: Provide electrical separation between circuits to safeguard sensitive equipment.

In addition to these, the specialized forms—Oil-Immersed, Dry Type, Distribution, and Power Transformers—address niche requirements in modern electrical grids and industrial environments.

Technological Innovations and Future Trends

Technological advancements have spurred innovations in transformer designs. For instance, newer models integrate digital monitoring systems that enhance reliability and efficiency. Smart transformer technologies now allow for real-time diagnostics and adaptive load management, pushing the envelope in energy-saving measures. These innovations play a significant role in modernizing power distribution systems, especially as the integration of renewable energy sources continues to grow.

Conclusion

Transformers are indispensable in powering modern electrical systems. Their ability to regulate voltage and ensure energy efficiency makes them critical across various sectors—from industrial to residential applications. By integrating specialized designs such as Oil-Immersed Transformers for heavy-duty performance, Dry Type Transformers for safe indoor use, Distribution Transformers for local energy management, and Power Transformers for high-voltage transmission, the world’s energy needs are met with reliability and innovation. Understanding these diverse transformer types helps illustrate how engineered ingenuity continues to drive our ever-evolving power infrastructure.
