Best Transformer Types for EV Charging Stations

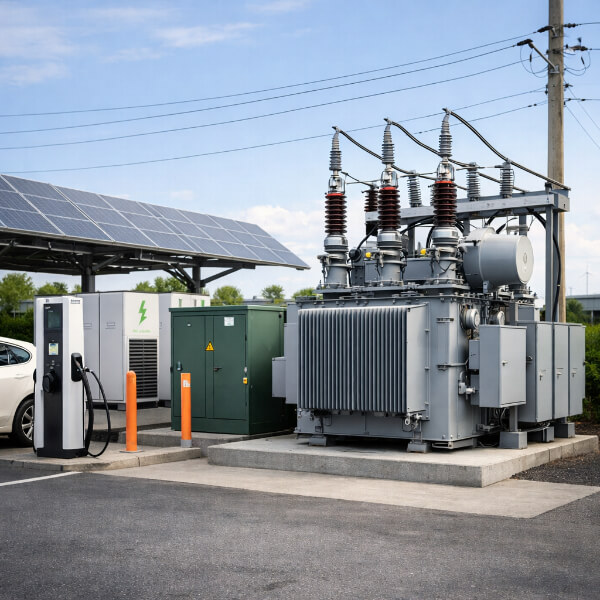

Electric vehicle (EV) charging sites look simple on the surface: chargers, cables, and a utility connection. Under the hood, the transformer is the workhorse that delivers safe, reliable power. Choosing the right transformer affects safety, lifetime, upfront cost, and how well the site handles modern power-electronics loads (fast chargers, battery backups, on-site PV).

Why transformer choice matters for charging stations

Transformers for EV sites are more than “step-down boxes.” Their characteristics determine:

• fire and installation risk (oil vs dry),

• how they handle non-linear/harmonic currents from power converters,

• capacity for peak charging demand and future growth,

• maintenance needs and total cost of ownership,

• and the ability to provide isolation or multiple secondary voltages.

A considered choice reduces failures, avoids nuisance trips, and keeps insurance and utility requirements straightforward.

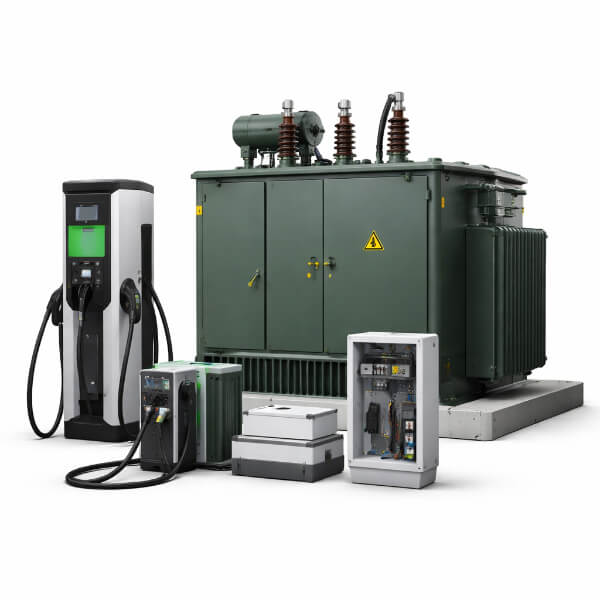

The transformer types you’ll encounter

Dry-type (cast-resin) transformers

Use these where fire safety, low maintenance, or enclosed environments matter (parking garages, malls, office basements). Cast-resin dry units contain no flammable oil, are quieter, and typically need less preventive maintenance. They’re ideal for medium kVA ranges used by smaller public charging clusters or building-level distribution.

Strengths: safety, low O&M, code-friendly for indoor spaces.
Limitations: higher cost per kVA for large ratings; slightly larger footprint for the same rating versus oil units.

Pad-mounted oil-immersed transformers

When you need hundreds of kVA or more, pad-mounted liquid-filled transformers are cost-efficient and weather-hardened. They handle higher continuous loads and tighter thermal margins, making them common at highway fast-charging plazas and large fleet depots.

Strengths: high kVA capacity, compact for rating, lower capital cost per kVA at large sizes.
Limitations: require spill containment and attention to fire/environment regulations.

K-factor rated transformers and Harmonic-Mitigating Transformers (HMT)

DC fast chargers and many EVSE topologies inject harmonic currents that cause additional heating in windings. K-factor-rated transformers are built to tolerate predictable harmonic heating; HMTs use special winding arrangements to reduce harmonics seen at the grid connection.

Use them when charger counts are high or when utility/standards require measured harmonic control.

Isolation transformers

Certain applications (sensitive equipment, specific earthing strategies, or to reduce leakage paths into vehicles) use isolation transformers on the secondary. They add cost and space but can simplify compliance with local safety rules.

Multi-winding / specialized connection transformers

If the site needs multiple secondary voltages (LV for chargers plus separate LV for facilities) or a dedicated battery/ESS connection, a three-winding transformer can centralize functions and save footprint versus multiple units.

Emerging: Solid-State Transformers (SST)

SSTs are electronic converters that provide high-speed control, MV-to-DC conversion, and grid services. They are attractive for future-proofed, high-value hubs but carry a premium price and greater control complexity today.

Common questions

• Under-sizing for harmonics: ask charger manufacturers for harmonic current spectra and use a K-rating if THD will be high.

• Choosing oil inside occupied buildings: check local fire code and insurer requirements; dry-type is usually safer.

• Skipping utility coordination: always confirm available fault current and harmonic limits with the utility early — it directly affects transformer selection.

• Not planning for redundancy: high-availability fleet depots should consider N+1 or paralleling to avoid downtime.

Closing advice

For small, indoor or customer-facing sites, start with dry-type, K-rated units. For large outdoor hubs, choose pad-mounted oil units sized with harmonic mitigation (HMT or filters). Reserve SSTs for projects where advanced grid services or MV-to-DC topologies justify the extra investment. Finally, bake utility coordination and real harmonic data into the procurement process — that step avoids most surprises.
