How to Ground a Transformer Secondary: Practical Guide for Safe, Compliant Installations

Grounding a transformer secondary is not an optional add-on — it’s a safety and reliability requirement that must match the electrical system’s earthing philosophy. This article gives you a field-ready approach: how to pick a grounding method, practical wiring choices, protection measures for ungrounded systems, required earth resistance limits, and on-site testing and commissioning steps.

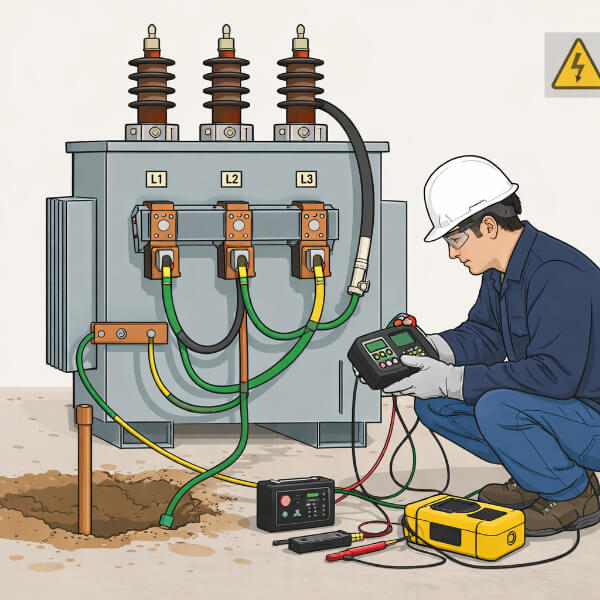

Why correct secondary grounding matters

A correctly grounded secondary prevents unexpected overvoltages, limits touch potentials during faults, and ensures protective devices operate predictably. Poor or missing grounding can allow a high-voltage fault to elevate the low-voltage network, causing insulation failure and equipment damage.

Choose the right grounding arrangement

• Wye–Wye (Y–Y) or Wye–Delta (Y–Δ): normally ground the neutral of the Y-connected winding. Grounding here gives a defined reference and helps protective relays detect unbalanced faults.

• Delta–Delta (Δ–Δ): does not provide a neutral point by itself. Grounding options: use a grounding (earthing) transformer or a voltage transformer to form a neutral, or, where permitted by the system, provide a single-point grounding on a phase of the delta (apply only under approved operating conditions).

• Three-winding transformers: when an LV winding is taken out of service or open-circuited, temporary grounding of the affected winding (or phase) is often necessary to avoid induction-induced stress on insulation.

Special case: ungrounded low-voltage systems

Some distribution networks operate with an isolated neutral. While this can allow continued operation for single-phase-to-ground events, it creates exposure: an HV fault or system transient may transfer high potential into LV circuits. Mitigations that work in the field:

• Fit a fusible earthing link (often called a breakdown or blow-through fuse) at the LV neutral or an LV phase point so that, under a defined fault, the fuse will operate and establish a solid earth to protect insulation.

• For Y-connected secondaries: place the fusible earthing link at the transformer neutral.

• For Δ-connected secondaries: place the fusible earthing link on one of the phases (as the system design requires).

Earthing resistance: the practical limit

A reliable rule for distribution transformer grounding: ensure the earth/ground resistance does not exceed 4 Ω for the equipment earthing point — whether the neutral is solidly grounded or grounded through a sacrificial fuse. This target helps limit touch and step voltages and ensures the protection system can clear faults quickly. Note: high-voltage earthing requirements and regional regulations must also be satisfied — treat the 4 Ω target as a minimum expectation, not the only criterion.

Surge and lightning protection — the “trinity” connection

Lightning arresters and surge protective devices must be integrated with the transformer earthing:

• Locate arresters close to the transformer (as near as physically possible) so surge currents take the shortest path to earth.

• Bond the arrester earth to both the transformer neutral and the transformer metalwork (e.g., tank, tank-mounted accessories). This three-point bonding — neutral, metal shell, and arrester earth — ensures surge discharges are directed to the earthing system without imposing excessive insulation stress on the transformer’s main windings.

• LV outgoing lines from 3–10 kV distribution transformers should include LV surge arresters to prevent switching or lightning transients on the LV side from reflecting into the HV windings.

Practical installation checklist

Use this checklist to verify grounding is correct and complete:

1. Confirm system earthing philosophy and records (Y/Y, Y/Δ, Δ/Δ, etc.).

2. Identify neutral point(s) and confirm the intended grounding method (solid, impedance, fusible link).

3. Install fusible earthing link where required and clearly label it with operating characteristics and spare fuses.

4. Install lightning arresters as close to the transformer as possible; route the arresters’ earth conductors to the earthing point with minimal bends and shortest path.

5. Bond transformer tank, neutral, and arrester earth together (single common earth node).

6. Measure earthing resistance with a calibrated earth tester; document that it meets the ≤4 Ω requirement or the project’s specified target.

7. Inspect physical connections, clamps, and welds; ensure corrosion protection and appropriate conductor sizing.

8. Verify protective relay settings and earth-fault detection schemes are coordinated with the installed grounding method.

9. Label the site: grounding type, earthing resistance test date, and safety warnings for maintenance staff.

10. Perform a functional test: simulate a fault condition (where safe and permitted) to confirm protection operates and the system clamps voltages to acceptable levels.

Commissioning and testing recommendations

• Earth resistance testing: use a 3-point fall-of-potential test or a clamp-on earth tester for ring/rail systems. Record multiple readings at different seasons if possible — soil resistivity changes.

• Periodic inspections: check all bonds, earth pits, and surge arrester connections every 12 months (or per local practice), and after any major surge event.

• Record keeping: keep test certificates, soil resistivity reports, and wiring diagrams with earthing details alongside the transformer documentation.

Common mistakes to avoid

• Assuming an ungrounded LV side is “safe.” It can mask faults until a transient causes catastrophic insulation failure.

• Long, convoluted arrester earth runs — longer paths mean larger voltages during discharge. Keep earth lead lengths short.

• Not coordinating protective device settings with the chosen grounding—relay pick-up values and fuse sizes must reflect whether the neutral is solidly grounded, impedance grounded, or fusible-earthed.

Short FAQ

Q: Must every transformer have a surge arrester?
A: Not every single installation requires a surge arrester, but for distribution transformers (3–10 kV) and installations exposed to lightning/switching transients, LV and HV arresters are strongly recommended.

Q: Is 4 Ω a legal requirement?
A: It is a widely used practical benchmark for transformer earthing points to achieve acceptable fault-clearing performance. Always check and meet local codes and the system owner’s earthing specifications.

Q: Can I bond multiple transformer neutrals to the same earth grid?
A: Yes — bonding neutrals to a common earth grid is common practice. Design the grid to keep step and touch voltages within acceptable limits and coordinate with system protection.

Final notes

Grounding the transformer secondary is part technical design, part site engineering. Make decisions based on system requirements, safety standards, and practical site conditions — and always document tests and settings so future maintenance teams can operate safely. If you need a downloadable commissioning checklist, a sample earthing drawing, or customized earthing resistor calculations for your project, tell me the system details (connection type, rated voltages, fault current targets) and I’ll prepare them for you.
