The Definitive Guide to Cast Resin Transformers: Design, Benefits, and Applications

As the global demand for reliable, low‑maintenance power distribution grows, cast resin transformers have emerged as the go‑to solution for many industrial and commercial installations. Unlike traditional oil‑filled units, these dry‑type transformers use epoxy resin as both insulation and structural support. This article explores their construction, technical advantages, real‑world applications, installation guidelines, and future trends.

1. What Is a Cast Resin Transformer?

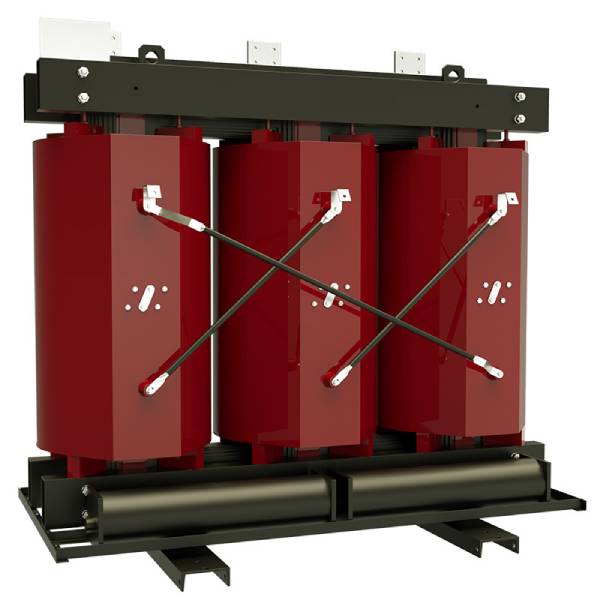

A cast resin transformer—also known as an epoxy resin transformer—is a dry‑type power transformer in which the windings and core are encapsulated in high‑grade epoxy resin. This solid insulation system replaces mineral oil, offering:

• Fire safety: Resin encapsulation is inherently flame‑retardant.

• Environmental protection: No risk of oil leakage or soil contamination.

• Low maintenance: No oil testing, no filtration, and no potential for harmful gas by‑products.

2. Core Components and Working Principle

2.1 Core and Windings

• Silicon steel core: Laminated to minimize eddy‑current losses.

• Copper or aluminum conductors: Wound into layers then vacuum‑impregnated with epoxy.

2.2 Epoxy Encapsulation

• Vacuum casting: Removes air pockets and moisture before resin pours.

• Curing process: Ensures uniform hardness and dielectric strength.

2.3 Cooling and Heat Dissipation

• AN (Air Natural): Convective airflow over finned enclosures.

• AF (Air Forced): Fans or blowers for high‑load scenarios.

• Heat travels from windings through resin into the metal tank and cooling fins.

2.4 Electromagnetic Operation

Fundamentally, cast resin transformers operate on electromagnetic induction: alternating current in the primary winding creates a changing magnetic field, which induces voltage in the secondary winding.

3. Key Advantages

3.1 Enhanced Safety

• Zero oil leakage: Eliminates fire hazards and environmental contamination.

• UL94 V‑0 rated resin: Self‑extinguishing, no flame propagation.

3.2 Environmental Sustainability

• Non‑toxic materials: Epoxy resin is recyclable, and there’s no dielectric fluid disposal.

• Lower carbon footprint: Fewer maintenance visits and no oil transport.

3.3 Superior Reliability

• Moisture resistance: Dense resin prevents humidity ingress.

• Short‑circuit endurance: Rigid encapsulation withstands mechanical stresses better than oil‑immersed coils.

3.4 Reduced Maintenance Costs

• No oil sampling or filtering: Saves on operational expenses and downtime.

• Simplified inspections: External visual checks replace expensive oil‑analysis programs.

4. Common Applications

4.1 Commercial Buildings

Ideal for malls, offices, hospitals, and data centers where fire safety and clean operation are critical.

4.2 Industrial Facilities

Used in factories, wastewater treatment plants, and chemical plants that demand corrosion‑resistant, moisture‑proof transformers.

4.3 Transportation Systems

Deployed in metros, rail tunnels, and airports where ventilation and fire codes prohibit oil‑filled equipment.

4.4 Renewable Energy Installations

Matched with wind turbines and solar inverters to handle variable loads without oil leakage risks.

5. Capacity, Voltage Ratings, and Cooling Options

6. Installation Best Practices

1. Site Preparation:

• Ensure a clean, dry, and level mounting surface.

• Maintain a minimum 30 cm clearance around all cooling surfaces.

2. Grounding and Bonding:

• Connect the transformer tank and core to a reliable earth grid.

• Follow local electrical codes for grounding conductor size.

3. Ventilation:

• For AN units, allow unobstructed airflow.

• For AF units, place fans clear of debris and dust to avoid clogging.

4. Initial Commissioning:

• Measure winding resistance and insulation resistance.

• Monitor temperature rise under no‑load and full‑load conditions.

5. Routine Inspection:

• Check terminal tightness, resin integrity, and external signs of overheating.

• Record ambient temperature and load cycles to forecast maintenance needs.

7. Selection Criteria

When choosing a cast resin transformer, consider:

• Load profile: Continuous vs. intermittent duty and overload capacity.

• Ambient conditions: Humidity, corrosive gases, and temperature extremes.

• Installation constraints: Indoor vs. outdoor, space limitations, and access for airflow.

• Regulatory compliance: IEEE/IEC standards, CE/UL certification, and local fire codes.

• Budget and lifecycle cost: Balance initial investment against savings from reduced maintenance.

8. Limitations and Mitigation

9. Future Trends

1. Advanced Materials:
   Development of nanocomposite resins to further reduce dielectric losses and improve thermal conductivity.

2. Digital Monitoring:
   Integration of temperature, humidity, and partial discharge sensors for real‑time diagnostics and predictive maintenance.

3. Modular Designs:
   Plug‑and‑play transformer modules that simplify transport, installation, and scalability.

4. Green Manufacturing:
   Low‑VOC resins and closed‑loop recycling processes to minimize environmental impact.

5. Higher Voltage Applications:
   Expansion into 66 kV and above, driven by renewable energy grid‑connection requirements.

Conclusion

Dry type cast resin transformers are rapidly becoming the standard for safe, reliable, and eco‑friendly power distribution. By encapsulating winding assemblies in flame‑retardant epoxy, these dry‑type transformers eliminate oil‑related risks, reduce maintenance, and comply with stringent fire and environmental regulations. Whether in a high‑rise office, metro tunnel, or solar farm, the versatility and robustness of cast resin transformers make them an indispensable component of modern electrical infrastructure.
