Shell-Type Vs. Core-Type Transformers Comprehensive Comparison

Introduction

Transformers are the backbone of electrical power systems, enabling efficient voltage conversion for transmission, distribution, and specialized equipment. Two primary structural designs dominate transformer engineering: shell-type and core-type. This article delves into their distinctive characteristics, advantages, and ideal use cases, helping engineers and decision-makers select the optimal design for their applications.

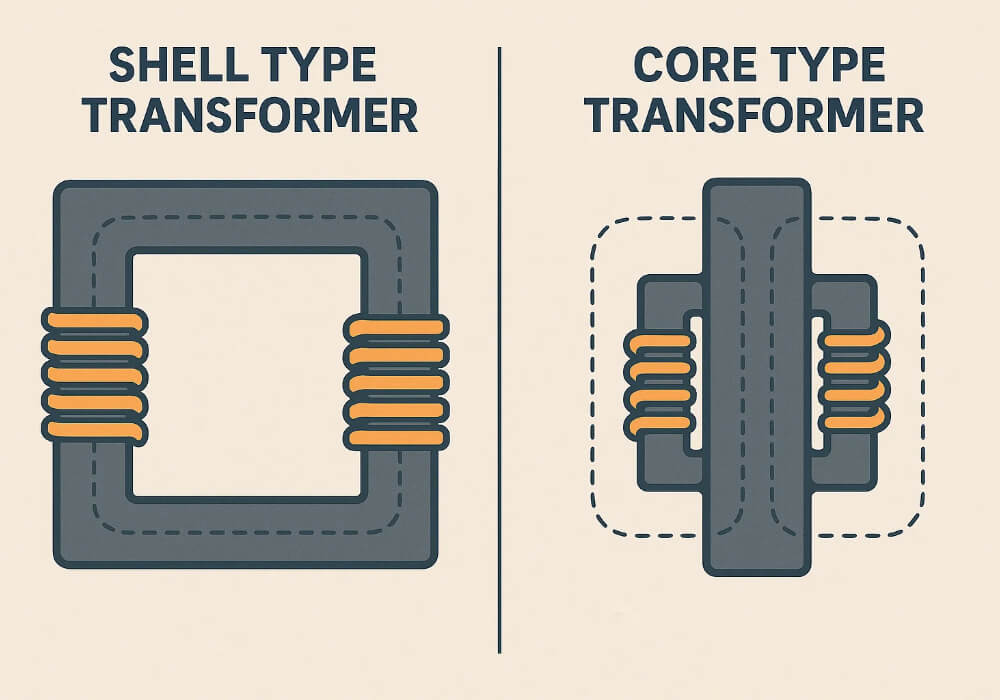

1. Structural Architecture and Magnetic Flux Path

Shell-Type Transformer

• Core Configuration: The magnetic core encloses the windings in a “C–C” or “∏” arrangement, surrounding the coils on two sides.

• Flux Path: Magnetic flux loops within the central limb and returns through the outer limbs, minimizing leakage.

• Footprint: Compact core section yields high magnetic utilization and reduced iron mass.

Core-Type Transformer

• Core Configuration: Built with stacked E-I laminations, featuring two outer limbs and one central limb where the windings are placed.

• Flux Path: Flux travels down one outer limb, through the central limb (with windings), and returns via the opposite outer limb.

• Footprint: Simpler lamination layout allows for standardized manufacturing but slightly larger iron volume.

2. Winding Arrangement and Insulation

In shell-type transformers, the windings benefit from the surrounding core material, which both shields and physically supports them during fault conditions. Core-type designs, while more accessible for winding installation and repair, must incorporate robust clamping systems to counter short-circuit forces.

3. Thermal Management and Cooling

Shell-Type Transformer

• Cooling Challenge: Windings are internally enveloped by core laminations, hindering direct heat dissipation.

• Hot Spots: Increased risk unless engineered with specialized oil or air channels.

Core-Type Transformer

• Cooling Advantage: External windings facilitate uniform oil or air flow, promoting lower temperature rise.

• Load Capacity: Better thermal profile allows sustained higher loading.

Proper thermal design is critical: shell-type models often include finned radiators or forced-air systems, whereas core-type units leverage natural or forced oil circulation more effectively.

4. Mechanical Robustness and Noise

Shell-type transformers excel in environments subject to mechanical shock or high fault currents (e.g., mining, marine). Core-type units, while mechanically sound, can produce more audible noise and typically need vibration-damping mounts.

5. Manufacturing Complexity and Cost

• Shell-Type: Complex core assembly and winding encapsulation drive higher production costs and longer lead times.

• Core-Type: Simpler lamination stacking and coil installation favor mass production, reducing unit cost.

Cost considerations often guide the choice: shell-type for critical, low-volume applications; core-type for standard distribution transformers where economies of scale apply.

6. Typical Applications

Shell-Type

• Specialized Equipment: Laboratory power supplies, rectifier transformers, and high-frequency units.

• Harsh Environments: Offshore platforms, locomotives, and industrial plants with extreme conditions.

Core-Type

• Power Distribution: Substations, utility distribution networks, and large industrial feeders.

• General-Purpose: Oil-immersed grid transformers and dry-type indoor installations.

Selecting the Right Transformer

When deciding between shell-type and core-type designs, evaluate:

1. Capacity & Load Profile: High continuous loads favor core-type; variable or fault-prone loads may require shell-type strength.

2. Environmental Conditions: Vibration, moisture, or corrosive atmospheres may mandate shell-type robustness.

3. Thermal Requirements: Core-type offers superior natural cooling for large installations.

4. Budget & Production Volume: Core-type wins on cost in large runs; shell-type justifies its premium in critical niches.

Conclusion

Understanding the structural and functional nuances of shell-type versus core-type transformers empowers engineers to align design choices with project requirements. By balancing mechanical resilience, thermal performance, and cost, you can specify transformers that deliver optimal reliability and efficiency in their intended roles.
