The Definitive Guide To Rectifier Transformers: From Design Principles To Industrial Applications

Introduction

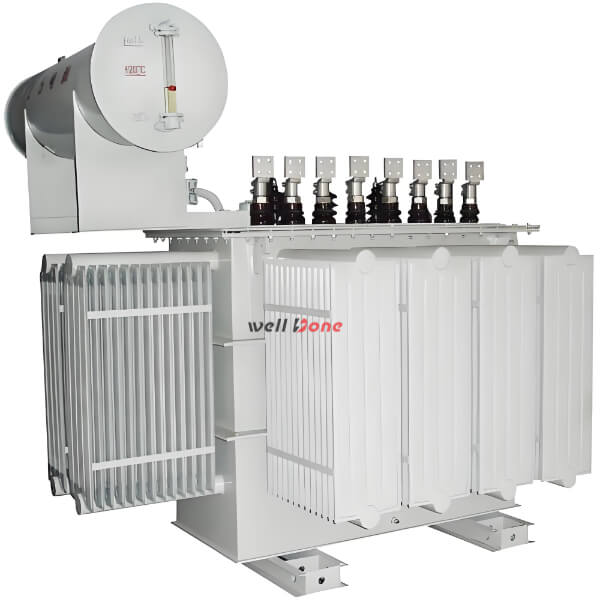

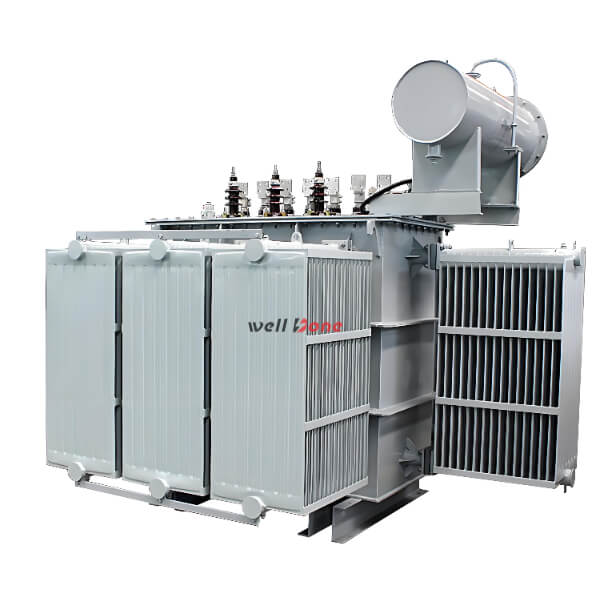

Rectifier transformer is a specialized form of power transformer engineered to supply direct current (DC) to rectifier circuits by stepping down or stepping up alternating current (AC) voltage levels. Unlike conventional transformers, rectifier transformers must withstand non-linear loads, high harmonic currents, and rigorous thermal stresses. This guide explores the core design features, construction methods, application areas, and performance considerations of rectifier transformers, providing a comprehensive resource for engineers, technicians, and procurement specialists.

1. Core Design Principles

1.1 Voltage Transformation & Isolation

• Voltage Adaptation: Converts utility AC voltage (e.g., 11 kV, 33 kV) to the precise level needed by the rectifier—often in the low- to medium-voltage range (e.g., 400 V to 2 kV).

• Electrical Isolation: Provides galvanic separation between the grid and DC load, enhancing system safety and mitigating fault propagation.

1.2 Harmonic Management

• Phase-Shift Windings: Implements delta-wye or zigzag configurations to introduce phase shifts (e.g., 30°) that cancel specific harmonics, reducing total harmonic distortion (THD).

• Multi-Winding Designs: Utilizes tertiary windings or multiple secondary windings arranged to neutralize triplen harmonics, ensuring power quality compliance.

1.3 Thermal & Mechanical Robustness

• Overload Capacity: Designed for sustained DC currents with low short-circuit impedance and high thermal inertia, preventing saturation under non-sinusoidal loading.

• Vibration Dampening: Incorporates bracing and resin-impregnated winding to withstand electromagnetic forces and mechanical stresses during inrush and fault conditions.

2. Construction & Materials

2.1 Core Assembly

• Core Steel: Grain-oriented silicon steel laminations minimize core losses and eddy currents.

• Magnetic Shielding: Laminated or foil shields reduce leakage flux and stray losses, improving efficiency.

2.2 Winding & Insulation

• Conductor Selection: High-purity copper conductors, sometimes aluminum for cost-sensitive designs, sized for continuous DC currents.

• Insulation Systems: Class F or H insulation (e.g., Nomex, epoxy resin) withstands elevated temperatures from harmonic heating.

• Tap Changers: On-load tap changers (OLTC) enable fine voltage regulation (±2.5 % to ±10 %) under full load.

2.3 Cooling Arrangements

• Oil-Immersed Cooling: ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) designs for high-capacity units.

• Dry-Type Cooling: Forced-air or vacuum-pressure encapsulation for indoor, environmentally sensitive installations.

3. Types of Rectifier Transformers

4. Key Applications

4.1 Electrochemical Processing

• Metal Extraction: Supplies precise DC currents for electrowinning aluminum, copper, and zinc, where voltage ripple directly affects product quality.

• Electroplating & Anodizing: Ensures uniform deposit thickness by maintaining stable DC output.

4.2 Steel & Metal Industries

• Electric Arc Furnaces (EAF): Provides DC supply for furnace electrodes, enabling smooth arc control and reduced flicker.

• Rolling Mills & Galvanizing Lines: Powers DC motors and resistor banks for load leveling and tension control.

4.3 Transportation & Traction

• Railway Substations: Feeds DC traction systems for urban metros and high-speed rails, often as 12-pulse configurations to minimize harmonics on the AC grid.

• Ship Propulsion: Supplies DC drives for efficient marine motors.

4.4 High-Voltage Direct Current (HVDC)

• Long-Distance Links: Converts AC to DC for transmission over hundreds of kilometers with minimal losses; installed at both sending and receiving ends.

• Interconnects & Grid Stabilization: Enables power exchange between asynchronous networks.

4.5 Battery Charging & Renewable Integration

• Battery Energy Storage Systems (BESS): Supplies controlled DC for charging large-format batteries in microgrids and renewable farms.

• Photovoltaic Inverters: Interfaces with bi-directional DC links for grid-support functions.

5. Performance & Maintenance Considerations

5.1 Efficiency & Losses

• Core Losses: Kept low through high-grade laminations; critical at partial loads.

• Copper Losses: Increase under DC bias; optimized by selecting proper conductor size and winding layout.

5.2 Monitoring & Protection

• Temperature Sensors: PT100/RTD probes embedded in windings and oil for real-time thermal monitoring.

• Buchholz Relay & Pressure Relief: Detects gas accumulation and overpressure in oil tanks, triggering alarms or isolates.

5.3 Lifecycle & Reliability

• Routine Testing: Turns ratio, polarization index, and dissolved gas analysis (DGA) to assess winding integrity and oil health.

• Refurbishment: Rewinding and oil replacement extend service life by 10–15 years when performed proactively.

Conclusion

Rectifier transformers are indispensable in modern power systems where stable DC supply and power quality are paramount. Through advanced winding configurations, robust insulation, and tailored cooling methods, these transformers meet the stringent demands of industrial electrochemical processes, high-capacity DC transmission, and critical traction systems. By understanding their design nuances and maintenance needs, engineers can ensure optimum performance, longevity, and energy efficiency in any DC power application.
