Understanding Transformer Prices and How to Choose the Right One for Your Needs

Transformers are indispensable in electrical power systems, ensuring safe voltage conversion and reliable power delivery for industrial, commercial, and residential applications. Whether you’re installing a small distribution transformer for a home workshop or specifying a large power transformer for an industrial plant, understanding pricing dynamics and selection criteria is crucial. This guide dives into typical transformer prices, the factors that influence cost, and a step-by-step approach to selecting the right transformer for your specific application.

1. Transformer Price Overview

Transformer prices vary widely depending on size, voltage class, design features, and manufacturer. Below is a general breakdown:

Note: Prices are approximate and exclude shipping, installation, and taxes.

1.1 Key Cost Drivers

1. Power Rating (kVA/MVA): Higher-rated transformers require more copper/aluminum winding material and larger cores, increasing material and manufacturing costs.

2. Voltage Class: Medium- and high-voltage designs demand more complex insulation systems, bushings, and clearances.

3. Construction Type:

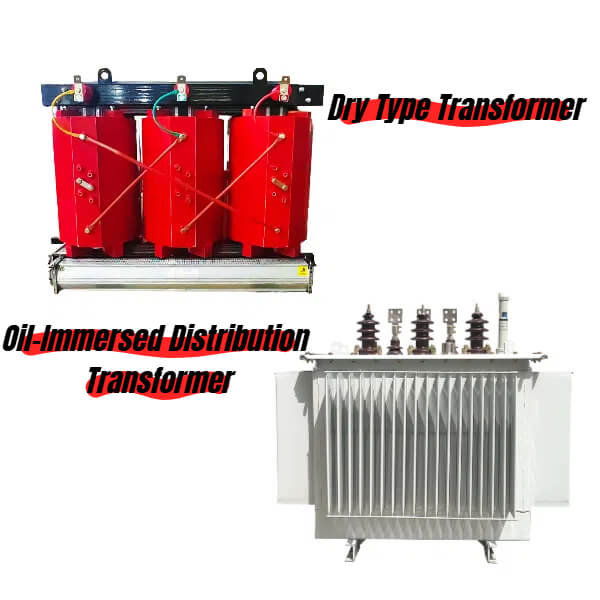

• Dry-type (air-cooled) tends to be more expensive per kVA than oil-immersed due to specialized resin systems and ventilation design.

• Oil-immersed units have lower upfront costs but require more maintenance.

4. Efficiency and Losses: Low-loss cores and improved winding techniques raise prices but reduce operating expenses.

5. Cooling Method:

• ONAN (oil-natural, air-natural) is standard and cost-effective.

• OFAF (oil-forced, air-forced) adds fans/pumps, raising costs.

6. Standards and Certifications: Customized designs (IEEE, IEC, NEMA) or seismic/harsh environment ratings can add to the price.

7. Manufacturer & Lead Times: Established brands with rigorous quality control often charge premium prices; expedited delivery increases cost.

2. How to Choose the Right Transformer

Selecting the optimal transformer involves balancing technical requirements, budget constraints, and long-term operational goals. Follow these steps:

2.1 Define Your Application Requirements

• Load Characteristics:

• Continuous vs. intermittent loads

• Motor starting currents (inrush)

• Voltage Levels:

• Primary and secondary voltage ratings

• Phase (single-phase vs. three-phase)

• Environment:

• Indoor dry locations favor dry-type units

• Outdoor or corrosive environments often require oil-immersed with weatherproof enclosures

2.2 Determine Capacity and Sizing

• Calculate total kVA based on expected maximum load, including future expansion (typical safety margin: 10–25%).

• Account for ambient temperature and altitude derating factors.

2.3 Select Transformer Type and Cooling

• Dry-Type:

• Pros: Low fire risk, minimal maintenance, indoor use

• Cons: Higher upfront cost, larger footprint

• Oil-Immersed:

• Pros: Higher capacity per frame size, cost-effective for large ratings

• Cons: Fire risk, environmental concerns, periodic oil testing required

• Cooling Classification (per IEC/NEMA):

• ONAN, ONAF, OFAF – choose based on load profile and ambient conditions

2.4 Evaluate Efficiency and Losses

• Consider total life-cycle cost: low-loss transformers can save on energy costs over decades.

• Review no-load losses (core losses) and load losses (copper or winding losses).

2.5 Review Standards, Safety, and Compliance

• Ensure compliance with relevant standards (e.g., IEC 61869, IEEE C57.12, NEMA TR 1).

• For seismic zones or specialized applications, request certificates and test reports.

2.6 Factor in Maintenance and Lifecycle Costs

• Maintenance Needs: Dry-type require minimal inspection; oil-immersed need oil sampling and tank maintenance.

• Total Cost of Ownership (TCO): Include energy losses, maintenance, and downtime costs in your budget.

2.7 Compare Vendors and Obtain Quotes

• Solicit bids from multiple reputable manufacturers or distributors.

• Ask for detailed breakdowns: equipment cost, delivery, installation, testing, warranties.

• Verify references and past project performance.

3. Practical Tips for a Smart Purchase

• Aggregate Demand: If you need multiple units, negotiate bulk-order discounts.

• Modular vs. Customized: Standard, off-the-shelf designs cost less and ship faster than bespoke units.

• Warranty & Service Level Agreements (SLAs): Look for extended warranties, on-site service, and spare parts availability.

• Energy Incentives: Check local rebates or incentives for high-efficiency transformers.

• Future-Proofing: Plan for increased load or expansion to avoid costly replacements.

Transformer procurement is about more than upfront price—it’s a strategic investment in energy efficiency, reliability, and safety. By understanding price drivers, clearly defining technical requirements, and carefully comparing options, you’ll select the ideal transformer that balances performance, cost, and future needs. Whether it’s a small dry-type unit for a commercial building or a large oil-immersed power transformer for an industrial facility, these guidelines ensure you make an informed, cost-effective choice.
