Understanding Common Transformers in the United States: Types, Technical Practices, and Why They Differ from the Rest of the World

Introduction

Transformers are the backbone of electrical distribution and power delivery. In the United States, transformer design and deployment reflect unique system conventions—most notably the 120/240 V residential split-phase service and a long history of overhead distribution. This article explains the common transformer types you’ll encounter in the U.S., the typical voltage and connection choices, how U.S. standards differ from international practice, and the tangible advantages these differences bring to utilities, engineers, and end users.

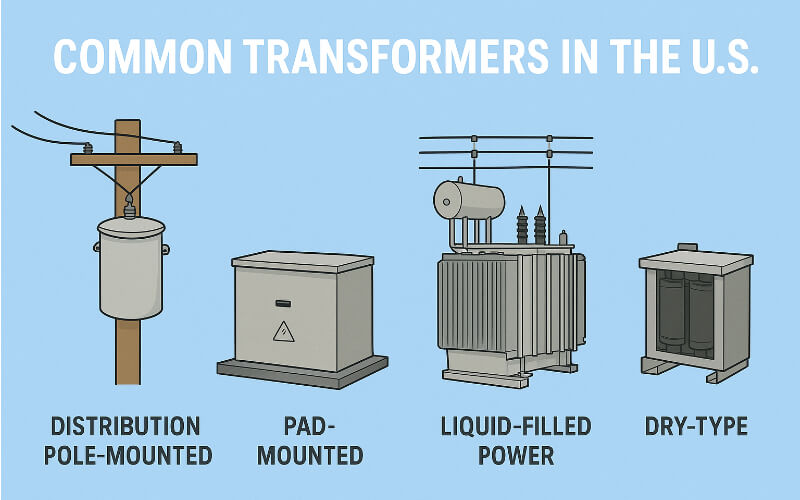

Common transformer types and where they’re used

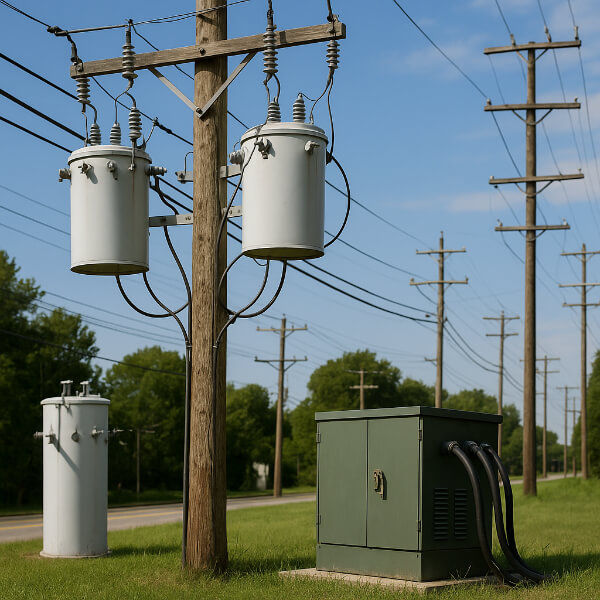

Pole-mounted distribution transformers
Hanging from utility poles, these oil-filled single- or three-phase units step feeder voltage down for residential service (most commonly to 120/240 V split-phase). Their design emphasizes field serviceability and fast replacement.

Pad-mounted distribution transformers
Locked, ground-level units designed for underground distribution in subdivisions, campuses, and commercial sites. They are typically dead-front or live-front with fusing and are engineered to be tamper-resistant and maintenance-friendly.

Substation and power transformers
Large, three-phase liquid-filled transformers used at transmission-to-distribution interfaces and in bulk power substations (from a few MVA to several hundred MVA). They commonly include accessories such as on-load tap changers (OLTC), conservators, and protective relays.

Dry-type transformers
Resin-cast or ventilation-cooled units suited for indoor environments, high-fire-safety applications (schools, hospitals, data centers), or where oil is restricted by codes.

Autotransformers and grounding transformers
Used where voltage regulation or neutral grounding solutions are required; grounding transformers (zig-zag or specially wound units) create or stabilize a neutral where none exists.

Instrument transformers (CTs & PTs)
Current and potential transformers for metering and protection—customized to local utility metering conventions and protection schemes.

Specialty units (K-rated, phase-shifted, multi-winding)
Designed for harmonic-rich environments (data centers, industrial drives), utility interties, or renewable energy step-up applications.

Typical voltages and system configurations in the U.S.

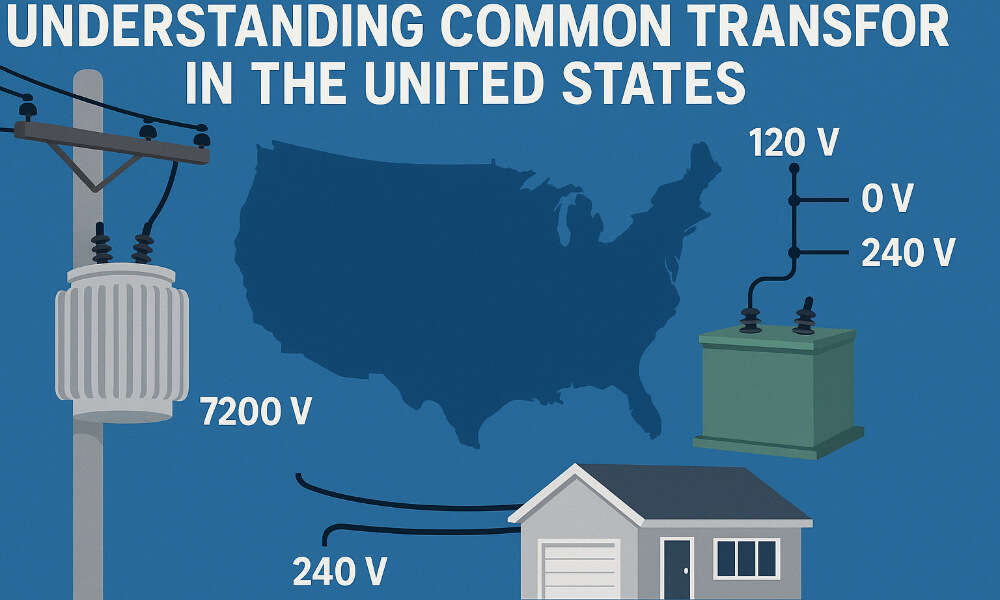

• Residential secondary: 120/240 V split-phase (nearly universal for homes).

• Commercial/industrial secondaries: 208Y/120 V and 480Y/277 V are common for three-phase service.

• Distribution primaries: commonly 4.16 kV, 7.2 kV, 12.47 kV (often called 13.2 kV historically), 24.9 kV.

• Transmission: 69 kV, 115 kV, 138 kV, 230 kV, 345 kV, 500 kV and above.
  These nominal voltages and connection choices shape transformer winding configurations, bushing ratings, tap ranges, and vector group decisions.

Standards and specification differences (ANSI/IEEE vs IEC)

U.S. equipment is typically specified to ANSI/IEEE families (e.g., ANSI C57.x) while many other countries follow IEC standards (IEC 60076 series). Practical consequences include:

• Different nominal voltage naming and commonly used tap steps.

• Variation in BIL (Basic Impulse Level) and short-circuit testing details.

• Different physical and nameplate conventions (bushing types, vector group notation).

• Manufacturer documentation, test regimes, and acceptance criteria tailored to the local standard—so cross-market purchases often need specification adaptations.

Deployment and design trends that distinguish the U.S.

• Overhead distribution prevalence: Pole-mounted transformers remain common in suburban and rural America, driving a strong market for lightweight, serviceable pole units. Densely urbanized countries often favor underground networks and different pad enclosures.

• K-rated transformers and harmonic handling: Widespread use of VFDs, UPS systems, and electronic loads created early demand in the U.S. for K-rated and harmonic-aware designs.

• Fluid choices and fire codes: Mineral oil is common, but natural esters and synthetic fluids are increasing where fire safety or environmental policies require less-flammable dielectric fluids. Adoption varies by region and local code.

• Standardized field interfaces: Utility-level conventions for fuse cutouts, meter CT placements, and pad interfaces make replacement and field servicing fast and repeatable.

Advantages of U.S. transformer practice

• Optimized fit for residential service: The split-phase system simplifies residential wiring and reduces transformer count per service.

• Field serviceability and modular maintenance: Pole and pad designs allow rapid repair or replacement, lowering outage duration.

• Large, mature manufacturing and aftermarket ecosystem: Wide choice of sizes, accessories (OLTCs, Buchholz relays, pressure relief), and retrofit options.

• Solutions for modern loads: Readily available K-rated and specially wound transformers to handle harmonics from commercial/industrial equipment.

• Regulatory clarity: ANSI/IEEE standards lead to consistent testing and acceptance practices across utilities.

Practical guidance for specifying transformers in U.S. projects

1. Start with the service type — residential (120/240 V split-phase) vs commercial (208Y/120 or 480Y/277).

2. Define harmonic environment — ask whether K-rating or mitigation is required.

3. Specify applicable standard — ANSI/IEEE for U.S. deployments; note any utility-specific addenda.

4. Choose fluid or dry type based on fire codes and indoor/outdoor placement.

5. Detail installation interface — pad dimensions, bushing arrangements, fuse types, pad locks, and SCADA metering requirements.

6. Include environmental and maintenance clauses — fluid type, breather selection, and spare parts policy.

Conclusion

U.S. transformer practice is shaped by system voltages, long reliance on overhead distribution, and mature domestic standards. That combination yields equipment optimized for quick field service, residential compatibility, and heavy-duty industrial use. When specifying for American projects, align designs with ANSI/IEEE conventions, consider harmonic and fire-safety requirements, and choose equipment tailored to whether service will be pole-mounted, pad-mounted, indoor dry-type, or substation power transformers.

FAQs

Q: Are U.S. transformers interchangeable with IEC equipment?
A: Functionally possible, but expect differences in nameplates, tap ranges, BILs, and bushing types—specify clearly for cross-market purchases.

Q: When should I choose a dry-type over an oil-filled transformer?
A: Choose dry-type for indoor locations with strict fire safety requirements or where oil is prohibited; oil-filled units typically offer better cooling for larger MVAs.

Q: What is a K-rated transformer?
A: It’s designed to withstand additional heating caused by harmonic currents from nonlinear loads (VFDs, UPS systems).
