Transformers play a crucial role in stepping voltage levels up or down for safe, efficient power distribution. While both single-phase and three-phase transformers serve this purpose, their designs, performances, and ideal use cases differ significantly. This article delves into their construction, operating principles, cost and efficiency trade-offs, application scenarios, and selection guidelines to help transformer manufacturers、engineers and installers make informed decisions.
Contains one primary winding and one secondary winding.
Operates on a single alternating current (AC) input, producing a single AC output.
Commonly used for residential and light commercial circuits where only one phase is required.

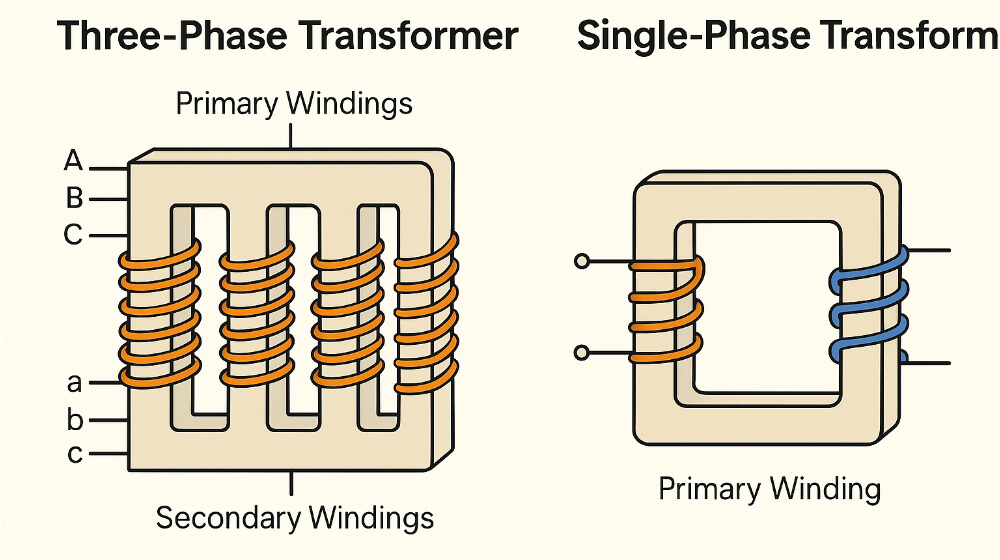

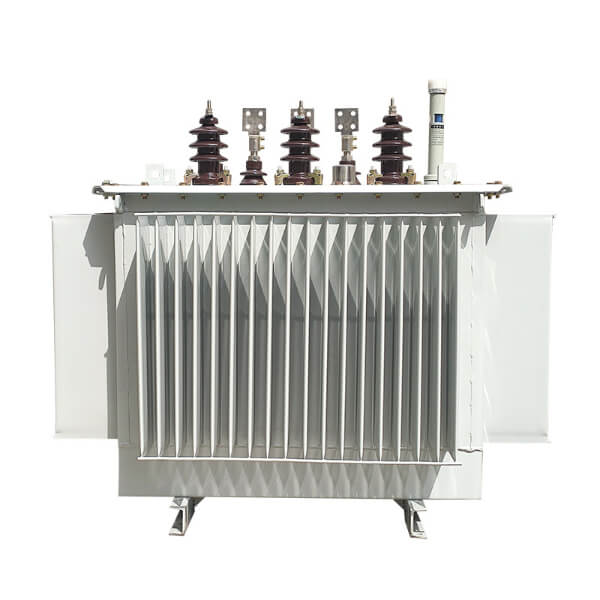

Houses three primary windings and three secondary windings, arranged to create three magnetic fluxes separated by 120°.
Connects to a three-phase AC source, delivering balanced three-phase power to industrial loads and large distribution systems.
Can be built as a single three-phase unit or assembled from three single-phase transformers.
| Feature | Single-Phase Transformer | Three-Phase Transformer |
| Core Design | Single limb or toroidal iron core | Three-limb core (standard) or toroidal three-phase core |
| Windings | One primary, one secondary | Three primaries, three secondaries |
| Connection Types | Simple two-wire connection | Multiple: Y–Y, Δ–Δ, Y–Δ, Δ–Y, zigzag, etc. |
| Phase Shift | No inherent phase shift | 120° phase displacement between outputs |
| Size and Weight | Compact, lighter for low power ratings | Larger and heavier, but consolidates three functions into one unit |
Three-Limb Core:
Central limb carries one phase’s flux, while side limbs share the other two phases. It is cost-effective but can exhibit higher core losses.
Toroidal Three-Phase Core:
Provides lower noise and reduced losses, yet demands more complex manufacturing and higher cost.
Three-Phase Units generally use fewer core lamination and copper windings per kVA than three individual single-phase units of equivalent total capacity. This leads to lower no-load (iron) losses and load (copper) losses.
Single-Phase Combinations can be economical for small capacities but become less efficient when scaled up.
Three-Phase Transformer
Higher upfront cost for a single unit.
Lower installation space requirement and simplified wiring.
Reduced energy losses over time, translating to savings in high-demand industrial settings.
Three Single-Phase Transformers
Lower per-unit cost and greater flexibility for staggered replacement or phased upgrades.
Potentially higher aggregate losses and increased maintenance for multiple units.
| Scenario | Single-Phase Transformer | Three-Phase Transformer |
| Residential Buildings | Ideal for lighting, outlets, HVAC systems | Rarely used; three-phase services often stepped down |
| Small Commercial Offices | Suitable for office equipment and lighting | May be used if three-phase equipment is present |
| Industrial Facilities | Limited to small drives or lighting circuits | Preferred for motors, heavy machinery, and main distribution |
| Utility Distribution Substations | At remote cabins or small nodes | Core component of primary and secondary substations |
| Renewable Energy Tie-Ins | Small inverters or local loads | Utility-scale solar or wind farms feeding grid |
Single-Phase Systems:
When multiple single-phase transformers serve separate phases, load imbalance can induce circulating currents and uneven heating. Proper phase-balancing and neutral management are essential.
Three-Phase Systems:
Built-in 120° phase separation handles unbalanced loading more gracefully. Specific winding connections (e.g., delta on one side, wye on the other) can manage zero-sequence currents and fault conditions effectively.
Load Type and Power Rating
For loads under 50 kVA dominated by single-phase circuits, a single-phase transformer or multiple small units may suffice.
For loads over 100 kVA or heavy three-phase machinery, opt for a three-phase transformer to ensure balanced power delivery.
Reliability and Maintenance
Single-Phase Combination: Allows maintenance on one phase without full system shutdown.
Three-Phase Unit: Simplifies overall system but requires full offline servicing if one phase fails.
Space and Installation
Three-phase transformers occupy less footprint compared to three separate single-phase units and reduce cable runs.
Energy Efficiency Goals
For long-term energy savings in industrial plants, three-phase transformers typically offer better overall efficiency.
Budget and Phased Deployment
Smaller operations with limited capital may prefer single-phase units with incremental upgrades, while larger facilities benefit from a one-time investment in a three-phase solution.
Choosing between a single-phase and a three-phase transformer hinges on capacity requirements, load characteristics, space constraints, and total cost of ownership. Single-phase transformers excel in simplicity and flexibility for light-duty applications, whereas three-phase transformers deliver superior performance, efficiency, and compactness for heavy industrial and utility-scale power distribution. By aligning transformer selection with project specifications and long-term operational goals, engineers can optimize performance, reduce losses, and achieve reliable power delivery.
