Comprehensive Guide to Transformer Noise Reduction: Mechanisms, Measurement, and Mitigation Strategies

Introduction

Transformer noise poses challenges in both residential and industrial environments, driven by magnetostriction in cores, mechanical resonances, and cooling systems. Unchecked noise can lead to regulatory non‑compliance, community complaints, and reduced equipment lifespan. This article delves into the physical origins of transformer noise, outlines international measurement standards, and presents a suite of both passive and active control strategies. Real‑world examples and an end‑to‑end implementation roadmap will help engineers and facility managers select and apply the most cost‑effective solutions.

1. Physical Origins of Transformer Noise

1.1 Magnetostriction in the Core

Alternating magnetic fields induce dimensional changes in silicon‑steel laminations. Typical vibration frequencies correspond to the utility’s fundamental (50 Hz or 60 Hz) and its harmonics (100 Hz, 150 Hz, etc.). Depending on the material grade and lamination orientation, peak displacement amplitudes range from 0.5 μm in small transformers to over 3 μm in large units, generating the characteristic “hum.”

1.2 Eddy‑Current‑Induced Distortions

Imperfect interlaminar insulation can create additional eddy currents, leading to localized heating and differential expansion. These micro‑bends introduce secondary vibration modes that contribute broadband noise.

1.3 Structural Resonances

Bolted joints, core clamping systems, and support frames may exhibit resonant modes if not properly pre‑tensioned or damped. Resonance amplification can increase sound pressure levels by 5–10 dB at specific harmonic frequencies.

1.4 Cooling System Contributions

Fans and oil pumps generate aerodynamic and mechanical noise. High‑speed fan blades produce broadband high‑frequency sounds, while pump vibrations can couple through piping and foundations.

2. Quantifying and Standardizing Noise

2.1 Key Metrics

• Equivalent Continuous Sound Level (LAeq): Averaged over 30–60 seconds.

• Sound Power Level (LW): Normalized to free‑field conditions for benchmarking.

• Frequency Analysis: 1/3‑octave or full‑octave spectra to isolate tonal components.

• Vibration Spectrum: Acceleration measurements (0.1–1 g range, ≤0.001 g resolution) on core and frame.

2.2 Measurement Standards

• IEC 60076‑10: Defines test setups and reporting formats for transformer noise.

• GB/T 10229‑2012: Specifies permissible noise levels by transformer capacity and installation zone (residential vs. industrial).

3. Passive Mitigation Techniques

3.1 Material Selection

• Low‑Magnetostriction Silicon Steel: Reduces excitation at the source (3–5 dB gain).

• Damping Coatings and Sandwich Laminates: Introduce viscoelastic layers to absorb vibrational energy.

3.2 Structural Enhancement

• Pre‑Tensioned Clamping Systems: Improves contact stiffness and minimizes gap‑induced rattling (2–4 dB improvement).

• Optimized Bolt Torque Patterns: Prevents uneven pressure and local resonance hotspots.

3.3 Vibration Isolation

• Elastomeric Pads or Spring Mounts: Isolate core and tank from foundations, cutting transmitted vibration by 4–8 dB.

• Base Frame Decoupling: Use of neoprene or engineered spring assemblies to break vibration paths.

3.4 Acoustic Barriers

• Enclosures and Acoustic Screens: Incorporate absorptive panels (5–10 dB reduction) while ensuring adequate ventilation.

• Corrugated Louver Walls: Combine sound attenuation with airflow to maintain cooling performance.

4. Active Noise Control (ANC)

Active systems deploy microphones and accelerometers to capture noise signatures in real‑time. Digital signal processors generate anti‑phase acoustic waves via loudspeakers, targeting the fundamental and low‑order harmonics. While ANC offers 6–12 dB of reduction at 50–150 Hz, it demands careful tuning, reliable power, and ongoing maintenance to adapt to structural changes and airflow variations.

5. Real‑World Case Studies

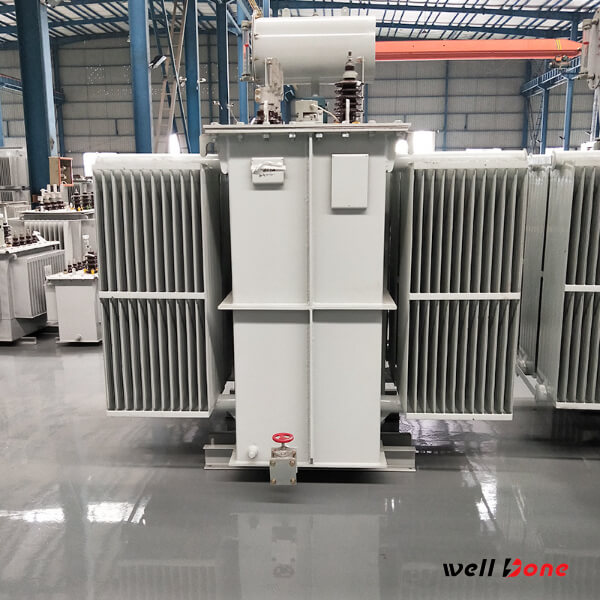

5.1 Residential Substation (2000 kVA Oil‑Filled)

• Baseline: LAeq = 68 dB A (full load) in a noise‑sensitive neighborhood.

• Interventions:

1. Low‑magnetostriction laminations (–3 dB)

2. Helical spring isolators (–5 dB)

3. Perforated acoustic enclosure (–6 dB)

• Outcome: Achieved 54 dB A, comfortably below the 60 dB A limit.

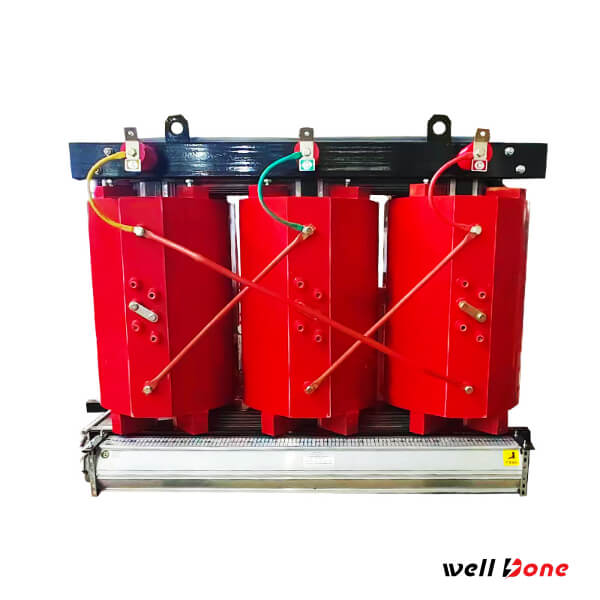

5.2 Industrial Complex (500 kVA Dry‑Type)

• Baseline: 58 dB A at 1 m.

• Interventions:

1. Clamping torque optimization (–2 dB)

2. Low‑noise brushless DC fans (–4 dB)

3. Pilot ANC array (–5 dB)

• Outcome: 47 dB A with no adverse effect on thermal performance.

6. Implementation Roadmap and Cost Considerations

Typical noise‑mitigation packages cost 3–8 % of transformer capital expenditure, offering a payback period of 2–5 years through reduced community complaints, compliance with regulations, and extended equipment life.

Conclusion

A structured approach—beginning with precise measurement, followed by source‑level mitigation, structural isolation, and, where necessary, active control—yields the best results. Prioritizing low‑magnetostriction materials and robust clamping systems provides cost‑effective baseline noise reduction. For environments with stringent acoustic demands, acoustic enclosures and ANC deliver additional gains, provided thermal management is preserved. Regular maintenance and periodic re‑calibration ensure that noise‑control investments continue to perform over the transformer’s operational life.
