Tailored Maintenance Strategies for Common Outdoor Transformer Types

Introduction

Outdoor transformers come in various designs—each with unique operating environments and maintenance requirements. This guide integrates general best practices with tailored strategies for four common outdoor types:

1. Pad‑Mounted Transformers

2. Pole‑Mounted Transformers

3. Oil‑Filled Distribution Transformers

4. Dry‑Type Outdoor Transformers

By combining universal safety protocols, inspection routines, and diagnostic testing with type‑specific tips, you’ll ensure optimal performance and longevity across your transformer fleet.

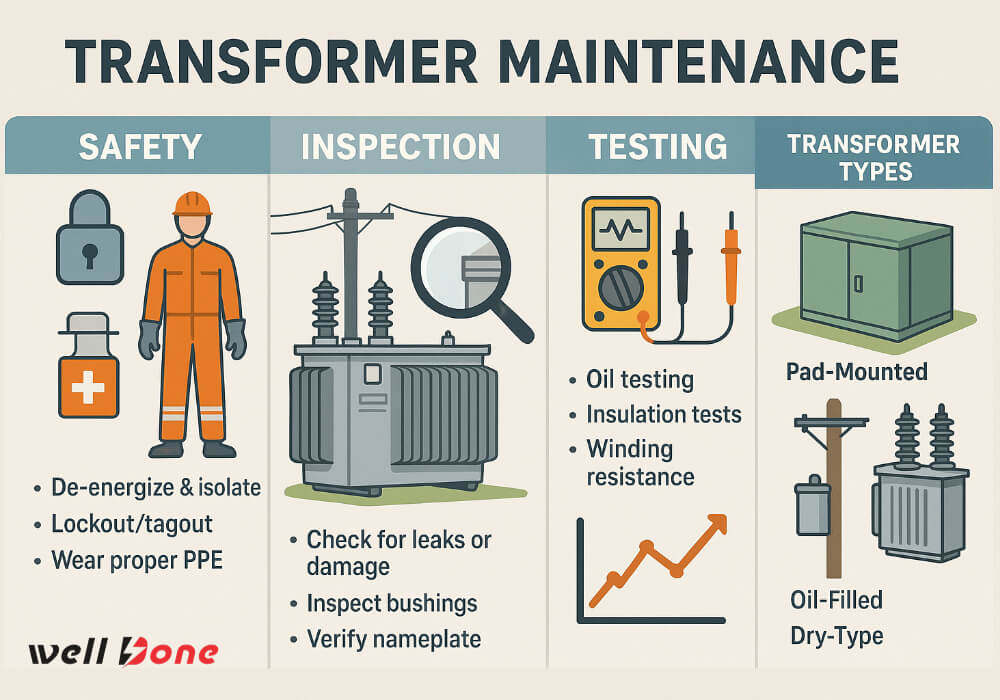

1. Universal Maintenance Foundations

Before diving into type‑specific guidance, apply these core practices to every transformer:

• Safety Protocols (LOTO & PPE): Always de‑energize units and use arc‑flash–rated gear.

• Visual Inspections: Biannual checks of tanks, bushings, relays, and nameplates.

• Oil Analysis & Testing: DGA, dielectric breakdown, moisture, and acidity tests (oil‑filled units).

• Electrical Diagnostics: Megger, turns ratio, power factor, and winding resistance tests.

• Documentation & Trends: Record all findings in a CMMS or transformer‑focused platform.

Adjust inspection frequency based on load profiles, ambient conditions, and criticality.

2. Pad‑Mounted Transformers

Sealed, ground‑level units often found in residential and commercial areas.

2.1 Key Characteristics

• Fully enclosed, tamper‑resistant design

• Usually oil‑filled with internal load tap changers

• Buried secondary cables accessed via vault

2.2 Maintenance Focus

1. Environmental Seals: Inspect door gaskets and pad seals annually to prevent moisture ingress.

2. Bushing Access Ports: Check secondary cable terminators for corrosion and tighten connections.

3. Breather & Conservator: If equipped, replace silica gel and verify nitrogen charge.

4. Thermal Monitoring: Use infrared scans to detect hot spots around vault openings and external panels.

2.3 Common Issues & Remedies

• Cable Vault Moisture: Ensure drainage channels are clear; install sump pumps if needed.

• Internal Pressure Build‑Up: Vent per manufacturer specs; verify pressure relief valves.

3. Pole‑Mounted Transformers

Elevated single‑phase or three‑phase units on utility poles.

3.1 Key Characteristics

• Exposed to weather extremes and wildlife

• Often smaller kVA ratings (25–150 kVA)

• Accessible only by bucket truck or climbing

3.2 Maintenance Focus

1. Rust & Corrosion: Inspect mounting brackets, shackles, and tank surfaces for corrosion; repaint and coat as needed.

2. Bushing and Jumper Connections: Tighten hardware; inspect jumper insulators for cracks or tracking.

3. Oil Level & Breather: Check sight‑glass; replenish oil and replace breather periodically.

4. Animal Guards: Maintain and replace wildlife protectors to prevent short‑circuits.

3.3 Common Issues & Remedies

• Lightning Damage: Install or inspect surge arresters at pole top; replace damaged units promptly.

• Insulator Flashover: Clean insulators with proper solvents and inspect for erosion.

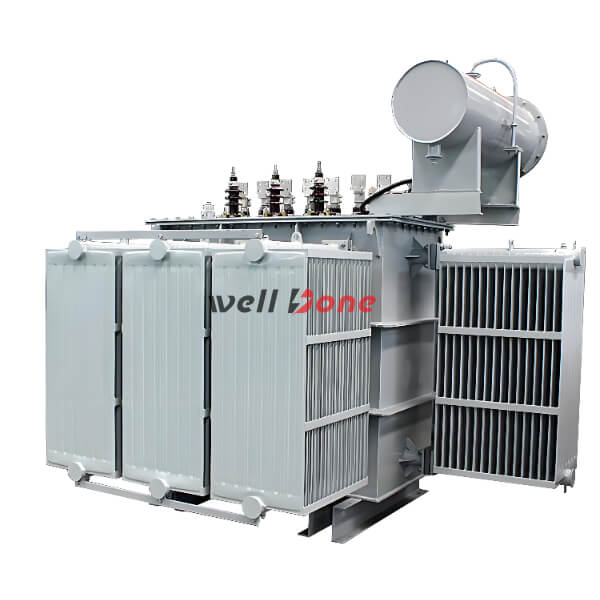

4. Oil‑Filled Distribution Transformers

Standard pad or pole‑mounted units with liquid insulation and cooling.

4.1 Key Characteristics

• Large radiators or cooling fins

• Often equipped with load tap changers

• Significant oil volume (~200–1,000 L)

4.2 Maintenance Focus

1. Detailed Oil Sampling: Perform DGA more frequently (semiannual for critical loads).

2. Radiator Leak Checks: Pressure‑test radiator loops and inspect gaskets at joints.

3. Tap Changer Oil Compartment: Sample LTC oil separately; check contact wear.

4. Cooling Fan Performance: Verify fan operation and interlocks under simulated heat conditions.

4.3 Common Issues & Remedies

• Oil Degradation: Schedule vacuum dehydration and clay treatment when acidity rises above thresholds.

• Tap Changer Failure: Replace diverter switch contacts after reaching rated operation cycles.

5. Dry‑Type Outdoor Transformers

Cast resin or vacuum‐encapsulated units without liquid coolant.

5.1 Key Characteristics

• Insulation in solid resin or encapsulation

• Safer in fire‑sensitive or environmentally regulated areas

• Lower maintenance requirement for fluid systems

5.2 Maintenance Focus

1. Airflow & Ventilation: Keep louvers and vents free of debris; maintain clearance zones.

2. Surface Cleaning: Remove dust, pollen, and contaminants from coil surfaces using low‑pressure air.

3. Insulation Resistance Testing: More frequent Megger tests (annual for high‑humidity locations).

4. Humidity Control: Inspect and replace desiccant packs in compartments if present.

5.3 Common Issues & Remedies

• Partial Discharge: Use ultrasonic or UHF detectors to catch PD early in resin cracks.

• Thermal Cycling Stress: Monitor through thermal imaging and adjust load to avoid hotspots.

6. Integrating Best Practices

1. Risk‑Based Scheduling: Prioritize critical units and harsh environments for more frequent checks.

2. Predictive Analytics: Leverage oil and electrical test trends to forecast maintenance needs.

3. Customized Checklists: Create type‑specific inspection forms within your CMMS for consistent execution.

4. Training & Safety Drills: Regularly train staff on LOTO, bucket‑truck operation, and wildlife hazard mitigation.

Conclusion

By marrying universal transformer maintenance principles with targeted strategies for pad‑mounted, pole‑mounted, oil‑filled, and dry‑type units, operators can achieve higher reliability, safety, and equipment longevity. Implement these tailored routines along with robust documentation and trend analysis to keep your outdoor transformers running smoothly.
