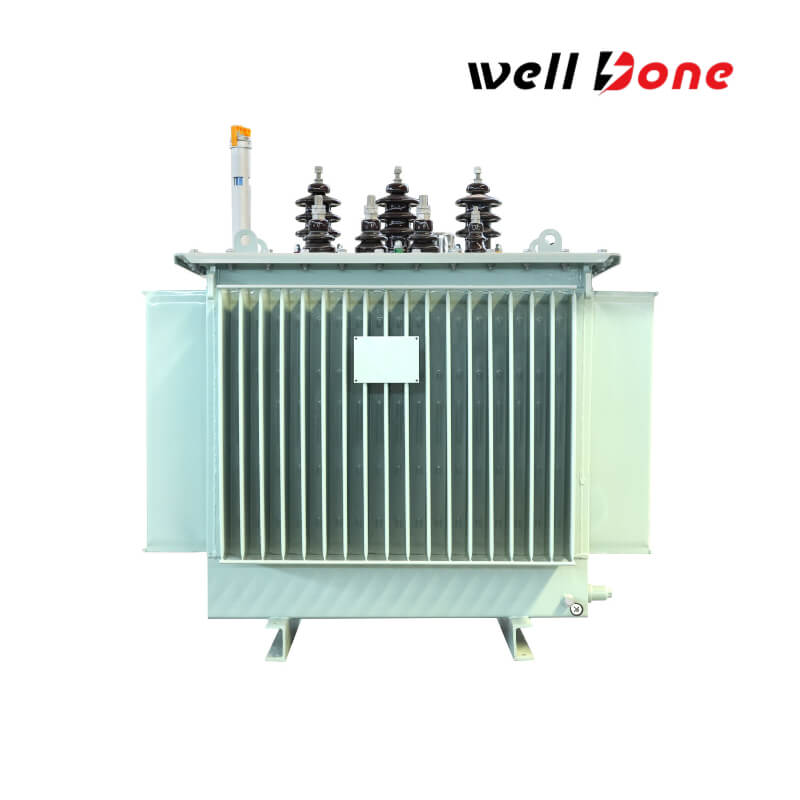

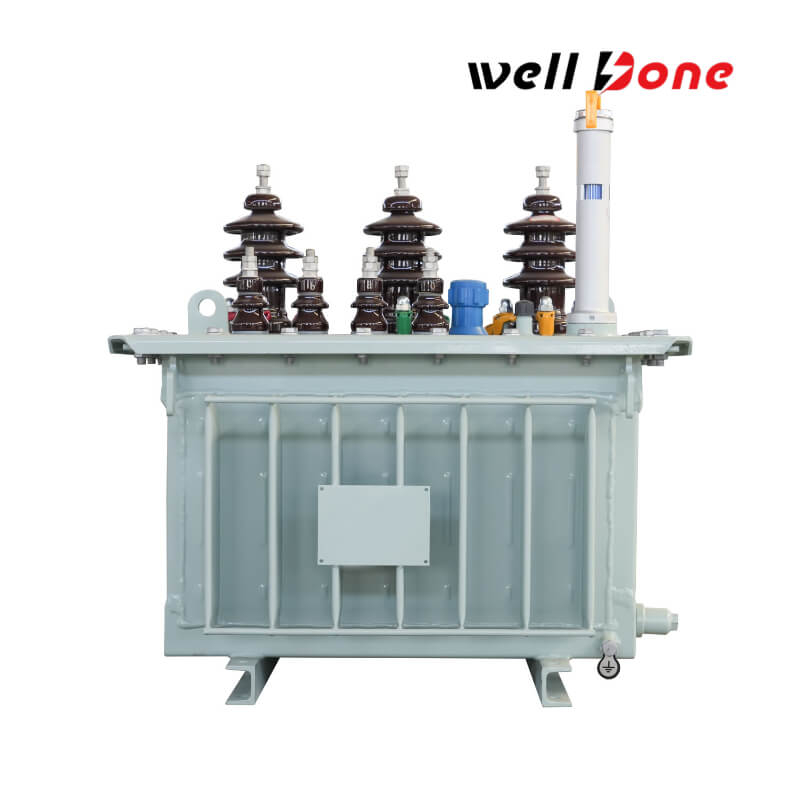

11KV 1000KVA Three Phase Low Loss Distribution Transformer

11KV 1000KVA Three Phase Low Loss Distribution Transformer

Engineered to meet modern energy demands, the 11KV 1000KVA Three Phase Low Loss Distribution Transformer is built with cutting-edge oil-immersed technology that guarantees superior voltage regulation and exceptional efficiency. Its innovative design integrates high-grade, oxygen-free copper windings with precision-engineered silicon steel cores to significantly reduce both no-load and load losses, ensuring consistent power delivery even under variable loads. The fully sealed construction, paired with an efficient natural cooling system, offers outstanding thermal management and minimizes maintenance requirements, making it ideal for both industrial facilities and urban power networks. With its robust, low-loss performance and sustainable design, this transformer is the optimal solution for next-generation power distribution challenges.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Core System
Design: Features a 45° full bevel joint step-lap core structure made from cold-rolled grain-oriented silicon steel, ensuring low no-load losses and enhanced vibration resistance.
Reinforcement: The core is specially reinforced to maintain structural stability during transportation and operation.

Winding System
High-voltage Winding: Wound with insulated copper wire using patented technology to improve lightning resistance, suitable for voltage levels up to 20kV (customizable to 11kV as per user requirements).
Low-voltage Winding: Constructed with high-quality copper foil, rated Class A insulation, offering high mechanical strength and short-circuit resistance.

Enclosure and Sealing Structure
Sealed Design: Features a fully sealed enclosure welded by ABB robots with laser inspection, achieving a leak point pass rate of 99.99998%. The surface undergoes electrostatic spraying, providing over 100 hours of corrosion resistance and a service life exceeding 30 years.
Safety Features: Equipped with explosion-proof devices (such as pressure relief valves) and oil level indicators to ensure safe operation.

Cooling and Insulation System
Transformer Oil: Utilizes 25# or 40# transformer oil, serving both insulation and cooling purposes.

Get a Quote

Product Specifications

Rated Voltage

High Voltage Side: 11 kV

Low Voltage Side: 0.4 kV

Capacity

1000KVA（1MVA）

Phase Configuration

Three-phase

Operating Frequency

50/60Hz

No-Load Loss

830 W

Load Loss

10,300 W

Short-Circuit Impedance

4.5%

No-Load Current

0.6%

Connection Group

Dyn11

Yyn0

Standards Compliance

Meets IEC ANSI & IEEE requirements

Product Applications

Economy is more affordable

Ensures reliable electricity delivery for office complexes, retail centers, and mixed-use developments, supporting diverse energy needs.

Commercial Buildings
Ideal for manufacturing facilities requiring stable and efficient power distribution to operate heavy machinery and production lines.

Industrial Power Supply
Compatible with renewable energy systems, facilitating the connection of solar or wind power installations to the grid.

Renewable Energy Integration
Provides consistent power to hospitals, schools, and transportation hubs, maintaining essential services without interruption.

Public Infrastructure

Product Advantages

Enhanced Energy Efficiency

Incorporates advanced design to minimize energy losses, leading to reduced operational costs and improved sustainability.

Robust Construction

Built with high-quality materials and reinforced structures to withstand mechanical stresses during transportation and operation.

Flexible Voltage Compatibility

Offers customizable voltage configurations to meet various regional standards and specific application requirements.

WellDone Power Transformer Plan Drawing

FAQ

What range of transformer products do you offer and which standards do they meet?

We manufacture a diverse array of transformers including Oil-Immersed Distribution Transformers, Dry Type Transformers, Power Transformers, Three Phase Pad Mounted Transformers, Single Phase Pad Mounted Transformers, Substation Transformers, and Pole Mounted Transformers. Our technical team, with nearly 20 years of industry experience, ensures that our designs comply with international standards such as ANSI, IEEE, DOE, CSA, AS, AZS, GOST, IEC, and more. Additionally, many of our products have obtained UL, cUL, and CSA certifications, affirming their safety and performance in global markets.
How do you ensure the quality and reliability of your transformers?

Our transformers are produced under a rigorous quality management system covering every stage from material selection to final testing. Each product comes with a minimum 24-month warranty, ensuring long-term safety and reliability. This commitment to quality has earned the trust of global customers and leading industry players.
What are your production lead times, customization options, and global market reach?

For standard models, our production lead time is typically 10 to 25 days, and we offer flexible OEM/ODM services for customized projects. We also tailor packaging solutions to meet specific customer requirements. Our transformers are exported worldwide—including North America, Europe, South America, Australia, Asia, and Africa—with successful partnerships involving renowned companies. For more details or personalized support, please contact us via email or WhatsApp.
