High-Density Data Center Transformers: Performance & Safety

In the era of ever-growing computational demands, data centers supporting AI workloads and cryptocurrency mining are pushing transformer technology to its limits. These high-density applications require transformers that can handle continuous full-load currents, significant harmonic distortion, rigorous thermal profiles, and uncompromising reliability. Additionally, fire and explosion protection has become paramount to safeguard personnel, equipment, and uptime.

1. Transformer Types and Use Cases

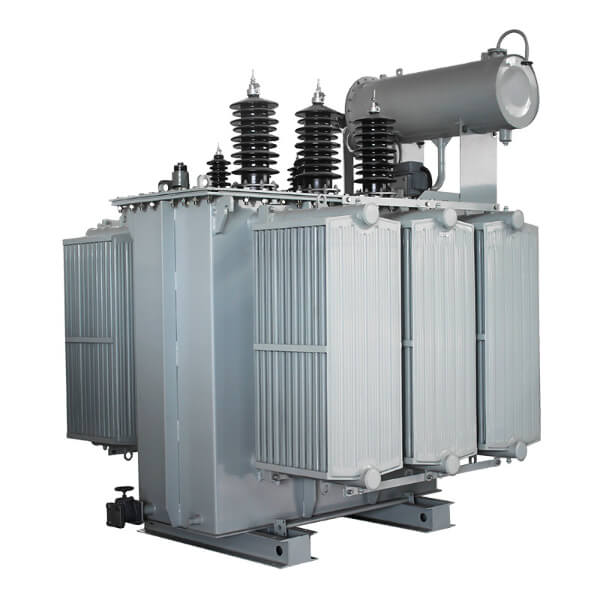

1.1 Oil-Immersed Transformers

• Cooling Methods: Oil Forced Air Forced (OFAF), Oil Forced Water Forced (OFWF)

• Advantages:

• Excellent steady-state heat removal for continuous full-load operation

• Compact footprint at high MVA ratings (2–20 MVA+)

• Superior emergency overload capacity (150 % for 1 hr, 200 % short-term)

• Ideal For: Hyperscale AI data halls, large mining farms

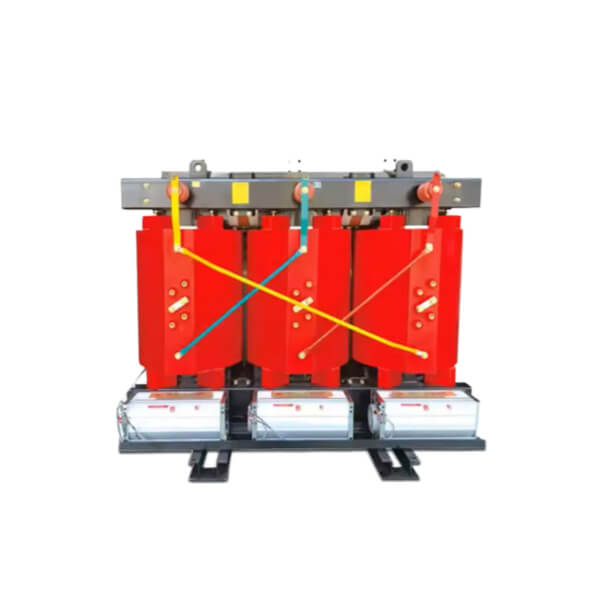

1.2 Dry-Type (Cast-Resin) Transformers

• Cooling Methods: Forced Air, Natural Convection

• Advantages:

• Zero fire-hazard (no flammable fluids)

• Lower maintenance (no oil monitoring)

• Simplified indoor installation and compliance

• Trade-Offs: Larger size per kVA and slightly lower overload rating (120 % for 1 hr)

• Ideal For: Edge colocation, modular container farms

2. Key Design Considerations

3. Harmonic Management and Power Quality

Large banks of switching-mode power supplies in crypto rigs and AI servers generate rich harmonics (3rd, 9th, 15th…). Effective strategies include:

• High K-Rated Windings: Special insulation and spacing to handle extra heating

• Passive/Active Filters: LC or active filters on the LV side to attenuate harmonics

• Oversized Neutral Conductors: To carry zero-sequence currents safely

4. Thermal Management Strategies

4.1 Oil-Immersed Units

• Forced-oil circulation through radiators and pumps

• Maintain winding rise below 65 °C for continuous operation

4.2 Dry-Type Units

• High-speed blowers and finned core design

• Often supplemented by localized air-conditioning in sealed halls

5. Fire and Explosion Protection

5.1 Tank and Enclosure Features

• Pressure-Relief Valves: Spring-loaded or fusible-link to vent excessive pressure

• Explosion Panels: Weak-panel sections directing fault gases away

5.2 Fire-Resistant Insulating Fluids

• Natural Ester Oils: Fire point > 300 °C, biodegradable

• Synthetic Esters: Enhanced oxidation stability, IEEE/NFPA compliant

5.3 Compartmentalization

• Firewalls: ASTM E119-rated walls (2–4 hr) separating transformers from critical equipment

• Double-Wall Tanks: Secondary containment for leak management

5.4 Detection & Suppression

• DGA & Buchholz Relays: Early fault detection

• Clean-Agent Systems: Novec™ 1230 or CO₂ nozzles for fast suppression

• Smoke/Heat Detectors: Integrated with BMS/SCADA

5.5 Compliance Standards

• IEEE C57.12.x series, IEC 60076-11, NFPA 850, UL 1561/1562

6. Control, Monitoring, and Maintenance

• Digital Monitoring Modules: Real-time temperature, oil level, gas analysis

• Remote Tap-Changer Control: Automated voltage adjustment

• Predictive Maintenance: Oil sampling, DGA, infrared thermography

• Modular Redundancy: Parallel units with automatic or manual load transfer

7. Future Trends

• Integration with Energy Storage: Bidirectional flow capability for behind-the-meter batteries

• Hybrid GIS-Transformer Modules: Containerized, gas-insulated switchgear plus transformer skids

• Eco-Design Advances: Amorphous cores, leak-proof tanks, biodegradable fluids

• AI-Driven Diagnostics: Machine-learning fault prediction and adaptive load balancing

High-density data center applications—ranging from AI clusters to cryptocurrency mining farms—demand transformers engineered for continuous full-load operation, robust harmonic mitigation, and stringent fire/explosion protection. Selecting the right combination of oil-immersed or dry-type design, advanced cooling, K-rating, and compliance measures ensures maximum uptime, energy efficiency, and safety. By staying ahead of emerging trends in thermal management, monitoring, and eco-friendly materials, facility operators can optimize performance and future-proof their power infrastructure.
