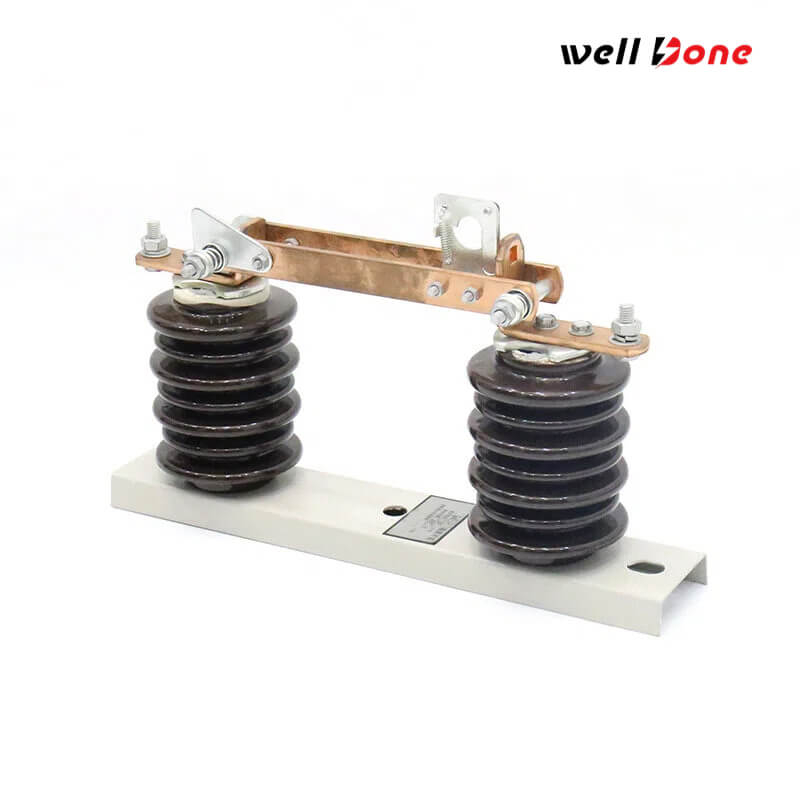

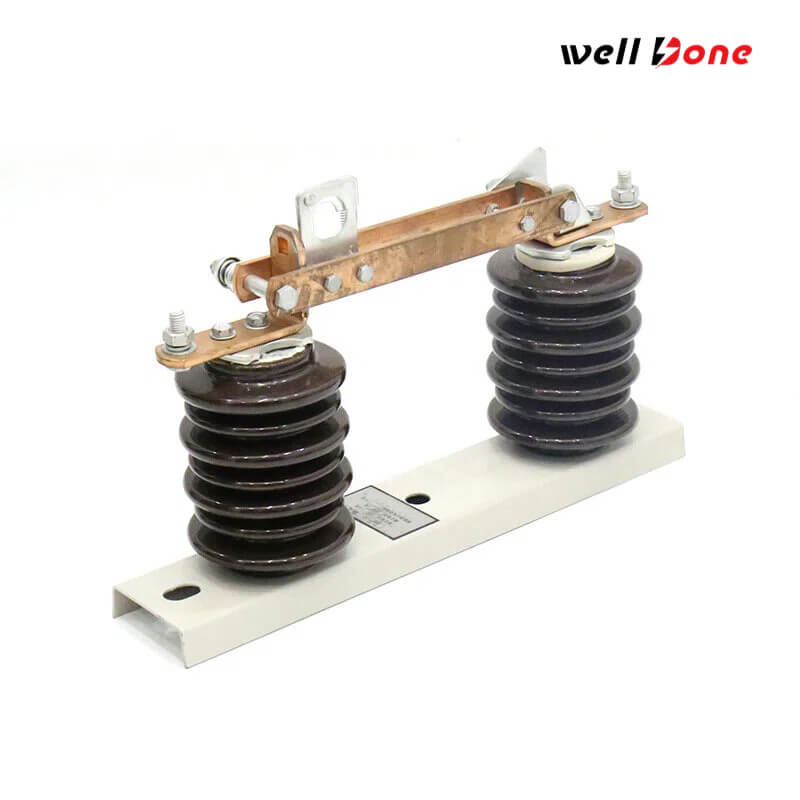

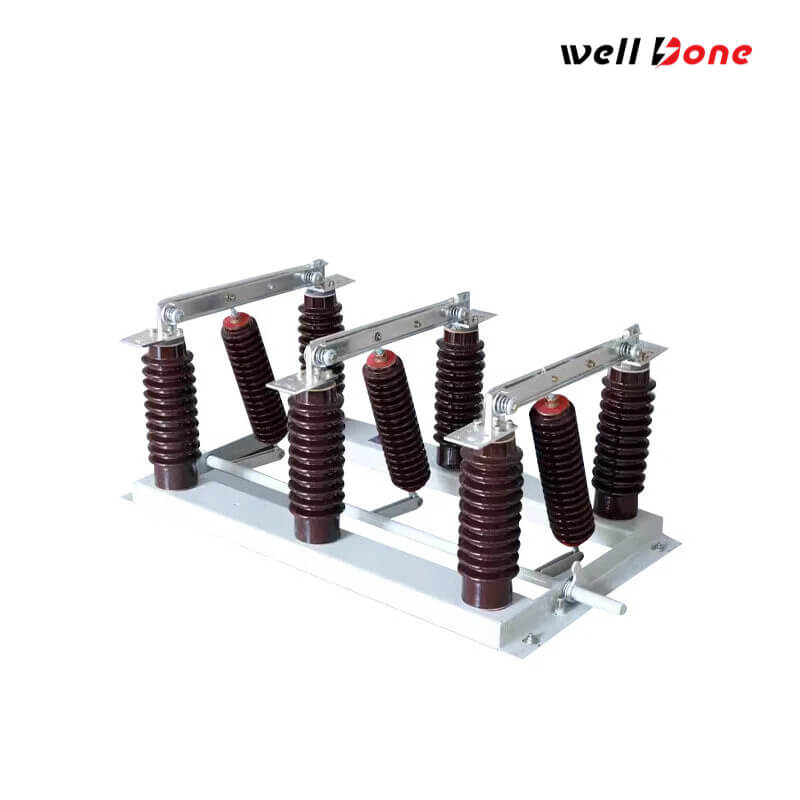

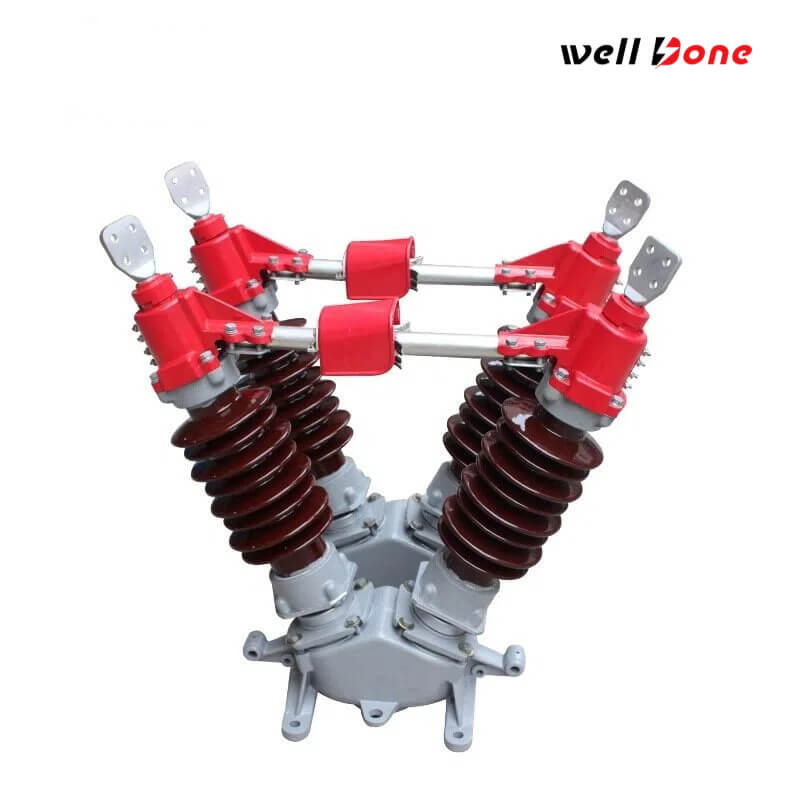

High-voltage Disconnector

High-voltage disconnector are mechanical devices used to isolate electrical equipment from energized networks and provide a clearly visible open gap for safe inspection and maintenance; governed by IEC 62271-102 for AC disconnectors and earthing switches above 1,000 V, they are commonly available from 36 kV to 800 kV with rated currents up to 5,000 A, and are designed for isolation duties rather than load switching. For substations and EPC projects, their visible, lockable separation point improves safety during maintenance, supports bay sectionalizing and earthing procedures, and is offered in center-break, double-side-break, pantograph, and vertical-break configurations with manual or motorized operation, auxiliary switches, and pre-assembled designs that help shorten commissioning time.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Operating mechanism — manual hand lever or motor drive, selected by operating philosophy and substation automation level.

Earthing switch — optional built-on or freestanding earthing device to ensure the isolated section is fully discharged and grounded.

Auxiliary switch contacts — used for interlocking, position indication, and remote status feedback in control schemes.

Base frame and mounting hardware — factory frame, support insulators, connecting rods, and installation brackets for indoor or outdoor mounting.

Anti-condensation heater — helps keep the operating cabinet dry in humid or coastal environments.

Local position indicator — clear open/close visual indication for field crews.

Interlock kit — mechanical or electrical interlocks to prevent unsafe switching sequences.

Control cabinet / drive housing — stainless or coated enclosure for motor drive, auxiliary switch, and terminal wiring.

Get a Quote

Product Specifications

Product function

mechanical isolation and visible disconnection of high-voltage equipment; not a load-breaking device for normal load current.

Standards

IEC 62271-102 and IEC 62271-1; IEEE, GOST, and GB can be met on request.

Typical voltage class range

36 kV to 800 kV across manufacturer portfolios.

Rated current

up to 5,000 A in common high-voltage ranges.

Short-time withstand

up to 80 kA for 1 second in common designs.

Service frequency

up to 60 Hz.

Installation

suitable for both indoor and outdoor substations.

Construction types

center-break, double-side-break, pantograph, and vertical-break variants.

Operating mode

manual drive or motor drive with pre-adjusted assembly options.

manual drive or motor drive with pre-adjusted asse

maintenance-free contact systems and pre-tested assemblies are commonly offered to simplify setup and reduce service intervention.

Product Applications

Economy is more affordable

used at bus sections and bay interfaces so a line or transformer can be taken out of service without shutting down the entire yard; this is a direct extension of its isolation function and visible-gap safety role.

Transmission substation bus isolation
positioned ahead of power transformers so crews can safely isolate the unit before inspection, oil work, or bushing replacement; this is a common substation use case inferred from its role as a fully de-energizing isolation device.

Transformer bay maintenance isolation
applied where equipment must be disconnected for maintenance or seasonal operation without significant load interruption, especially in AIS substations.

Capacitor bank and reactor bay switching
used to sectionalize feeder circuits, isolate collector bays, and provide visible safety gaps during planned outages in wind, solar, and utility interconnection projects.

Renewable and utility collector substations

Product Advantages

Visible isolation for safer maintenance

the open-gap design gives crews a clear, physical confirmation that equipment is separated from the network before work begins.

Low-maintenance, long-life design

maintenance-free contact systems, pre-adjusted assemblies, and routine-tested mechanisms help reduce lifecycle service effort and speed commissioning.

Flexible substation integration

multiple construction types, indoor/outdoor suitability, manual or motor drives, and optional earthing switches make the switch easy to adapt to different grids and site layouts.

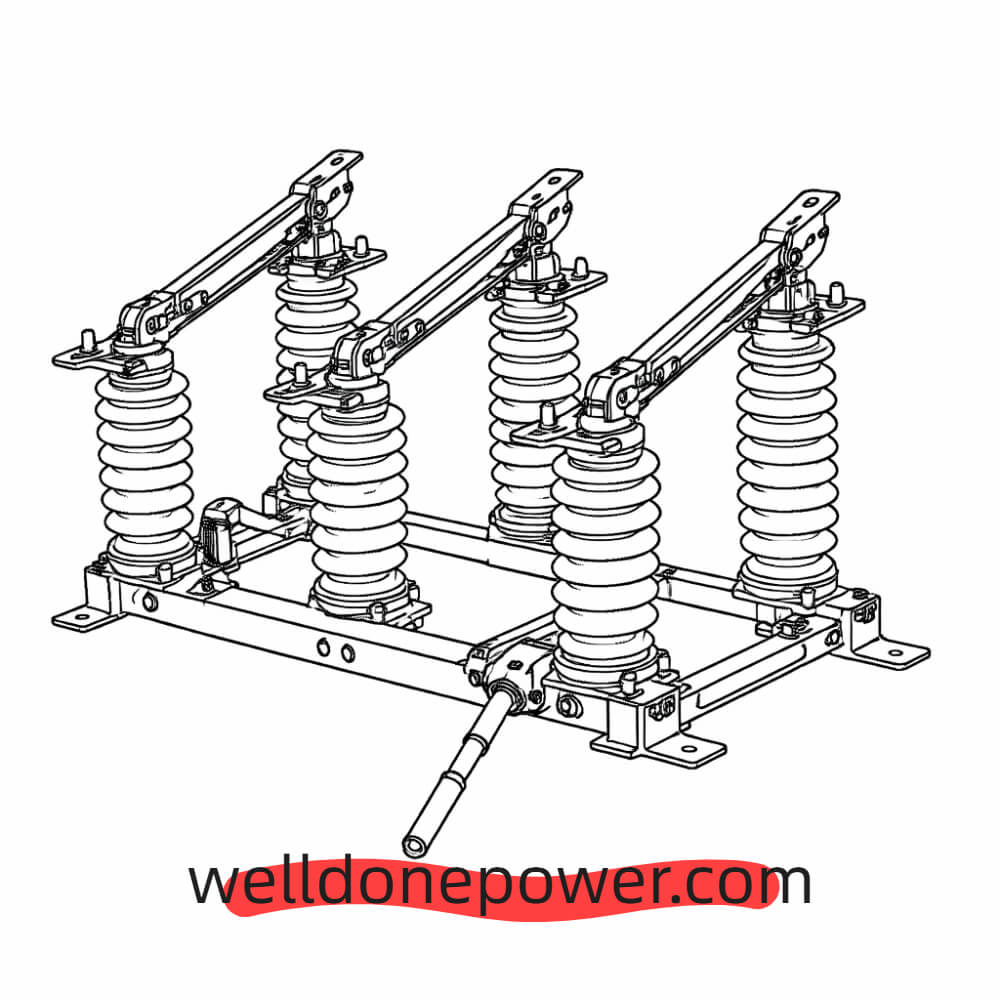

WellDone High-voltage Disconnect Switch Plan Drawing

FAQ

What does a high-voltage disconnector do?

It isolates equipment from the power system and provides a visible open gap for safe maintenance.
Can it interrupt load current like a circuit breaker?

No. It is made for isolation, not for switching normal load or fault currents.
Where is it usually used?

It is commonly installed in substations, transformer bays, capacitor banks, and renewable energy connection points.
