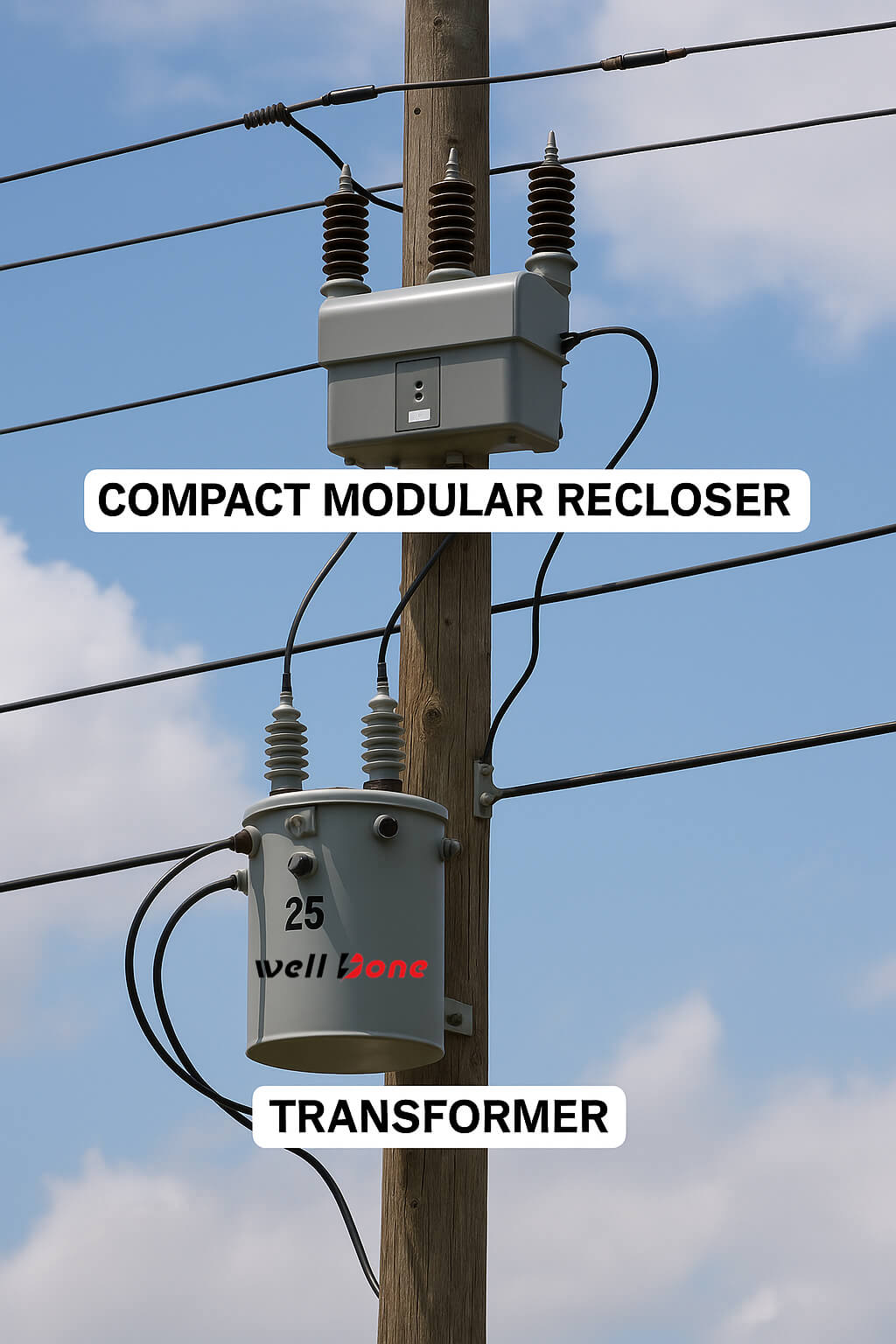

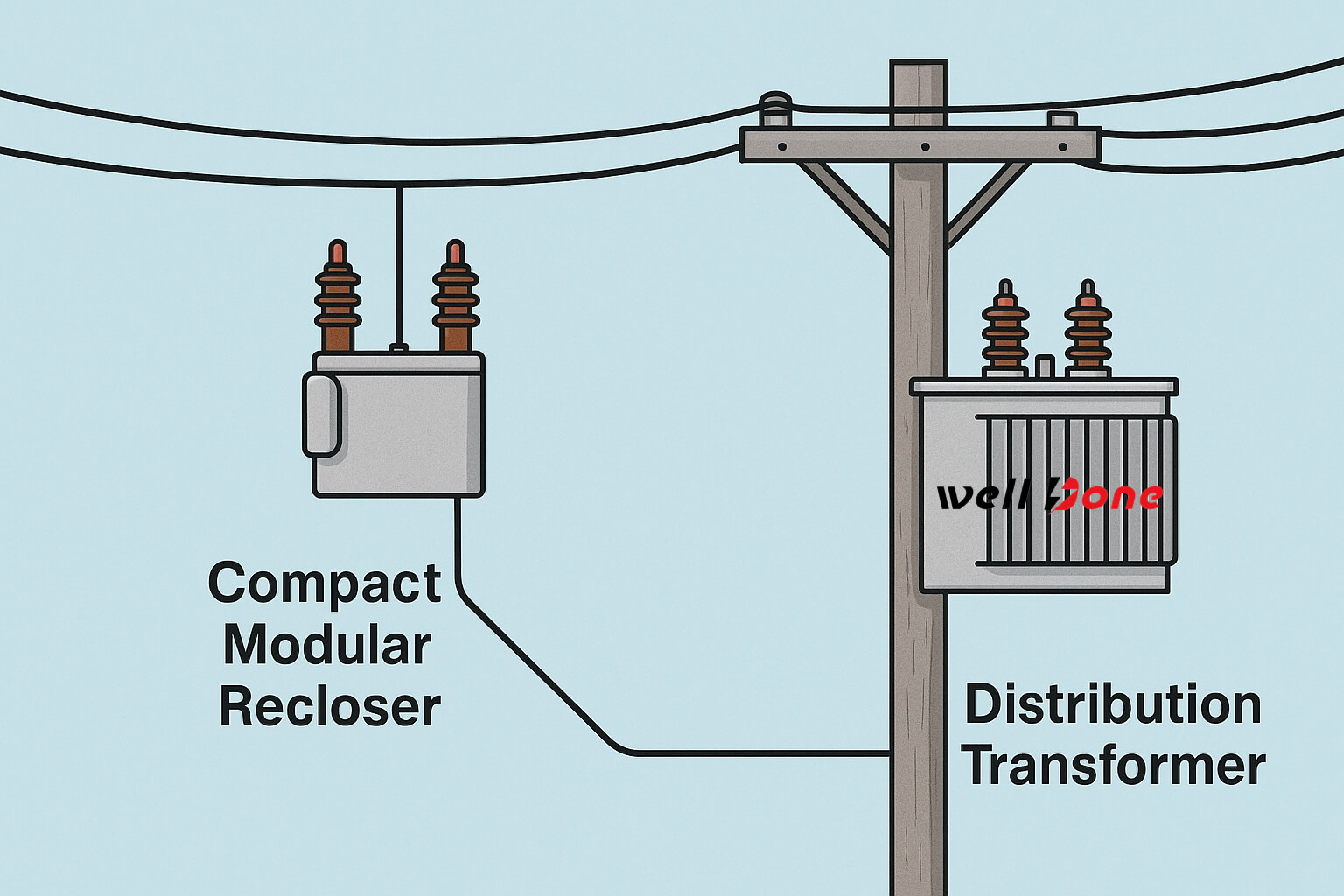

Optimizing Distribution Network Protection: Coordination Between Compact Modular Reclosers and Transformers

Summary

Distribution transformers and Compact Modular Reclosers (CMRs) form a coordinated protection and automation solution on medium-voltage overhead networks. Transformers step down voltage for end-use, while CMRs detect and interrupt faults upstream—discriminating transformer inrush, coordinating with transformer protection relays, and automatically restoring service. Together they minimize outages, protect equipment health, and support smart-grid functions such as FLISR and condition-based maintenance.

Transformer Basics

Function and Construction

Distribution transformers convert medium-voltage (typically 11–38 kV) to low-voltage (400 V–690 V) for customer use. They consist of:

• Core and Windings: Laminated steel core with primary/secondary copper or aluminum windings.

• Tank and Insulation: Oil-filled or dry-type epoxy to cool and insulate.

• Protection Elements: Buchholz relay, pressure relief, and differential protection relays (87T) for internal faults.

Operational Challenges

• Magnetizing Inrush: On energization, inrush currents up to 10× nominal can falsely trigger over-current devices.

• Aging and Overload: Thermal cycling and overload accelerate insulation aging, risking failure.

Compact Modular Recloser (CMR) Overview

Key Features

• Integrated Vacuum Interrupter & Relay: Single-phase epoxy-insulated unit rated up to 38 kV, 630 A continuous, 12.5 kA fault.

• Self-Powering: Harvests line voltage, no external battery required.

• Inrush Discrimination: Second-harmonic blocking and waveform analysis prevent mis-trips during transformer energization.

• Communications: Encrypted wireless and SCADA interfaces for remote control and event-data retrieval.

Coordination Between Transformer and CMR

Inrush Current Handling

CMR relays detect high second-harmonic content typical of transformer inrush and block tripping for up to 20 ms, allowing the inrush to decay without unnecessary service interruptions.

Protection Curve Settings

Benefits of Integrated Solution

Reliability Improvements

Automatic fault interruption and reclosing reduce SAIFI by up to 50% and SAIDI by up to 40% in pilot studies.

Transformer Life Extension

By preventing unnecessary trips and limiting fault energy, CMRs reduce mechanical and thermal stress on transformer windings, extending insulation life.

Smart-Grid Enablement

CMRs provide GPS-time-stamped fault records that feed analytics platforms for predictive maintenance and FLISR implementations.

Installation and Maintenance

• Mounting: Pole-top or cross-arm, < 50 lb; no crane required.

• Maintenance: 25-year service life with only periodic low-cost battery replacement; no oil-maintenance.

Conclusion

Pairing distribution transformers with Compact Modular Reclosers yields a robust, low-maintenance protection scheme that discriminates transformer inrush, coordinates with internal transformer relays, and supports advanced automation. This integrated approach enhances network reliability, extends transformer life, and lays the foundation for smart-grid functionalities.
