Comprehensive Guide to Transformer Insulation Protection: Methods & Materials

1. Introduction

Ensuring robust insulation in power transformers is essential to prevent dielectric breakdowns, extend asset life, and maintain grid reliability. Modern insulation protection integrates engineered materials and proactive diagnostic technologies to detect incipient faults before they escalate into failures.

2. Insulation Design Strategies

Oil-Immersed Insulation Systems

Oil-immersed transformers utilize a combination of liquid dielectric (mineral oil or ester-based fluids) and cellulose solid insulation to form a continuous dielectric medium around windings and core. The oil penetrates paper insulation, eliminating air gaps and enhancing breakdown strength while simultaneously dissipating heat.

Dry-Type and Composite Insulation

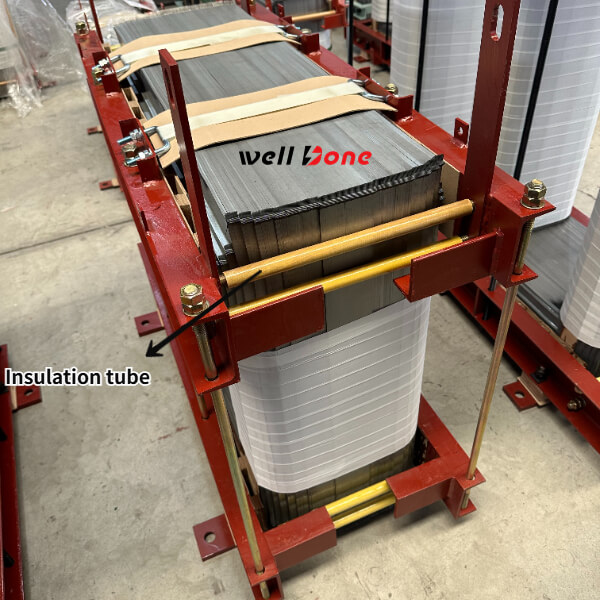

Dry-type transformers employ cast or vacuum-impregnated epoxy around windings, creating a rigid, moisture-resistant barrier that requires minimal maintenance. Epoxy-mica composites further boost thermal class and mechanical resilience, making them suitable for high-stress applications.

3. Online Monitoring and Protective Relaying

Gas-Relay (Buchholz) Protection

In oil-filled transformers, incipient faults generate decomposition gases that accumulate in the oil conservator. Gas-relay devices detect light or heavy gas accumulation, triggering alarms or tripping breakers to isolate the transformer and prevent catastrophic failure.

Partial Discharge (PD) Monitoring

PD activity signals localized insulation degradation. Portable and permanent PD monitors capture high-frequency electromagnetic emissions, acoustic waves, or HF/VHF/UHF signals to pinpoint defect locations. Continuous PD tracking enables condition-based maintenance and reduces unplanned outages.

Dissolved Gas Analysis (DGA)

DGA quantifies key fault gases (H₂, CH₄, C₂H₄, C₂H₂) dissolved in transformer oil. Trends and gas ratios, interpreted per IEC/IEEE guidelines, reveal fault types—partial discharge, thermal overheating, arcing—and guide timely interventions.

4. Preventive Maintenance Practices

Vacuum Drying and Dehydration

Moisture accelerates insulation aging and reduces dielectric strength. Vacuum drying of coils and oil degassing removes water vapor and dissolved gases, restoring the original insulating properties.

Oil Filtration and Rejuvenation

Online oil filtration systems eliminate particulate contaminants and moisture, while ester-based fluid regeneration prolongs dielectric performance. Regular oil quality testing informs filter replacement schedules and oil change intervals.

Surface Cleaning and Sealing

Routine cleaning of bushings and insulators removes conductive deposits. Inspection and replacement of gaskets and seals prevent moisture ingress and maintain oil-tight integrity.

5. Advanced Insulation Materials

• Mineral vs. Ester Oils: Ester fluids offer superior oxidation stability and environmental benefits, while mineral oils remain cost-effective and widely used.

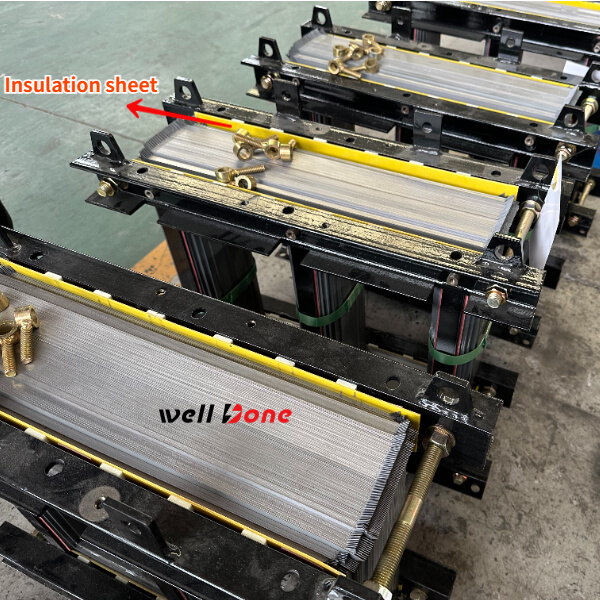

• Cellulose Papers: High-purity wood-pulp paper delivers Class A (105 °C) performance; pressboards add mechanical rigidity between windings.

• Mica-Epoxy Tapes: Combine epoxy’s adhesive properties with mica’s heat resistance, achieving Class F–H insulation (155 °C–180 °C) for critical applications.

• Polyimide Films: Ultra-thin, high-temperature films used where space is premium and thermal endurance is paramount.

Conclusion

A holistic transformer insulation protection program merges cutting-edge materials, intelligent monitoring, and rigorous maintenance to maximize reliability and service life. By selecting the right liquid dielectrics (mineral or ester oils) and solid dielectrics (cellulose papers, epoxy-mica composites, polyimide films), deploying partial discharge and DGA systems, and adhering to preventive upkeep such as vacuum drying and oil filtration, operators can detect incipient faults early and prevent catastrophic failures. To ensure the highest quality of insulation components, Welldone Transformer proudly partners with Fenhar Insulation Material Manufacturers, whose advanced product portfolio—including premium insulation boards, tubing, and specialty papers—provides the robust dielectric strength and thermal performance modern transformers demand.
