Understanding On-Load and Off-Load Tap-Changing Transformers: Key Differences and Applications

Transformers are fundamental components in electrical power systems, ensuring efficient voltage regulation to meet varying load demands. A critical aspect of transformer operation is the ability to adjust the voltage levels, which is achieved through tap-changing mechanisms. These mechanisms are categorized into two primary types: On-Load Tap-Changing Transformers (OLTC) and Off-Load Tap-Changing Transformers (NLTC). Understanding the distinctions between these two can aid in selecting the appropriate transformer for specific applications.

1. Tap-Changing Mechanisms: On-Load vs. Off-Load

• On-Load Tap-Changing Transformer (OLTC):
  An OLTC allows for voltage adjustments while the transformer is energized and supplying power to the load. This is achieved without interrupting the load current, utilizing mechanisms that prevent arcing during switching.

• Off-Load Tap-Changing Transformer (NLTC):
  An NLTC requires the transformer to be de-energized before any voltage adjustments can be made. These adjustments are typically manual and involve changing the tap connections when the transformer is not under load.

2. Structural and Operational Differences

3. Applications and Suitability

• On-Load Tap-Changing Transformers (OLTC):
  OLTCs are ideal for applications requiring continuous voltage regulation without interrupting the power supply. They are commonly used in:

• Urban substations where load demands fluctuate throughout the day.

• Industrial plants with varying power requirements.

• Renewable energy integration, such as connecting wind or solar farms to the grid.

• Off-Load Tap-Changing Transformers (NLTC):
  NLTCs are suitable for applications where load conditions are stable, and occasional voltage adjustments are sufficient. They are commonly used in:

• Rural areas with consistent load profiles.

• Applications where cost considerations outweigh the need for continuous voltage regulation.

• Systems where manual intervention for voltage adjustment is acceptable.

4. Advantages and Disadvantages

5. Efficiency and Losses

• On-Load Tap-Changing Transformers (OLTC):
  While OLTCs introduce minor switching losses due to the complexity of their mechanisms, they contribute to overall system efficiency by maintaining optimal voltage levels during varying load conditions.

• Off-Load Tap-Changing Transformers (NLTC):
  NLTCs do not incur switching losses during operation. However, prolonged periods of suboptimal voltage levels can lead to increased system losses and reduced efficiency.

6. Transformer Types and Tap-Changing Mechanisms

Transformers are essential components in electrical systems, and their design often incorporates tap-changing mechanisms to regulate voltage levels. These mechanisms can be broadly classified into On-Load Tap-Changing Transformers (OLTC) and Off-Load Tap-Changing Transformers (NLTC), based on their operational characteristics.

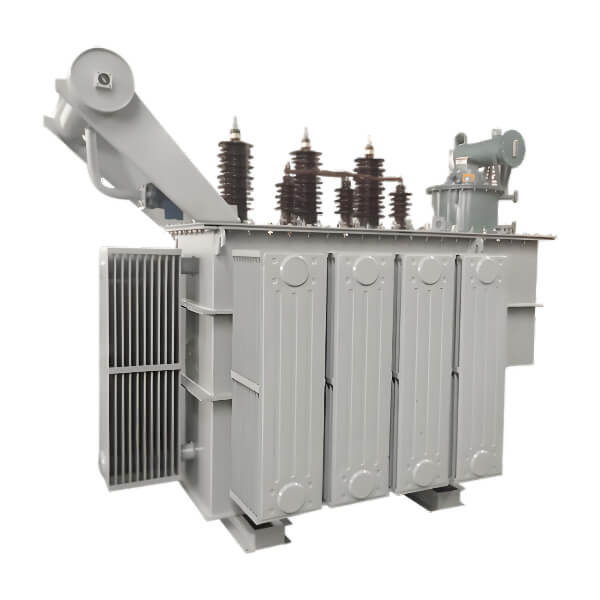

Oil-Immersed Transformers

Oil-immersed transformers are commonly equipped with On-Load Tap-Changing mechanisms. These transformers utilize mineral oil as an insulating and cooling medium, which facilitates the OLTC operation. The OLTC allows for voltage adjustments while the transformer remains energized, ensuring continuous power supply without interruption. This feature is particularly beneficial in applications where maintaining a stable voltage is crucial, such as in urban substations and industrial power systems.

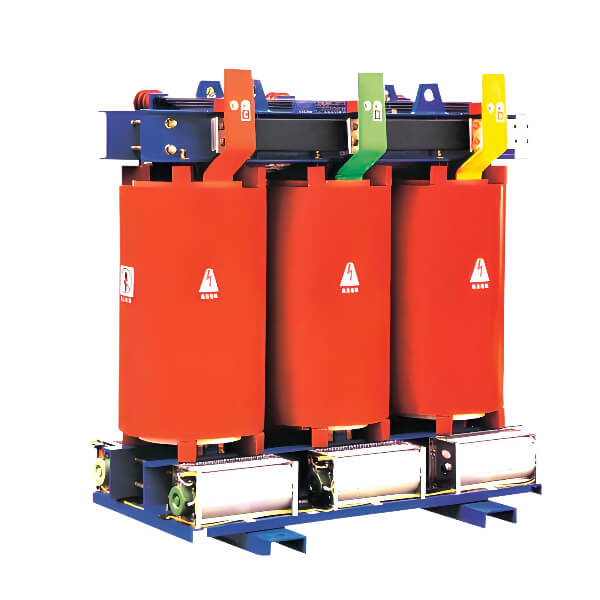

Dry-Type Transformers

Dry-type transformers, on the other hand, are typically designed with Off-Load Tap-Changing mechanisms. These transformers do not use oil as an insulating medium; instead, they rely on air or solid insulation materials. The NLTC requires the transformer to be de-energized before any voltage adjustments can be made. While this design is simpler and safer in certain environments, it necessitates a power shutdown during tap changes, which may not be suitable for all applications.

7. Conclusion

The choice between On-Load and Off-Load Tap-Changing Transformers hinges on specific application requirements, including the need for continuous voltage regulation, cost considerations, and the nature of the load. OLTCs offer advanced features for dynamic voltage control, making them suitable for complex and variable load scenarios. In contrast, NLTCs provide a cost-effective solution for stable load conditions where occasional voltage adjustments are sufficient. Understanding these differences is crucial for selecting the appropriate transformer to ensure efficient and reliable power distribution.
