Single-Phase Transformer Installation

Installing a single‑phase distribution transformer is not a daily chore for most electrical crews, yet when the job comes up, it demands the same rigour as any medium‑voltage work. Whether you are mounting a 10 kV unit on a concrete pad, setting one on a cross‑arm, or tucking it into a dedicated indoor cubicle, the sequence of actions—and the discipline behind each step—determines whether that transformer runs quietly for decades or becomes a recurring headache.

This guide walks through the entire installation lifecycle, from the first site walk‑through to the moment you sign off the acceptance papers. It focuses on practical decisions, safety buffers, and the checks that inspectors actually look for.

1. Pre‑Installation Groundwork

Site reconnaissance
Before any equipment leaves the truck, visit the location with a clear head. Look for three things: ventilation, drainage, and clearance. Outdoor spots should have at least 1.5 m of clear air around the cooling fins, no overhanging tree branches that drop sap or leaves, and a natural slope that steers rainwater away from the base. Indoors, the room must be dry, dust‑controlled, and free from corrosive vapours—battery charging areas or chemical storage rooms are absolute no‑gos. Also, verify that the ceiling or any pipework above the transformer is not prone to condensation drip.

Choosing your connection philosophy
You have three typical arrangements: independent supply (dedicated feeder), split‑phase off a larger three‑phase system, or a main‑line tap with a bypass. Each dictates different switching and overcurrent protection. Decide this upfront because it changes the hardware you will order—especially the type of changeover switch (four‑pole double‑throw knives are common for the split‑phase option).

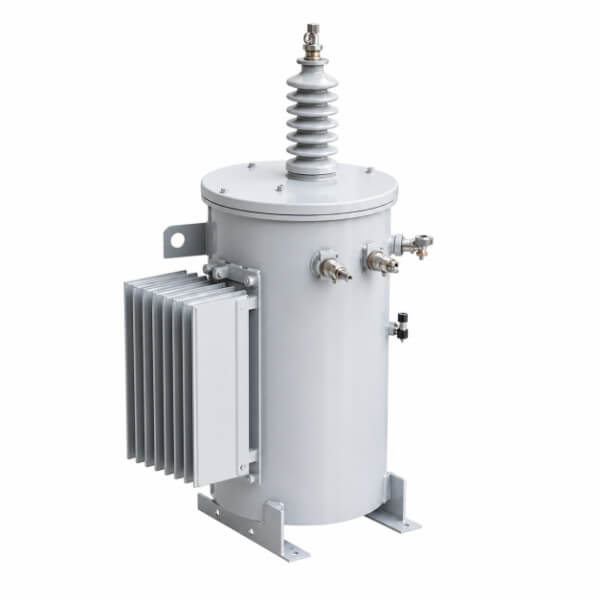

Unpacking and factory‑level checks
Open the crate with a camera ready. Document every visible surface—porcelain bushings, tank welds, nameplate ratings, and lifting lugs. Compare the serial number against the packing list. Then perform the mandatory pre‑energisation tests:

• DC resistance of each winding (record at ambient temperature)

• Voltage ratio at all tap positions

• Insulation resistance between windings and to earth (use a 2.5 kV megger)

Do not skip these even if the factory test report looks perfect. Shipping vibrations can loosen internal connections.

Tooling up
Beyond standard spanners and screwdrivers, you will need:

• A mobile crane or boom truck with a certified sling (capacity at least 1.5× transformer weight)

• Torque wrench with documented calibration

• Earth resistance tester (three‑pole fall‑of‑potential method)

• Temporary earthing clamps for the working zone

2. Rigging and Setting the Unit

Lifting discipline
Use only the designated lifting eyes—never wrap straps around the tank body or bushings. Attach equal‑length wire‑rope slings to a central spreader bar to keep the unit perfectly level during the lift. One common injury occurs when the transformer swings and strikes a worker; keep everyone at least 3 m away during the hoist.

Positioning precision
Lower the transformer slowly onto the prepared foundation or pole platform. For single‑pole mounting (typical with 12‑ or 15‑metre heavy‑duty concrete poles), align the low‑voltage terminal box to face the service drop for the shortest cable run. Allow a ±5 mm tolerance for bolt holes—if you force the unit sideways, you risk distorting the base channels.

Permanent anchorage
Secure the transformer with galvanised or stainless‑steel hold‑down bolts, torqued to the value stamped on the foundation drawing. Add anti‑vibration pads if the floor is steel or composite. Do not leave it finger‑tight and promise to “come back later”—that later never happens.

3. Wiring – Terminals, Taps, and Transfer Arrangements

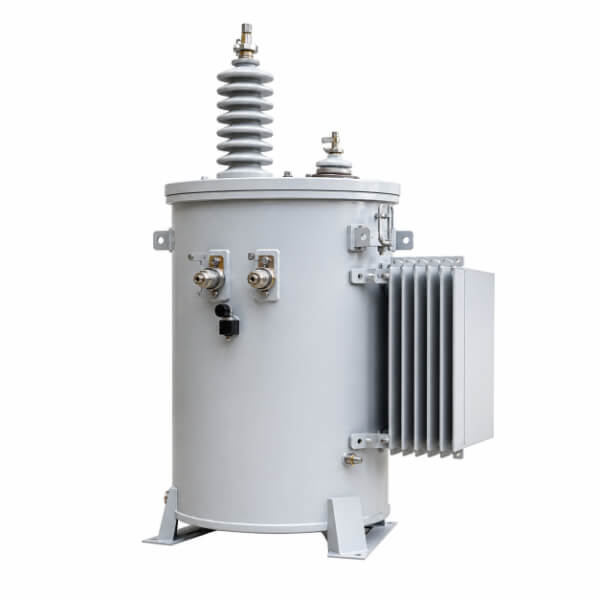

High‑voltage side
Connect the incoming feeder through a visible‑break disconnecting means—usually a drop‑out fuse cutout. The fuse link rating should be coordinated with the transformer’s inrush current (typically 8–12× full‑load for 0.1 s). Route the HV cable so it has a drip loop before entering the bushing; water running down the conductor must not reach the porcelain.

Low‑voltage side – two practical approaches

• Manual plug‑in method: For temporary or seasonal supply, you physically unbolt the existing three‑phase low‑voltage main and bolt the single‑phase transformer’s output in its place. Reverse the order for de‑energising. This is cheap but demands a strict lock‑out tag‑out procedure.

• Knife‑switch changeover: A four‑pole double‑throw switch gives you a clean, interlocked transition. Position “A” connects the three‑phase source; position “B” connects the single‑phase transformer. The neutral is switched together with the phases to avoid floating‑neutral hazards.

Earthing – the non‑negotiable step
Drive a separate earth electrode (or tie into a validated grid) and weld the transformer tank’s earth stud to the main earthing conductor using exothermic welding—compression lugs are acceptable only if crimped with a hydraulic tool. Measure the resistance; it must fall below the local utility’s threshold (commonly 5 Ω, but always check your regional code). Record the value on site before backfilling the trench.

4. Pre‑Energisation Verification

With everything bolted and terminated, walk the entire installation one more time.

• Are all cable gland nuts tight?

• Is the tap changer set to the nominal position that matches the actual service voltage?

• Have you removed all temporary shorting straps used during testing?

• Is the enclosure door securely closed and locked?

Then take a fresh insulation reading—this catches any moisture that entered during the outdoor wiring work.

5. Trial Run – Empty, Then Loaded

No‑load start
Close the HV cutout with a hot‑stick from a safe distance. Listen for the familiar “hum”—it should be even and low‑pitched. Any crackling, intermittent buzz, or acrid smell means immediate shutdown. Measure the secondary voltage at the output terminals; it should be within ±5 % of nameplate value at no load.

Loaded run
After 30 minutes of idle operation, switch on the first block of load—start with about 20 % of rating. Gradually increase to full load over the next hour. Monitor the top‑oil temperature (if oil‑filled) with an infrared thermometer; a rise beyond 65 °C above ambient warrants investigation.

The 24‑hour milestone
Consider the installation officially “commissioned” only after it has carried its normal load continuously for 24 hours without any protective device operation, abnormal noise, or oil leak. Log the voltage, current, and temperature at hourly intervals during this period—those logs become part of your handover package.

6. Documentation and Handover

Assemble a clear folder (physical and digital) containing:

• Factory test certificates and O&M manual

• Site‑recorded insulation and ratio test results

• As‑built wiring diagram, including earthing layout

• Torque‑tightening log for all critical bolted connections

• 24‑hour load profile printout

Invite the utility inspector or client representative to sign the acceptance form together. A joint sign‑off reduces later disputes about “who touched what.”

7. Ongoing Operational Reminders

Once live, the transformer is not “fit and forget.” Schedule quarterly visual inspections: look for rust on bushings, oil stains near gaskets, and vegetation growth around outdoor pads. Re‑measure earth resistance annually—soil resistivity changes with moisture and temperature. Also, keep a spare set of fuses and a desiccant breather (if fitted) on the shelf.

Final Word from the Field

Single‑phase transformer installation is about 30 % muscle and 70 % method. The muscle gets the steel in place; the method keeps it safe, test‑compliant, and reliable for years. Follow the sequence, document each check, and never rush the 24‑hour trial—that final day separates a working installation from a truly trusted one. If you are not confident in any step, call in a specialised high‑voltage crew. No schedule is worth compromising the clearances, the earthing, or the lifting rigging.
