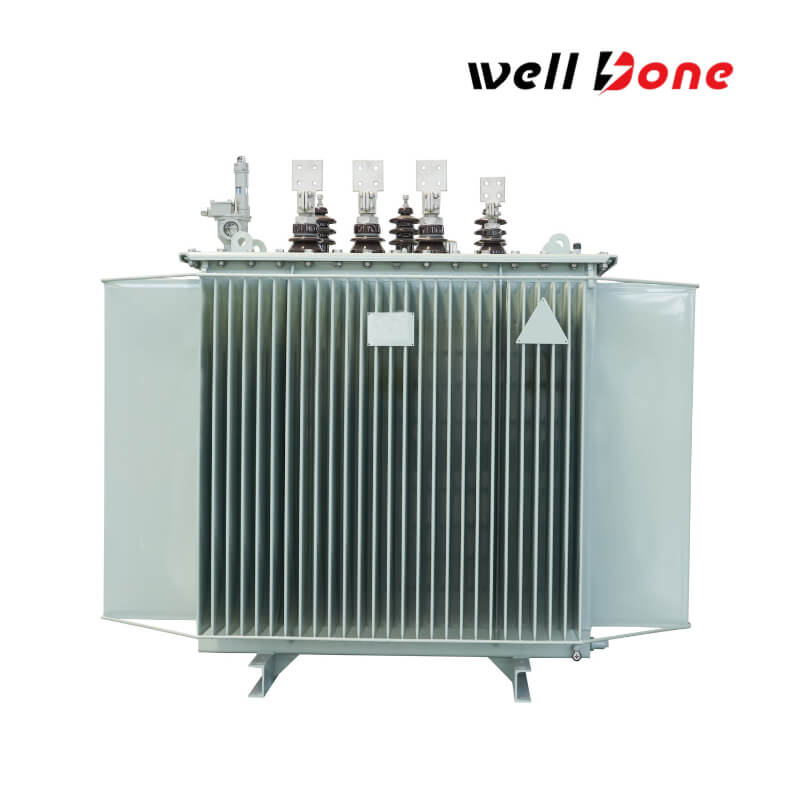

10KV 400KVA Three Phase Low Loss Distribution Transformer

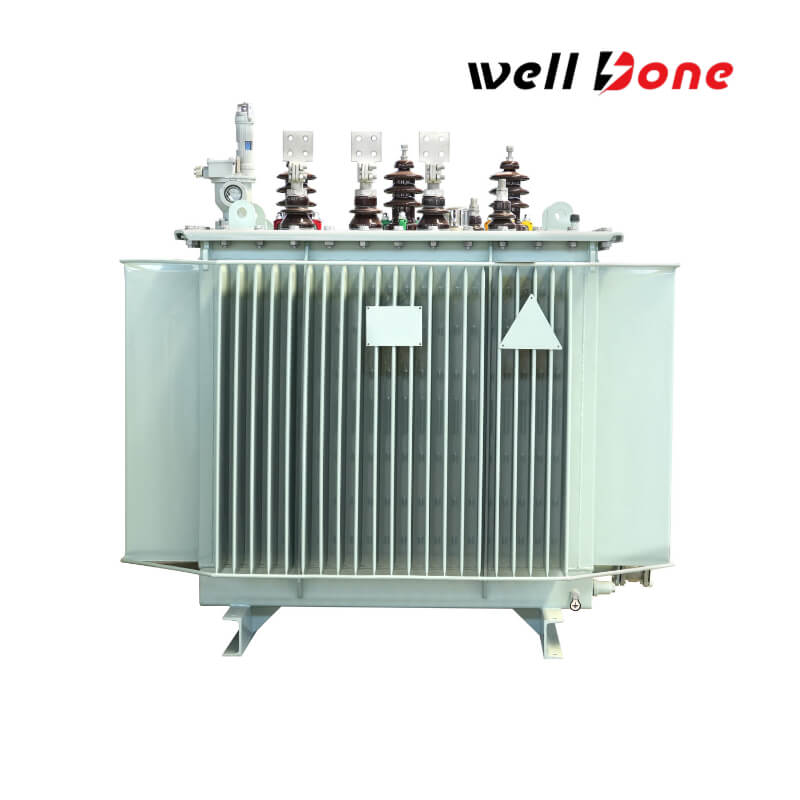

10KV 400KVA Three Phase Low Loss Distribution Transformer

The 10kV 400kVA Three-Phase Low Loss Distribution Transformer is a high-efficiency power solution designed for demanding urban and industrial applications. Utilizing advanced oil-immersed technology, it minimizes no-load and load losses, enhancing energy savings while ensuring superior thermal stability. Its core is crafted from high-quality cold-rolled silicon steel, reducing magnetic losses and boosting overall efficiency. The transformer features a fully sealed oil tank that prevents insulation degradation, extending its operational lifespan. With precise voltage regulation and low noise operation, it is an ideal choice for urban substations, commercial centers, and specialized industrial networks, delivering consistent and reliable power performance.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Core
Materials: Utilizes high-permeability cold-rolled silicon steel sheets, manufactured through full-mitered seam stacking or three-dimensional wound core technology to significantly reduce hysteresis losses and no-load current, thereby minimizing operational noise.
Processing: The core undergoes vacuum nitrogen annealing to eliminate internal stresses, enhancing electromagnetic performance.

Windings
Construction: Both high-voltage and low-voltage windings are wound with oxygen-free copper conductors or copper foil. The low-voltage windings feature a double-layer cylindrical or helical structure, while the high-voltage windings are multi-layer cylindrical, improving short-circuit resistance and electrical efficiency.
Integration: Windings are directly wound onto the core, resulting in a compact structure with high mechanical strength.

Oil Tank
Design: Features a fully sealed corrugated oil tank with a welded steel plate structure. The corrugated fins serve dual purposes of heat dissipation and oil volume compensation, eliminating the need for an oil conservator and reducing maintenance requirements.
Protection: The oil tank's surface is treated with rust removal, phosphating, and coated with triple-proof paint (rain, moisture, and salt fog resistant) to withstand humid or corrosive environments.

Cooling System
Method: Employs natural oil cooling (ONAN), relying on the thermal expansion and contraction of the corrugated fins to facilitate oil circulation without additional cooling equipment, making it suitable for outdoor installations.

Get a Quote

Product Specifications

Rated Voltage

High-voltage side: 10 kV ±5%

Low-voltage side: 0.4 kV

Rated Capacity

400KVA

No-load Loss (P₀)

≤410 W

Load Loss (Pₖ)

≤4,300 W (at 120°C)

Short-circuit Impedance (Uk%)

4.5% (default)

Vector Group

Dyn11: High-voltage delta / low-voltage star with neutral point

Yyn0: High-voltage star / low-voltage star with neutral point

Cooling Method

ONAN (Oil-immersed Natural Air Cooling)

No-load Current (%)

≤1.3%

Efficiency

≥98.5% (at full load)

Standards Compliance

Fully adheres to IEC 60076 ANSI and IEEE specifications

Product Applications

Economy is more affordable

The 10kV 400kVA transformer efficiently steps down high-voltage electricity to levels suitable for powering machinery and production lines in manufacturing facilities.

Industrial Power Distribution
Ideal for commercial establishments such as office buildings and shopping centers, this transformer ensures reliable and safe power distribution by converting high-voltage electricity to usable levels.

Commercial Energy Supply
In renewable energy installations like solar and wind farms, the transformer adjusts voltage levels to seamlessly connect with the grid, facilitating efficient energy distribution.

Renewable Energy Integration
Utilized in substations, this transformer steps down transmission voltages to distribution levels, maintaining consistent and stable power supply across the network.

Substation Enhancement

Product Advantages

Enhanced Energy Efficiency

Designed with advanced materials and construction, the transformer significantly reduces no-load and load losses, leading to improved energy efficiency and reduced operational costs.

Robust Construction for Durability

Built with high-quality cold-rolled silicon steel sheets and a fully sealed corrugated oil tank, this transformer is engineered to withstand harsh environmental conditions, ensuring a long service life with minimal maintenance.

Low Noise Operation

Incorporating design features such as a five-stage joint stacking structure and high magnetic conductivity materials, the transformer operates with significantly reduced noise levels, making it suitable for installation in noise-sensitive areas.

WellDone Power Transformer Plan Drawing
