Definition & Purpose
substation transformer is a pivotal asset in electrical grids, efficiently converting voltages between high‑level transmission and lower‑level distribution to minimize losses and ensure compatibility with end‑user equipment, while its robust design—featuring laminated cores, insulated windings, bushings, and tap changers—supports reliable, continuous operation under diverse load and environmental conditions.
Substation transformers change voltage levels between transmission (e.g., 138 kV) and distribution networks (e.g., 12 kV), optimizing power flow and reducing line losses over long distances. They are installed at both transmission substations—where generator output is stepped up—and distribution substations—where voltages are stepped down for industrial, commercial, or residential use. By enabling precise voltage conversion, they maintain grid stability and ensure safe delivery of electricity to end‑users.
The transformer core consists of stacked, insulated steel laminations forming a low‑loss magnetic path; its design directly influences efficiency and impedance characteristics. Primary and secondary windings—made of copper or aluminum conductors—are wrapped around the core; their turn ratio dictates the voltage step‑up or step‑down function.
Porcelain or composite bushings provide insulated passages for high‑voltage conductors through the transformer tank, preventing leakage and ensuring safety. The internal windings and core are immersed in dielectric fluid (mineral oil or synthetic alternatives) to suppress corona, provide electrical insulation, and facilitate heat transfer.
On‑load tap changers adjust the winding turns ratio under load to regulate output voltage within tight tolerances, compensating for grid fluctuations. Additional accessories include surge arresters for overvoltage protection, disconnect switches for isolation during maintenance, and cooling radiators or fans for thermal control.
Power transformers, rated up to several hundred MVA, operate at higher voltages (69 kV to 400 kV) in transmission substations. Distribution transformers, typically up to 10 MVA, serve local networks by reducing voltage to usable levels for consumers.
Substations are classified as transmission, distribution, or converter types; each employs transformers sized and rated for specific roles—such as stepping down 230 kV to 33 kV in urban grids or interfacing AC/DC links in HVDC systems.
Cooling designations follow IEEE codes: ONAN (Oil Natural Air Natural) for standard loads, ONAF (Oil Natural Air Forced) and OFAF (Oil Forced Air Forced) for higher capacity, and OFWF (Oil Forced Water Forced) for ultra‑high ratings.

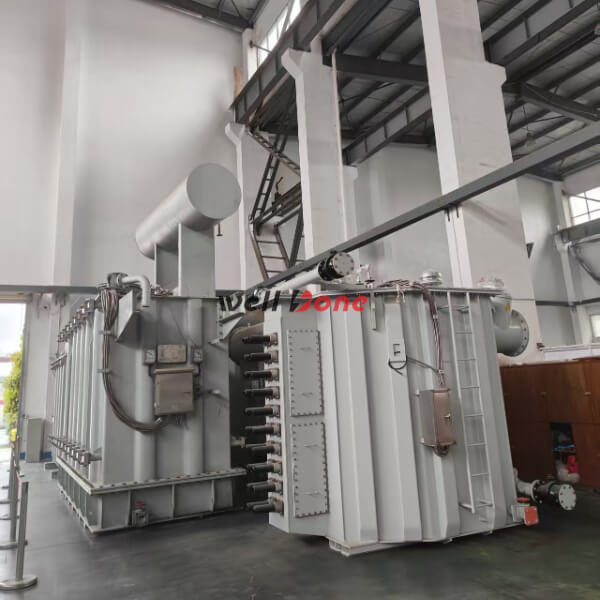

Liquid‑immersed transformers use natural convection or forced circulation of oil to external radiators, balancing thermal gradients and extending lifespan. Dry‑type transformers, cooled by ambient or forced air, eliminate oil‑related fire risks and are suited to indoor installations. Advanced gas‑enhanced and water‑cooling systems further boost heat dissipation for specialized, high‑duty applications.
Design, testing, and performance criteria adhere to IEEE C57 series standards—especially C57.12.36 for liquid‑immersed distribution substation transformers—and to IEC, UL, and NEMA regulations for safety and interoperability. Routine factory and field tests validate dielectric strength, vector group, impedance, and temperature rise per these international norms.
Utilities place substation transformers at grid nodes to manage bulk power transfers, while industries use them for plant distribution and critical operations such as data centers and manufacturing lines.
Integrated SCADA systems track key parameters—oil temperature, load current, and bushing health—enabling predictive maintenance and reducing unplanned outages. Periodic inspections include fluid dielectric tests, bushing checks, tap‑changer servicing, and cooling‑system verification to sustain reliability.
Through precise voltage conversion, robust construction, and adherence to rigorous standards, substation transformers form the backbone of modern power systems—ensuring efficient transmission, safe distribution, and resilient grid performance across diverse applications.
