Transformer Anti-Corrosion Coating Guide: ISO 12944 Standards & System Selection

1. Importance of Transformer Corrosion Protection

Transformers face corrosion threats from moisture, salt spray, industrial pollutants (SO₂, Cl⁻), and internal insulation oil (80-135°C). Oil leaks accelerate metal corrosion, risking insulation failure. Key challenges:

• Structural complexity: Steel tanks, aluminum radiators, copper coils requiring material compatibility.

• Harsh environments: Outdoor UV exposure, thermal cycling, and chemical exposure; internal oil immersion.

• Longevity: 15-20+ year service life demands exceed general industrial standards.

2. Key Factors in Coating System Selection

2.1 Voltage Class & Structure

2.2 Component-Specific Protection

2.3 Environmental Corrosivity (ISO 12944)

• C3 (Medium): Urban/light industrial → Zinc phosphate epoxy (≥160μm)

• C4 (High): Chemical/coastal → Zinc-rich epoxy (Zn≥80%, ≥240μm)

• C5-M (Extreme): Offshore → Modified zinc-rich epoxy + glass flake (≥320μm)

3. Coating Systems by Transformer Type

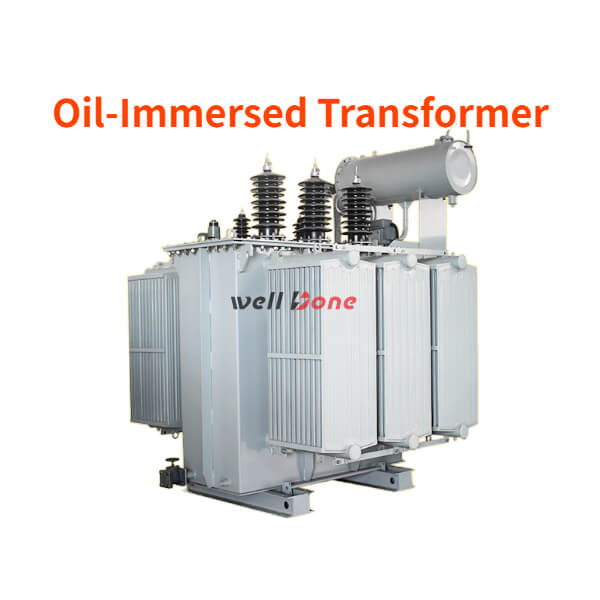

3.1 Oil-Immersed Transformer Exterior

3.2 Interior Tank Protection

• Primer: Epoxy-phenolic (post-cured at 135°C)

• Tests: ASTM D1308 (1,000hr oil immersion; adhesion ≥3MPa, weight loss <2%)

• Surface Prep: Sa2.5 blast, 50±5μm DFT

3.3 Radiator Coating Optimization

• Process: Centrifugal spin coating with low-viscosity epoxy-zinc primer

• Thickness: 30-40μm/layer (3 layers → 100μm total)

• Resin: Flexible epoxy for thermal cycling (-40°C to +120°C)

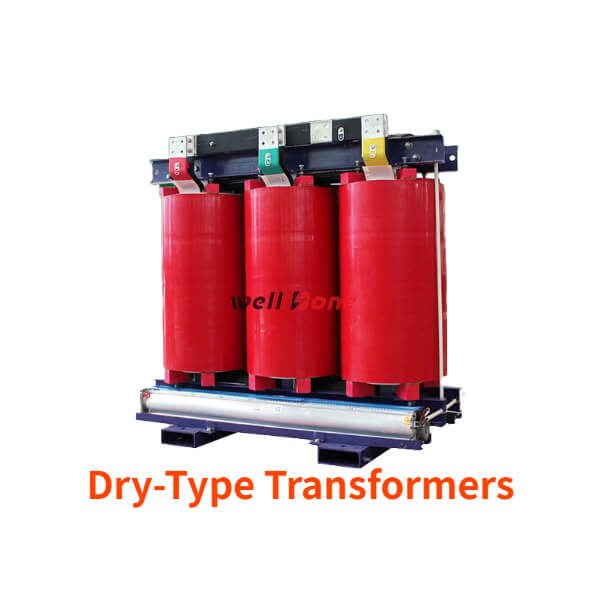

3.4 Dry-Type & Specialty Transformers

• Dry-type: Water-based H-class insulating primer (UL94 V-0, >1TΩ)

• Traction (rail): MIO-enhanced epoxy for vibration resistance

• Offshore wind: Solvent-free glass flake epoxy (Zn≥85%, ISO 20340 certified)

4. Eco-Friendly Waterborne Primers

• Water-based epoxy: VOC <50g/L, salt spray resistance >600h (e.g., CN112625554A)

• Waterborne PU: Fast-drying (<15min) for fasteners; thixotropic for vertical surfaces

5. Critical Application Steps

• Surface Prep:

• Sa2.5 blast (Ra 40-70μm)

• Alkaline degreasing (pH 9-10) for aluminum

• Primer Application:

• Strict mix ratio/induction time (e.g., 20min for zinc-rich epoxy)

• DFT control + 20% thickness at edges/welds

• Adhesion testing (ASTM D4541; ≥5MPa)

• Defect Prevention:

• Add fluorocarbon leveling agents (0.1-0.3%)

• Apply mid-coat within 24-48h

• 100% holiday detection (5V/μm) for tanks

Case Study: Coastal 500kV transformer radiator failure (25μm coating)→ Upgraded to 100μm flexible epoxy-zinc system resolved corrosion in 8+ years.

6. Future Trends

• Robotic application with real-time DFT monitoring

• High-durability waterborne coatings for C5-M

• Multifunctional nanocomposites (anti-corrosion + thermal conductivity)
