When Insulators Fail, Transformers Follow: A Practical Guide to Smarter Material Choices

Ask any substation operator about their most dreaded phone call, and odds are it involves a transformer that tripped offline overnight. Not because the core failed, not because the windings gave out—but because an insulator quietly let them down.

Here’s the uncomfortable truth: insulators don‘t fail in isolation. When a bushing cracks, when surface leakage current creeps past its threshold, when pollution accumulates to the point of flashover—the transformer attached to it pays the price. And yet, in countless procurement conversations, insulators are treated as afterthoughts. Commodities. “Just get what fits.”

That mindset is aging poorly. With the global electric insulator market projected to grow from USD 14.76 billion in 2025 to USD 21.15 billion by 2032 at a 5.26% CAGR, utilities and industrial buyers are waking up to what experienced engineers have always known: the insulator is not a passive component. It’s the transformer‘s first line of defense against environmental attack.

Why Insulators Deserve More Attention Than They Get

The basic job of a transformer bushing sounds simple enough: carry current through the grounded tank wall while keeping everything electrically separated. But the operating reality is anything but simple.

Outdoor bushings face a brutal combination of UV radiation, temperature swings, industrial pollution, coastal salt spray, and sometimes all of the above within a single week. Moisture ingress remains the single leading cause of bushing failures—and when moisture finds its way in, the insulation system starts deteriorating from the inside out.

What makes this particularly dangerous is how silently it happens. A bushing doesn’t usually announce its decline with dramatic sparks. By the time visible signs appear, the damage to the transformer‘s internal insulation may already be irreversible. That’s why forward-thinking operators have moved away from reactive replacement toward condition-based maintenance strategies that catch degradation before it cascades.

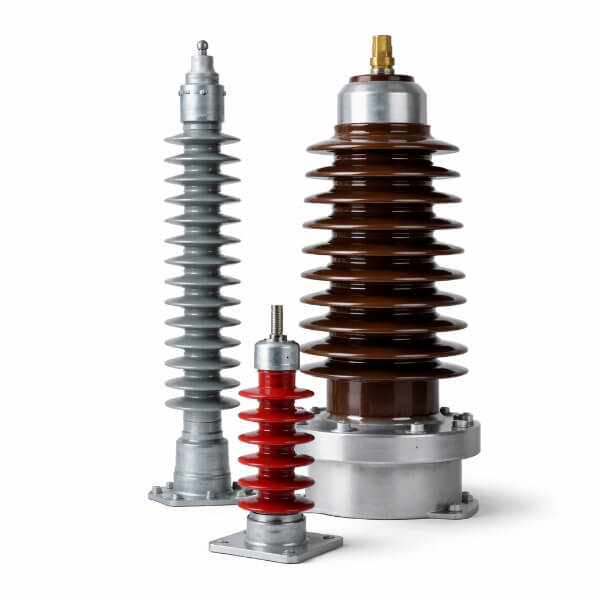

Porcelain vs. Composite: The Debate That Won‘t Go Away

Walk into any high-voltage substation and you’ll see both: traditional porcelain bushings standing alongside newer composite alternatives. Each has legitimate strengths. The question isn‘t which is “better”—it’s which is better for your specific operating environment.

Porcelain has history on its side. For decades, it was the only credible option for high-voltage outdoor applications. Its thermal stability and proven dielectric performance keep it firmly in the mix, especially at voltage levels above 500 kV where entrenched procurement habits run deep. But porcelain comes with real drawbacks: brittle failure modes, significant weight that complicates installation, and susceptibility to pollution-related flashover in contaminated environments.

Composite insulators—typically using HTV silicone rubber sheds over a fiberglass core—flip the equation. Their hydrophobic surface sheds water instead of letting it form continuous conductive paths. In heavily polluted areas, this property alone can reduce flashover risk by more than 50% compared to porcelain. They‘re also substantially lighter and more resistant to vandalism and seismic stress.

But composites aren’t without trade-offs. Their service life under extreme UV exposure requires careful material qualification, and the total installed base may need replacement more frequently than porcelain over a transformer‘s full lifecycle. The emerging consensus among European utilities is that composite insulators have obvious technical and economic advantages for substation equipment, and the industry’s trajectory points toward fully composite external insulation as an inevitable trend.

The Numbers Behind the Shift

The market is voting with its dollars. Resin-impregnated paper bushings—a category that sits between traditional oil-impregnated designs and fully dry technologies—already capture over 61% of the global transformer bushing market, which stood at US$448 million in 2024. Meanwhile, the broader RIP and RIF bushing segment is projected to grow from USD 1.21 billion to USD 1.83 billion by 2032 at a 5.9% CAGR.

Why the acceleration? Two major forces are at play.

First, renewable energy integration is rewriting the operating rules for distribution and power transformers. Solar farms and wind installations subject transformers to highly variable loads and thermal cycling that traditional insulation systems weren‘t designed to handle. In extreme environments—Canadian photovoltaic plants facing -40°C winters, for instance—conventional transformers have suffered insulation degradation and cold-start failures that drive up maintenance costs and downtime.

Second, the global push for grid modernization is raising the bar across the board. The transformer insulation market alone is projected to reach USD 9.68 billion by 2030, growing at 6.8% annually. Utilities are ranking asset hardening, digital monitoring, and total lifecycle cost ahead of upfront price—a shift that directly benefits higher-grade insulator technologies.

Dry Bushings: The Quiet Revolution

For buyers operating in environmentally sensitive or fire-risk areas, dry-type bushings represent perhaps the most significant technological leap in recent years.

Traditional oil-impregnated paper bushings have served reliably for generations, but they carry inherent risks: oil leaks, fire hazards, and environmental liabilities. Resin-impregnated synthetic (RIS) bushings eliminate those concerns entirely. They use no paper, no porcelain, and no oil. The insulation core is non-hygroscopic—meaning moisture ingress stops being a primary failure mode.

The operational advantages extend beyond safety. Dry RIS bushings offer better in-service performance, simpler installation, and more forgiving storage requirements compared to OIP or RIP types. For projects in remote locations or harsh climates, these logistical benefits translate directly into lower total installed cost—even if the initial purchase price runs higher than conventional alternatives.

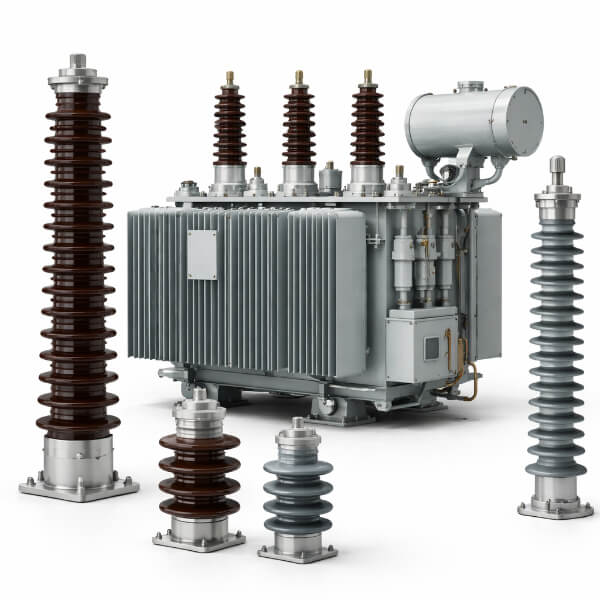

Failure Prevention Starts with Selection

Here‘s where the rubber meets the road. No amount of maintenance sophistication can compensate for a fundamentally mismatched insulator selection.

The root causes of bushing failures are well documented: overheating, load variations, frequent transient exposure, and intense pollution all take their toll. But most of these stressors become manageable when the insulator is properly specified for the application.

For outdoor substations in high-contamination environments, composite or porcelain bushings are generally recommended for their superior insulation and environmental resistance. For indoor or fire-sensitive installations, dry-type paperless designs eliminate fluid-related risks entirely. And for applications requiring interchangeability across multiple equipment brands, adherence to standards like the newly published IEC TS 63493-1:2025—which specifies dimensional parameters for MV bushings from 12 kV to 52 kV—ensures that replacements fit when you need them most.

The common thread is intentionality. Buyers who treat insulators as engineered components rather than commodities consistently see fewer unplanned outages and longer transformer service lives.

Why This Matters for Your Next Transformer Investment

Every transformer is only as reliable as its weakest external component. And more often than not, that weak link is the bushing.

The good news is that the industry has never had better options. Whether you need oil-immersed bushings for legacy substations, dry-type designs for environmentally sensitive projects, or composite solutions for high-pollution corridors, the technology exists to match your operating conditions precisely.

But technology alone isn‘t enough. Execution matters—from proper specification during procurement to correct installation and ongoing condition monitoring. Manufacturers like Welldone Power, with over two decades of experience and a comprehensive portfolio spanning distribution transformers, power transformers, oil-immersed and dry-type designs, plus corollary equipment including reactors and disconnectors, approach bushing integration as part of a holistic system rather than an isolated component. Their products comply with global standards including IEC, CSA, ANSI/IEEE, and AS/NZS—a critical consideration for buyers seeking seamless integration across international supply chains.

The global transformer bushing market is on track to reach USD 569 million by 2031. But for individual buyers, the real metric isn‘t market size—it’s uptime. Every dollar saved on an underspecified bushing is a dollar that may come back as an outage cost multiplied tenfold.
