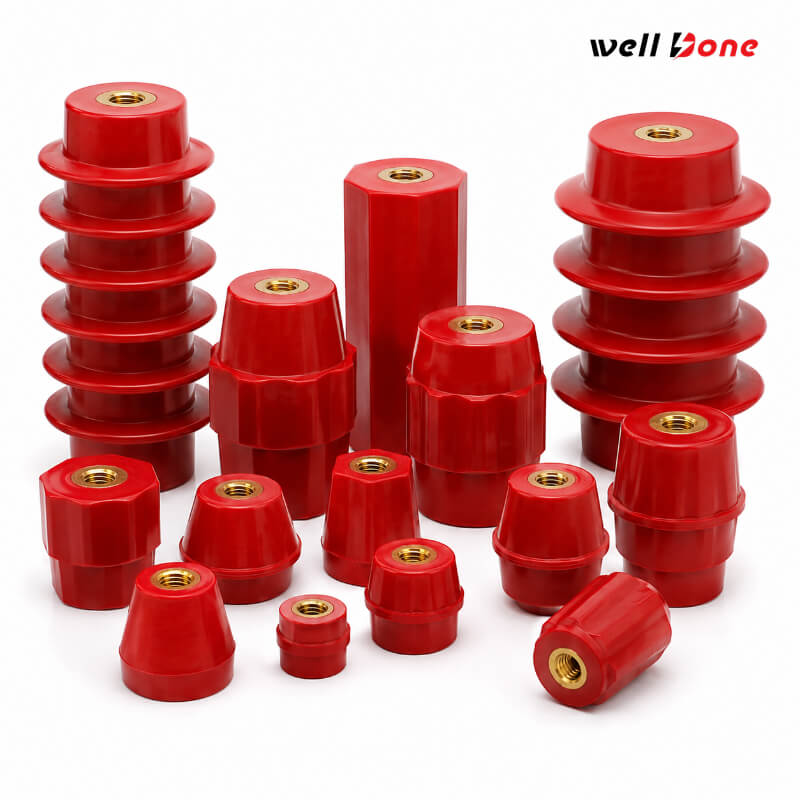

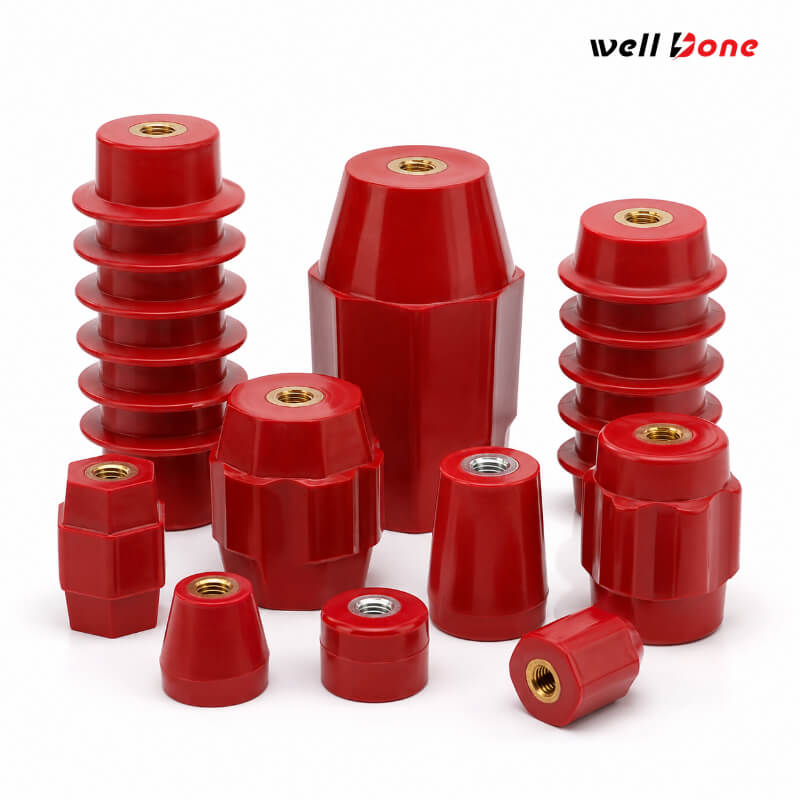

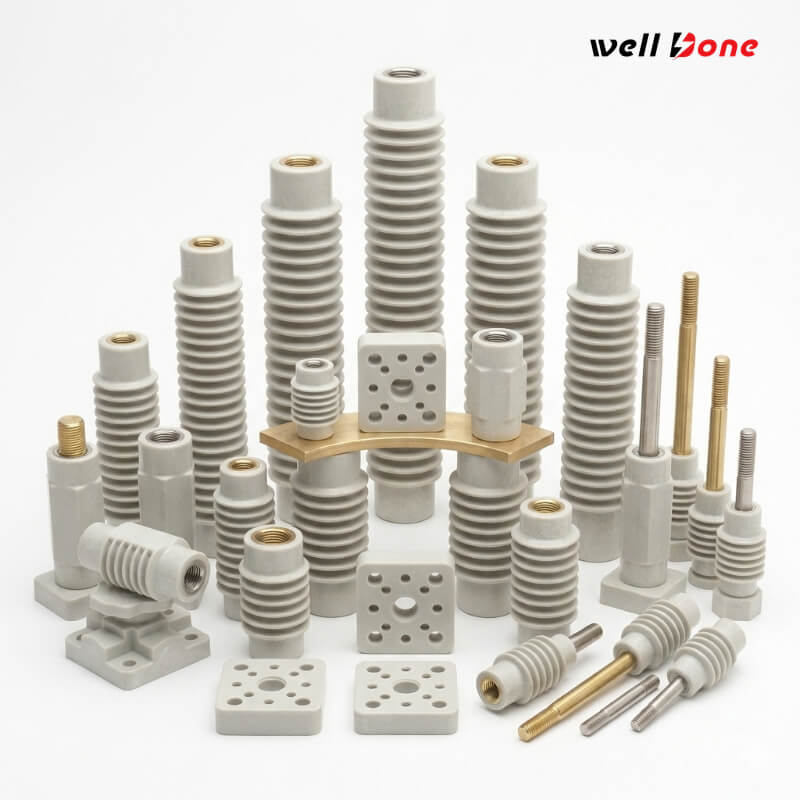

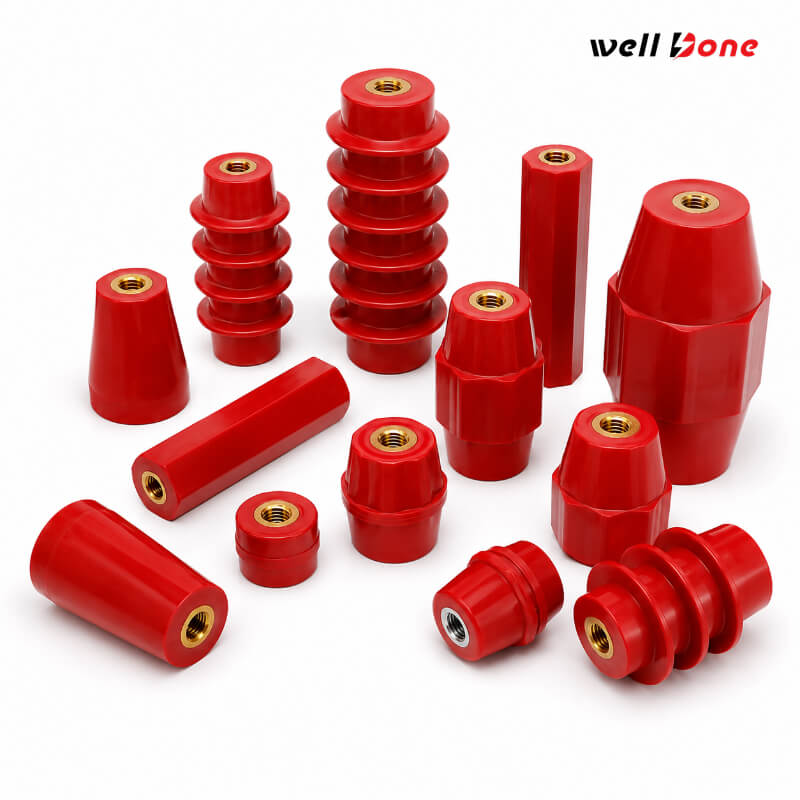

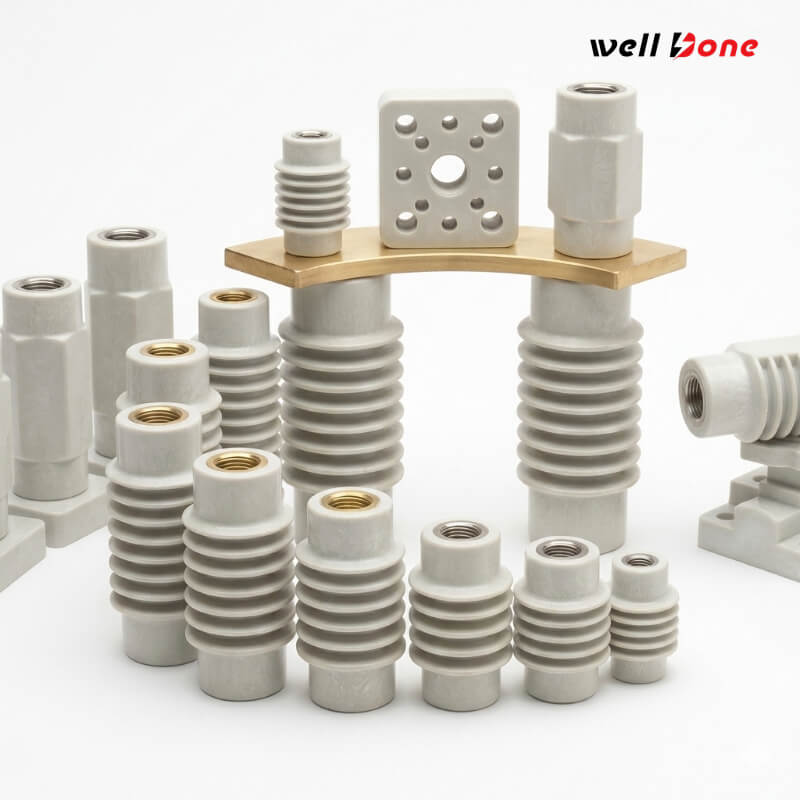

BMC/DMC Molded Electrical Insulator & BMC/DMC Standoff Insulators

BMC/DMC molded electrical insulators are rigid thermoset composite parts made from bulk molding compound or dough molding compound, a blend of resin, fillers, additives and glass reinforcement that is compression molded into precise insulating shapes. In electrical equipment, the standoff version is used to support busbars and other live conductors while maintaining the clearance and isolation needed inside switchboards, switchgear, control panels and bus-duct assemblies.

What makes this family so practical is the mix of electrical insulation and mechanical strength in one part. Manufacturers describe these standoff insulators as flame-retardant, track-resistant and highly resistant to moisture and heat, with better shatter resistance and tighter height tolerance than porcelain in many panel applications. Brass or stainless inserts are commonly used when better corrosion resistance is needed, especially in humid, outdoor or energy-sector cabinets.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Commonly paired installation hardware includes mounting bolts, washers, lock nuts, brass or stainless inserts, busbar clamps, spacer sleeves, support brackets, insulating shims, earthing straps and identification labels. For switchboard and busbar assemblies, these insulators are often specified together with adjustable clamps or plated fasteners so the completed structure stays rigid under torque, vibration and short-circuit stress.

Get a Quote

Product Specifications

Material family

BMC or DMC thermoset composite.

Reinforcement

glass-fiber reinforced polymer composite.

Manufacturing process

compression molded under heat and pressure for repeatable shape and insulation performance.

Fire performance

flame-retardant; UL 94 V-0 is common on UL-recognized standoff ranges.

UL status

UL-recognized families are available for current-carrying devices and switchboard accessories.

Mechanical profile

high mechanical strength with shatter resistance for fixed busbar support.

Environmental resistance

strong moisture resistance and heat resistance, with performance benefits over porcelain in many panel uses.

Insert options

brass, stainless steel, plated steel, aluminum, or customer-specified metal inserts.

Typical compound density

about 1.8 g/cm³ for BMC/DMC material families.

Typical compound strength

tensile strength about 31 MPa and compression strength about 160 MPa in representative BMC/DMC data sets.

Product Applications

Economy is more affordable

used to support main busbars inside distribution boards where compact layout, clean insulation and reliable phase separation are needed.

Low-voltage switchboards in commercial buildings
used inside industrial panels to keep busbars rigidly supported during load changes and vibration from nearby equipment.

Motor control centers and factory control panels
specified in enclosed electrical rooms where stable insulation and long-term mechanical support matter more than decorative finish.

Power distribution cabinets in transport, healthcare and infrastructure projects
suited to modern energy cabinets that need flame-retardant, compact busbar supports for high-density power electronics.

EV charger power cabinets, solar inverters and BESS enclosures

Product Advantages

Strong electrical and mechanical support in one compact part

The BMC/DMC structure gives dependable insulation while holding busbars firmly in place under thermal and mechanical stress.

Better behavior in heat, humidity and harsh service areas

Molded thermoset standoffs are widely described as moisture-resistant, heat-resistant and track-resistant, which helps them stay stable in demanding panel environments.

Easy to tailor for real panel builds

Thread inserts, clamp styles, heights and colors can be adjusted to match switchboard layouts, busbar spacing and maintenance preferences.

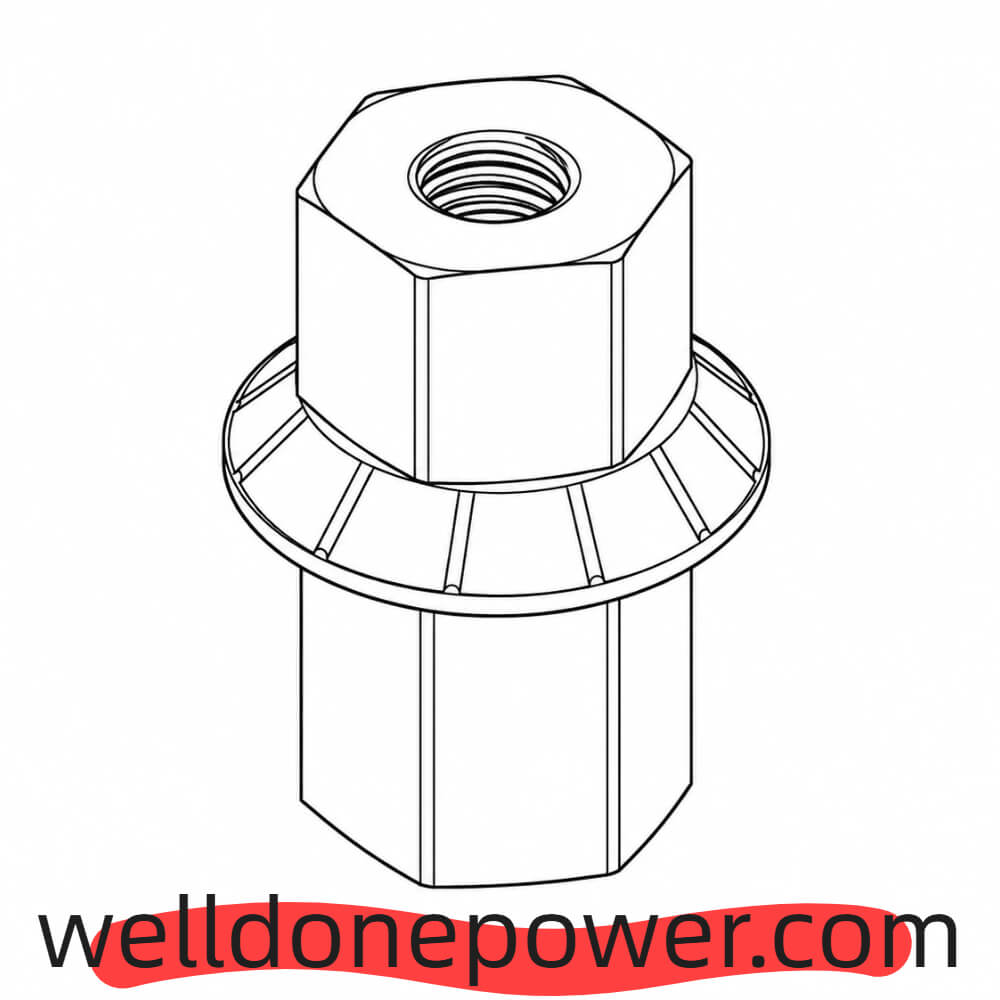

WellDone BMCDMC Molded Insulator Plan Drawing

FAQ

What is the difference between BMC and DMC insulators?

BMC and DMC are both thermoset molding compounds used for electrical insulation parts. In practice, they are chosen for similar busbar-support and standoff applications because they combine electrical insulation, rigidity and flame resistance.
Why are BMC/DMC standoff insulators used in switchgear?

They support live busbars and keep energized parts separated from grounded metal enclosures, helping maintain clearance, reduce flashover risk and keep the assembly mechanically stable.
Can these insulators be customized?

Yes. Insert type, height, color, clamp style and mounting hardware are commonly customized to fit specific switchboard or busbar designs.
