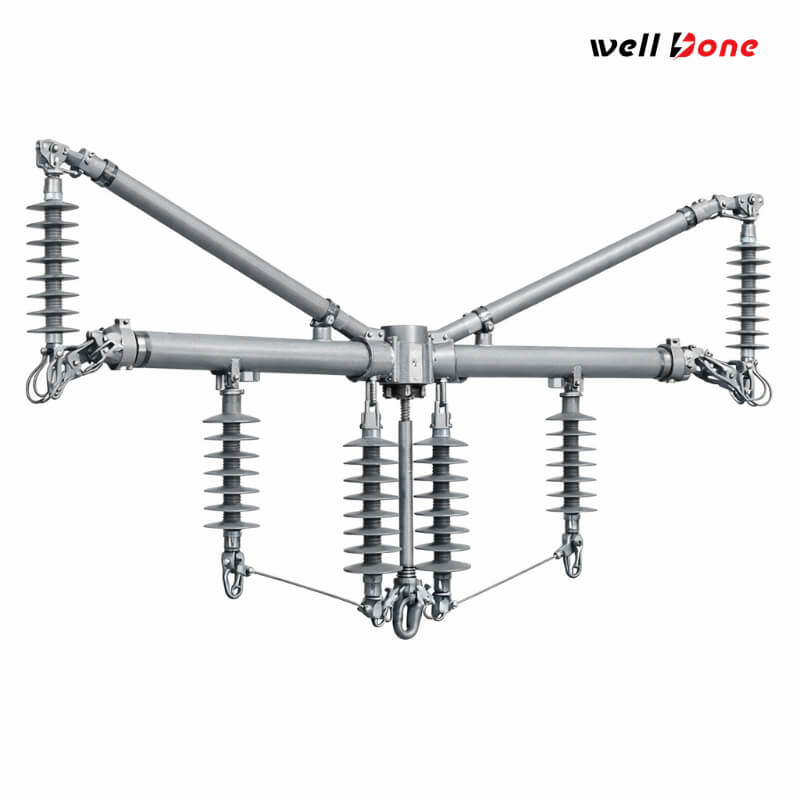

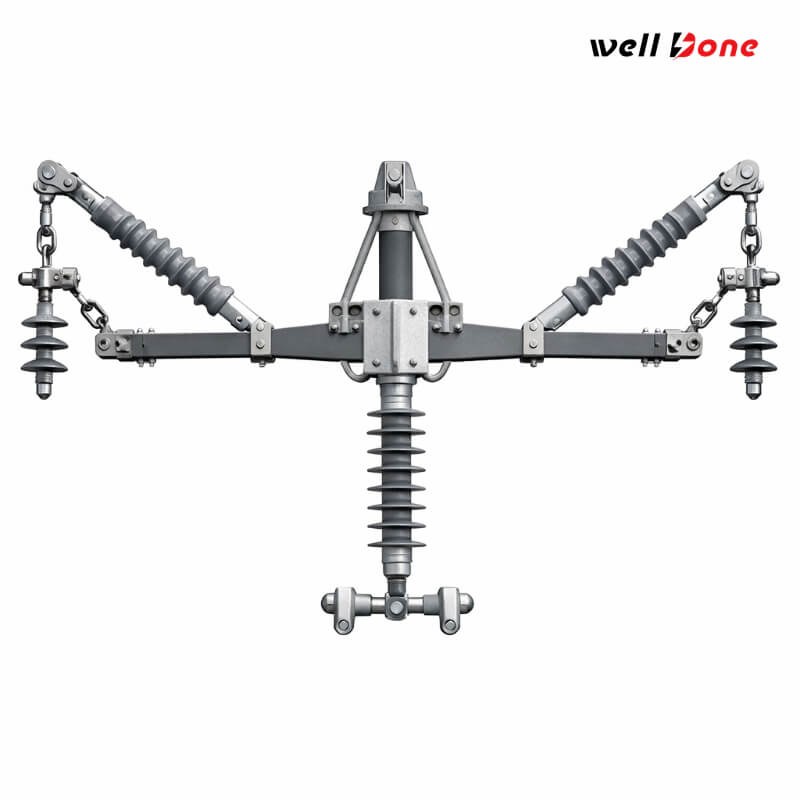

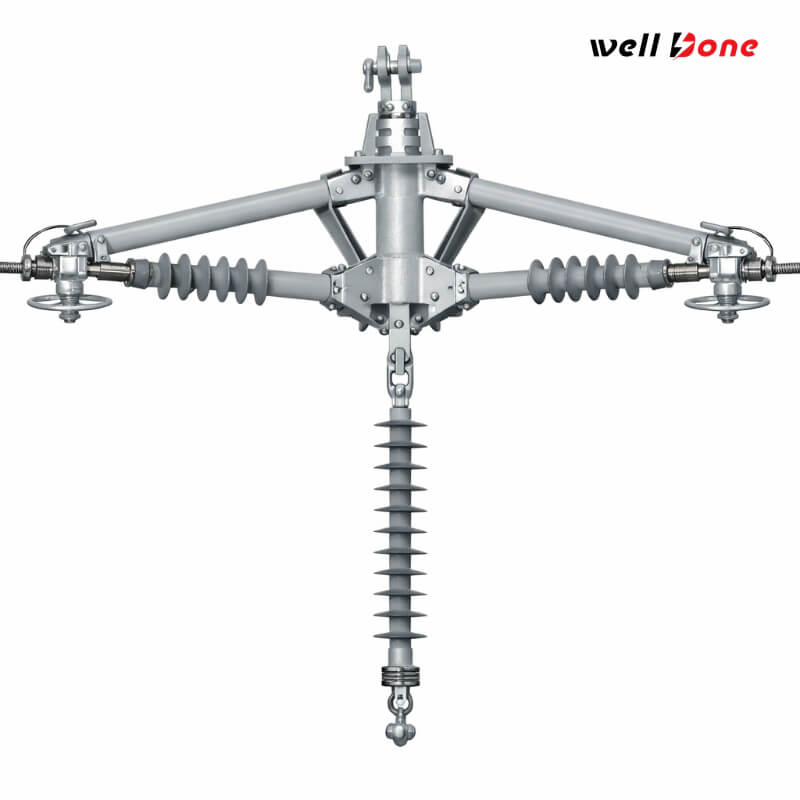

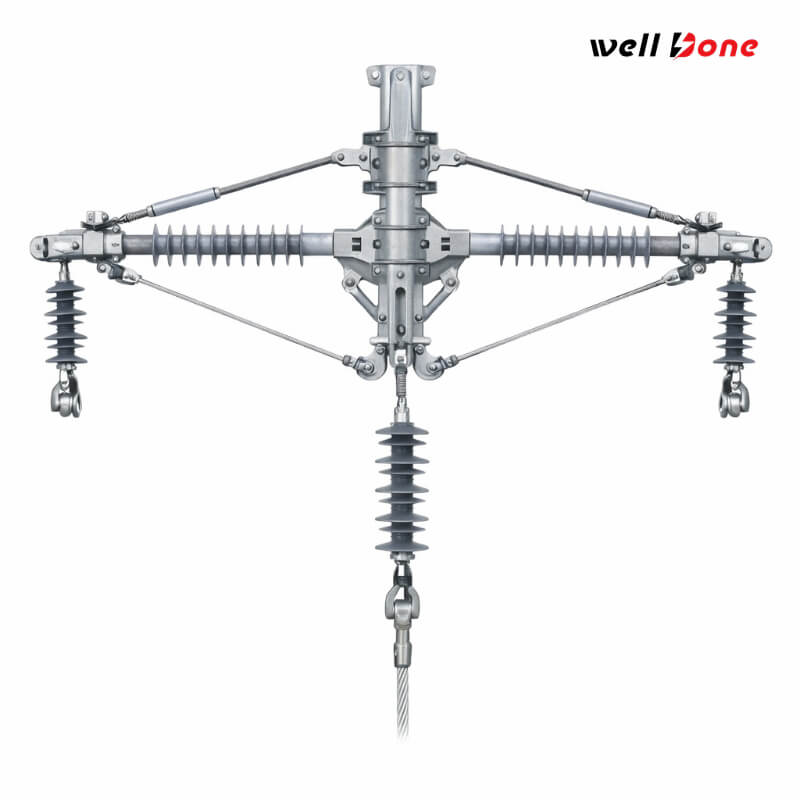

Composite Cross Arm Insulator

Composite Cross Arm Insulator is a composite insulated cross-arm system used on overhead transmission structures to replace traditional steel cross-arms and suspension strings. It helps compact-line and retrofit projects by lowering structure height, improving ground clearance, and reducing the right-of-way footprint while keeping conductors safely insulated from the tower. Built as a mechanical and electrical system rather than a single part, it must withstand wind, ice, pollution, and unbalanced conductor loads while maintaining long-term insulation performance, structural strength, and low maintenance.

Quantity:
Availability:





Inquire Add to Basket

Product Accessories

Grading rings and arcing rings are used at the high-voltage side to control electric field stress and help manage arc behavior around the cross-arm hardware. A published retrofit design used an integrated arcing ring for both arc control and electric-field grading.

Arcing horns or arcing spheres may be added on the arc-protection side of the structure, with published designs placing them upward to improve arc movement and thermal buoyancy.

Suspension hardware, links, and yokes connect the conductor bundle to the insulated cross-arm node when load relief or swing control is needed. One published retrofit arrangement used a freely suspended conductor attachment assembly to balance longitudinal load and ground clearance.

Bolting kits, flange hardware, and end-cap fittings are used to match the tower attachment pattern and secure the assembly at the original cross-arm mounting points. The retrofit design was engineered to match the bolt-hole drilling pattern of the existing tower connection.

Get a Quote

Product Specifications

Product type

Composite insulated cross-arm assembly for overhead transmission lines.

Typical configurations

Double Vee, braced line post, pivoting horizontal-V, and fixed base horizontal-V.

Published voltage applications

132 kV, 230 kV, 275 kV, and 400 kV transmission-line projects.

Core / structural member

Fiberglass-reinforced polymer members used as load-bearing insulating elements.

Housing material

Silicone rubber composite housing with weather-resistant shed profile.

Mechanical design basis

Combined vertical, transverse, and longitudinal loading is used for rating the assembly.

Serviceability requirement

Vertical deflection due to dead load limited to 5% of bendable length.

Design life

At least 50 years in the published utility specification.

Connection capacity

Published utility cross-arm requirement includes 40 kN connection capacity at an M16 connection and 3.0 kNm torsion capacity.

Environmental performance

Resistant to natural agents, biological attack, fire damage, tracking, dry-band arcing, and delamination over the design life.

Product Applications

Economy is more affordable

Used where the original steel cross-arm and suspension string need to be replaced to recover vertical clearance and keep tower modifications small. Published retrofit work shows this is a practical solution for uprating existing transmission structures.

Retrofit of existing lattice towers with clearance problems
Applied in projects that aim to reduce line footprint and right-of-way width while maintaining the electrical insulation needed for high-voltage service.

Compact 132 kV, 275 kV, and 400 kV transmission-line structures
Used where the cross-arm must keep stable electrical performance in hostile outdoor conditions and resist tracking and dry-band arcing caused by salt or contaminants.

Polluted, saline, and wet overhead line corridors
Used in braced and V-type structures where the assembly must manage combined mechanical loads and maintain conductor clearance under wind-induced swing or ice-related imbalance.

Transmission tower head assemblies with unbalanced wind or ice loading

Product Advantages

Smaller structure footprint

Composite cross-arm designs can replace traditional cross-arms and suspended string sets, helping reduce tower height and right-of-way demand while improving clearance.

Strong electrical and mechanical performance in one assembly

The design combines insulation, field control, and load-bearing capability, with published work showing arc protection, grading, and combined-load testing on retrofit projects.

Long-service outdoor durability

Utility requirements emphasize a 50-year design life, low maintenance, resistance to fire and environmental attack, and no delamination over service life.

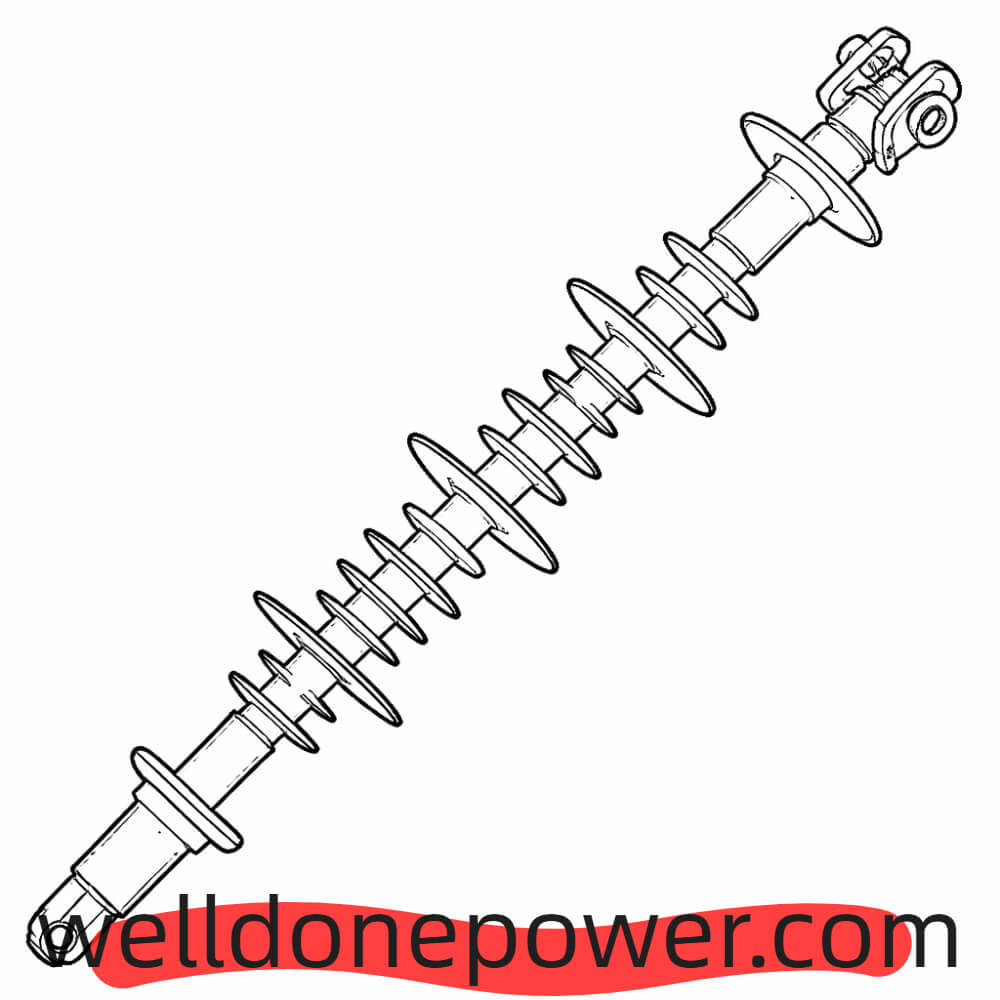

WellDone Composite Cross Arm Insulator Plan Drawing

FAQ

What is a Composite Cross Arm Insulator used for?

It is used to replace a conventional transmission cross-arm and insulator string with a compact insulated structure that supports conductors and improves clearance.
What voltages is it typically used on?

Published applications include 132 kV, 230 kV, 275 kV, and 400 kV overhead transmission projects.
Why choose a composite design?

It helps reduce right-of-way, improve clearance, and deliver strong performance in harsh outdoor environments with lower maintenance demand.
