Optimizing Particulate Control: Comprehensive Guide to Electrostatic Precipitator Transformers

Introduction

Industrial facilities worldwide rely on electrostatic precipitators (ESPs) to meet stringent emissions standards by capturing sub‑micron particles from flue gas streams. At the heart of these systems lies the electrostatic precipitator transformer—a specialized high‑voltage power source that converts utility power into the precise DC voltages necessary for efficient particle charging and collection. This article delves into the intricacies of ESP transformers, highlighting design features, operational principles, benefits, and practical guidance for selection, installation, and upkeep.

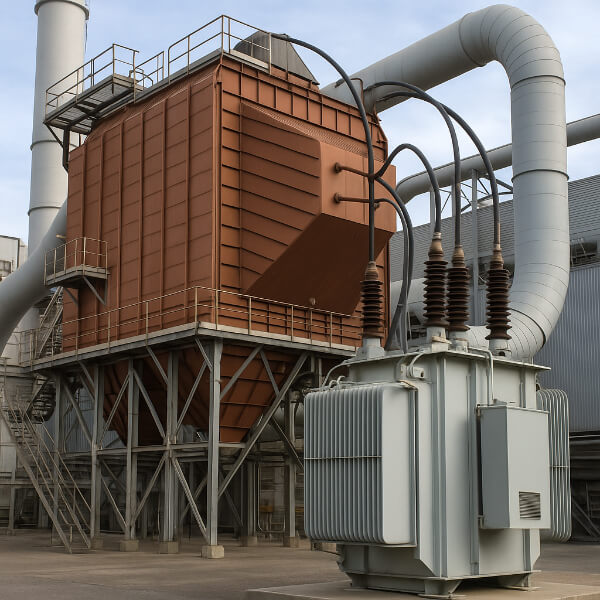

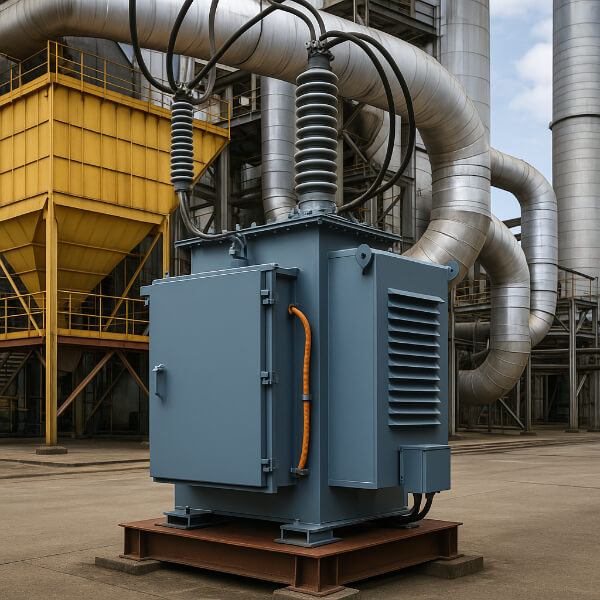

What Is an Electrostatic Precipitator Transformer?

An ESP transformer is a custom-engineered device that steps up medium‑voltage alternating current (AC) to the kilovolt‑level DC outputs required by the precipitator’s charging electrodes. Unlike conventional power transformers, ESP units integrate a high‑voltage rectification stage to deliver stable, ripple‑free DC. They must withstand harsh industrial environments, maintain dielectric integrity under high humidity, and support continuous operation with minimal downtime.

Core Design Elements

1. Magnetic Core and Windings

• Low‑Loss Silicon Steel Core: Minimizes hysteresis and eddy‑current losses to boost overall efficiency.

• High‑Voltage Secondary Winding: Engineered for uniform voltage distribution, often segmented into multiple coils to manage insulation stress.

2. Rectifier Assembly

• Diode/Thyristor Modules: Series‑connected in oil‑filled tanks or epoxy assemblies to convert AC to DC, with built‑in surge protection.

• Modularity: Facilitates quick swaps of individual rectifier elements during maintenance, reducing system downtime.

3. Insulation System

• Fluid Insulation: Mineral or silicone oil circulates through the windings, carrying away heat and suppressing partial discharges.

• Solid Insulation: Epoxy resins or composite barriers protect critical regions against moisture ingress and corona erosion.

4. Cooling Mechanisms

• ONAN (Oil Natural Air Natural): Passive, reliable cooling for moderate‑load applications.

• OFAF (Oil Forced Air Forced): Enhanced heat dissipation using fans and pumps, ideal for high‑capacity units.

• Water Cooling (Optional): Employed where space constraints or extreme ambient temperatures demand extra thermal control.

5. Monitoring and Protection

• Temperature Sensors (RTDs): Continuous winding and oil‑temperature measurement to prevent overload.

• Buchholz Relay and Pressure Relief: Early warning for gas accumulation or pressure spikes within the tank.

• Surge Arresters: Clamp transient overvoltages caused by switching or lightning strikes.

Operating Principles

1. Voltage Transformation: Primary AC is magnetically coupled to the secondary winding, stepping up the voltage to several tens of kilovolts.

2. AC–DC Conversion: The rectifier bank converts high‑voltage AC into smooth DC, typically within the 50 kV to 100 kV range, adjustable to match process requirements.

3. Electrostatic Field Creation: DC power energizes discharge electrodes, ionizing flue gas molecules and imparting a charge to suspended particulates.

4. Particle Collection: Charged particles migrate to grounded collection plates. Periodic rapping dislodges the accumulated dust for removal.

Key Benefits

• Enhanced Collection Efficiency: Precise voltage control maximizes particle charging, driving removal rates above 99%.

• Energy Savings: Low‑loss cores and optimized insulation reduce standby and operating power consumption.

• Reliability: Robust mechanical design and redundant protection features minimize forced outages.

• Scalability: Modular rectifier banks and configurable winding arrangements accommodate capacities from hundreds of kilovolts‑amps (kVA) to several megavolt‑amps (MVA).

• Low Maintenance Footprint: Simplified access to core components and remote monitoring capabilities streamline preventive servicing.

Industry Applications

• Power Generation: Fly‑ash control in coal‑fired and biomass plants.

• Cement Manufacturing: Kiln and raw‑mill dust capture to improve product quality and reduce emissions.

• Metallurgy: Fume extraction in steel, aluminum, and non‑ferrous smelting operations.

• Waste‑to‑Energy: Particulate filtration in refuse incinerators and biomass boilers.

• Chemical Processing: Catalyst dust and powder recovery in refinery and petrochemical units.

Selection Criteria

1. Voltage and Power Rating: Match transformer capacity to the precipitator’s plate area and gas load for optimal voltage gradient.

2. Insulation Class: Choose fluid‑filled or epoxy designs based on site humidity, temperature range, and altitude.

3. Cooling Method: Balance cooling efficiency against site infrastructure; water‑cooled systems demand additional water treatment.

4. Rectifier Configuration: Diode‑only units offer simplicity, while thyristor‑controlled modules enable pulsed‑voltage operation for advanced process control.

5. Monitoring Features: Prioritize designs with integrated DGA (Dissolved Gas Analysis), remote data logging, and predictive‑maintenance alerts.

Installation Best Practices

• Solid Foundation: A level, vibration‑isolated concrete pad prevents core movement and winding fatigue.

• Creepage and Clearance: Adhere to high‑voltage clearance distances when routing cables and assembling buswork.

• Grounding System: Implement a low‑impedance grounding network to protect personnel and equipment from fault currents.

• Environmental Controls: Shelter the transformer from direct sunlight, precipitation, and corrosive atmospheres; maintain ambient temperature within design limits.

Maintenance Strategies

• Oil Analysis: Quarterly dielectric and DGA tests detect contamination, moisture, and early fault indicators.

• Thermal Imaging: Annual infrared surveys identify hot spots in bushings, connections, and cooling fans.

• Rectifier Testing: Periodic forward‑drop and leakage measurements on diodes/thyristors ensure balanced string performance.

• Physical Inspection: Biannual checks for oil leaks, tank deformation, and unbolted clamps; tighten hardware per manufacturer torque specs.

Conclusion

Electrostatic precipitator transformers are indispensable for modern emission‑control systems, delivering the high‑voltage DC needed to achieve exceptional particulate removal. Through thoughtful design—from low‑loss cores and modular rectifiers to advanced monitoring—and vigilant maintenance, these transformers ensure reliable, energy‑efficient operation in demanding industrial environments. By selecting the right transformer configuration and following best practices for installation and upkeep, plant operators can safeguard compliance, reduce downtime, and optimize long‑term performance.
