Optimizing Transformer Insulation: Materials, Mechanisms, and Maintenance

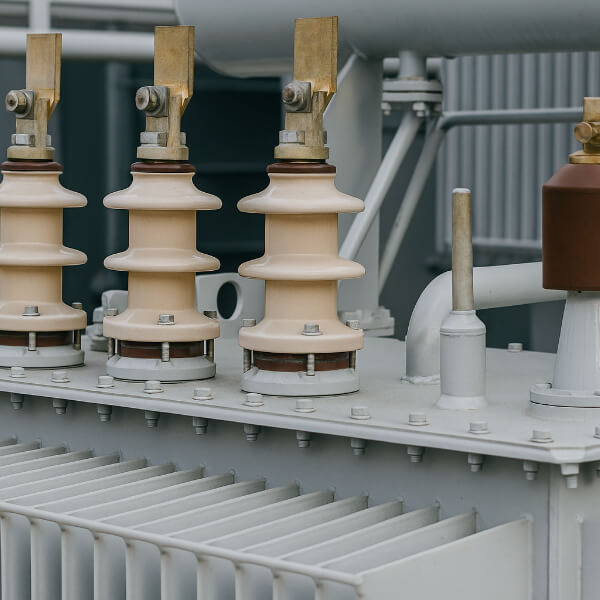

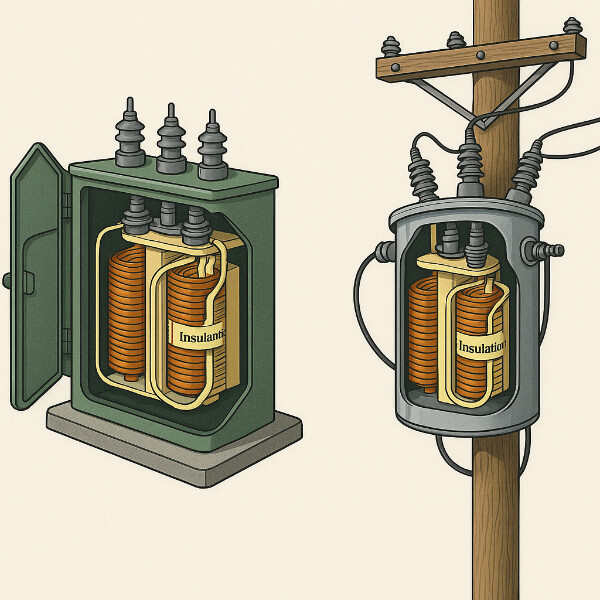

Transformer insulation forms the backbone of safe, efficient power distribution. Whether buried in underground vaults or elevated on utility poles, transformers depend on carefully chosen insulating media to prevent electrical faults, manage heat, and endure mechanical forces. This article delves into the selection and performance of insulating materials, examines the stresses they face, outlines typical degradation pathways, and offers guidance on extending insulation life—all tailored to both pad-mounted and pole-mounted transformer applications.

1. Core Functions of Transformer Insulation

1.1 Electrical Barrier

Insulation creates a protective veil between conductive components. In pad-mounted transformers, where voltages often exceed 15 kV, robust dielectric barriers guard against phase-to-phase and winding-to-core short circuits. In pole-mounted units, compact windings rely on fluid-paper combinations to maintain clearance even under extreme weather or transient surges.

1.2 Heat Transfer

Copper windings and iron cores generate heat under load. Insulating fluids—such as mineral oils or eco-friendly esters—absorb this heat and pass it to radiators or the surrounding environment. Solid materials like cellulose paper and polymer films supplement fluid cooling by providing thermal pathways away from hot spots, ensuring temperature ratings (Class F, H) are not exceeded.

1.3 Structural Support

Short-circuit events produce intense electrodynamic forces. Pressboard spacers, Nomex® sheets, and epoxy barriers help preserve coil geometry and prevent winding movement. In overhead installations, insulation must also resist vibration from wind or pole sway without cracking or delaminating.

2. Stressors Impacting Insulation Integrity

2.1 Electrical Stresses

• Continuous Voltage: Long-term exposure to rated operating voltage weakens dielectric strength over years.

• Impulse Overvoltages: Lightning strikes and switching operations introduce steep-front pulses (1.2/50 μs), challenging impulse-withstand limits.

2.2 Thermal Stresses

• Load-Related Heating: I⊃2;R losses and core hysteresis elevate temperatures. Without adequate oil flow or paper conductivity, localized hot spots accelerate aging.

• Ambient Extremes: Outdoor pad-mounted and pole-mounted transformers face wide temperature swings (–40 °C to +65 °C), demanding materials that remain stable across this range.

2.3 Mechanical Stresses

• Fault-Condition Forces: Electrodynamic thrust during faults compresses and shears insulation layers.

• Vibrational Fatigue: Prolonged vibration in overhead lines or during transport can abrade solid insulation, leading to exposure of conductors.

3. Common Insulation Degradation Pathways

3.1 Thermal Aging

Prolonged heat exposure alters the molecular structure of cellulose and ester molecules, producing acids and sludge. Over time, paper loses flexibility and oil viscosity increases, impeding cooling efficiency.

3.2 Electrical Erosion

Microscopic voids within solid insulation or at oil–paper interfaces can trigger partial discharges. Repetitive micro-arcing erodes material until dielectric breakdown occurs.

3.3 Moisture Ingress

Water molecules, attracted by hygroscopic paper, lower overall dielectric strength. In pole-mounted installations, seal failures or breathers can allow moisture entry, compounding thermal and electrical stresses.

3.4 Mechanical Damage

High-magnitude mechanical loads during faults or continuous vibration can fracture pressboard, crack polymer films, or delaminate epoxy castings, creating paths for electrical faults.

4. Materials Selection and Best Practices

1. Fluid Choice:

• Mineral Oils excel in cost and availability, with good dielectric and cooling properties.

• Natural/Synthetic Esters offer higher flash points and biodegradability, suited for environmentally sensitive sites.

2. Solid Insulators:

• Cellulose Papers remain industry standard, balancing strength and flexibility.

• Polymer Films (e.g., Nomex®, polyimide) provide superior thermal ratings for high-temperature applications.

3. Composite Designs:
   Combining fluids with solid spacers and cast resin barriers optimizes performance: fluid circulates heat, while solids maintain precise clearances and mechanical rigidity.

4. Condition Monitoring:

• Dissolved Gas Analysis (DGA) detects incipient electrical faults.

• Moisture Testing (e.g., Karl Fischer titration) assesses water content in oil and paper.

• Thermal Imaging spots uneven heating or blocked radiators.

5. Enhancing Insulation Lifespan

• Regular Maintenance: Scheduled oil filtration, degassing, and replacement of degraded papers prevent accelerated aging.

• Environmental Controls: Proper sealing and use of silica gel breathers minimize moisture ingress.

• Load Management: Avoiding continuous overloads reduces thermal stress and extends dielectric life.

A transformer’s reliability and lifespan are inextricably tied to its insulation system. By understanding the interplay of electrical, thermal, and mechanical stresses, selecting appropriate fluid–solid combinations, and implementing proactive monitoring, operators can significantly reduce failure risk in both pad-mounted and pole-mounted transformers. For a streamlined offering of premium insulation tubes and sheets, paper products, and advanced polymer films, Fenhar Insulation Materials delivers tailored solutions that meet rigorous performance and environmental standards.
