When summer temperatures soar, power transformers face their toughest test. The combination of heavy loading and ambient heat pushes cooling systems to their limits, and even a few degrees above normal can accelerate insulation ageing or trigger unplanned outages. Utility operators and facility managers often scramble for quick fixes, but a systematic approach—combining active cooling, vigilant monitoring, and smart equipment selection—makes the difference between reliable service and costly downtime.
This article draws on practical experience from power utilities and industrial sites to give you a clear roadmap: what actually works to bring down oil temperature, what warning signs you cannot ignore, and which transformer designs are engineered to thrive when the mercury rises.
Passive radiators alone rarely cope with sustained 35 °C+ days. Below are four intervention levels, ranked from simplest to most powerful.
Mounting high‑velocity fans directly onto the radiator banks increases convective heat transfer dramatically. In many substations, adding just two to four blowers per unit can lower top‑oil temperature by 6–8 °C during peak load. The beauty of this method is its low upfront cost and ease of retrofitting—no oil handling, no downtime for installation.
A fine water mist directed at the cooling fins uses evaporative cooling to pull extra heat out of the metal surfaces. Field measurements show a consistent 5–10 °C reduction in oil temperature within 30 minutes of activation. The trick is to use atomised nozzles that create fog rather than heavy droplets, because evaporation is the real workhorse. In one coastal utility trial, a single mist cannon cut average winding temperature by 8 °C on three identical 50 MVA units.
This hybrid approach pairs high‑speed fans with fine water injection. The fan accelerates evaporation and sweeps cool, humid air evenly across the radiator. Results from a pilot project in a humid subtropical region showed a remarkable 20 °C drop in just three hours—making it the most aggressive short‑term measure available without internal modifications.
For critical installations where even brief temperature excursions are unacceptable, a water‑based air‑conditioning unit delivers chilled air directly to the transformer’s radiator array. These systems produce air that is 12–24 °C cooler than ambient, offering precise temperature control. Although more expensive, they are invaluable for data centres, hospitals, and grid‑critical substations.
Practical note: Most operators combine two or more methods—for example, fixed fans as a baseline, with portable mist cannons deployed only during heat‑wave warnings.
Cooling measures are only useful if you know when to trigger them. The single most reliable real‑time indicator is top‑oil temperature, and here are the numbers that matter:
| Temperature Range | Action Required |
| ≤ 65 °C | Normal operation – routine monitoring suffices. |
| 65–70 °C | Watch zone – increase inspection frequency; check cooler operation. |
| ≥ 70 °C | Immediate cooling activation – start fans/sprays without delay. |
| Consistently > 85 °C | Unsustainable – oil degradation accelerates; investigate root cause. |
| > 95 °C | Critical danger – emergency load shedding or shutdown may be needed. |
| 110 °C | Catastrophic – transformer life reduces from ~20 years to under 7 years. |
Sudden temperature spikes—even if below 85 °C—are equally alarming. A rapid rise often points to blocked oil circulation, failed pump, or internal arcing. Always cross‑check with dissolved gas analysis (DGA) if you see unexplained jumps.
Beyond temperature, regular visual inspections are non‑negotiable during heatwaves. Look for:
Oil leaks (especially around gaskets and welds)
Abnormally low or high oil level in the conservator
Unusual humming or crackling noises
Soot or discolouration on bushings
Not all transformers are born equal when the thermometer hits 40 °C. Your selection should balance thermal performance, environmental robustness, and site‑specific constraints.
These units are purpose‑built for harsh climates. They feature:
Class H insulation (rated for 180 °C) – far superior to standard Class A (105 °C).
NOMEX® aramid paper – retains mechanical and dielectric strength even after prolonged exposure to 80 °C+.
Embedded fibre‑optic winding sensors – enabling real‑time hotspot monitoring, not just top‑oil.
Such transformers can safely operate with top‑oil temperatures 10–15 °C higher than conventional units, giving you a larger safety margin during extreme events.

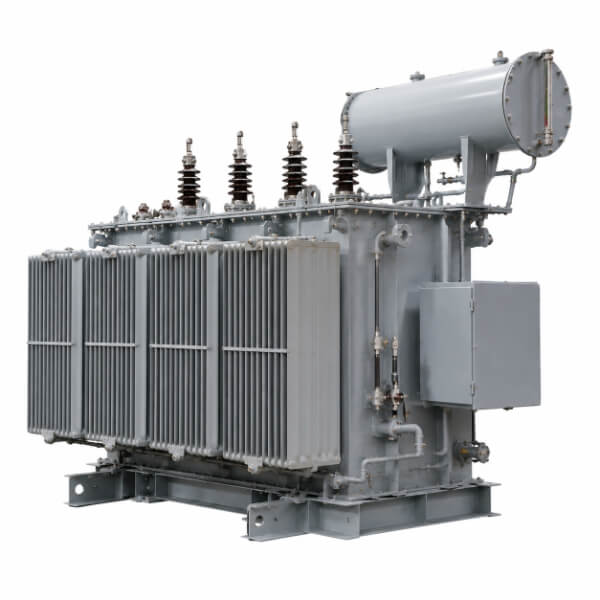

In hot, coastal, or highly humid areas, oil‑filled (hermetically sealed) transformers often outperform dry‑type. Why?
Oil has higher specific heat capacity, so it absorbs and dissipates more heat per litre.
Sealed tanks prevent moisture ingress, which is a major killer of dry‑type insulation in humid air.
Oil‑immersed designs can be easily retrofitted with external fans and sprays.

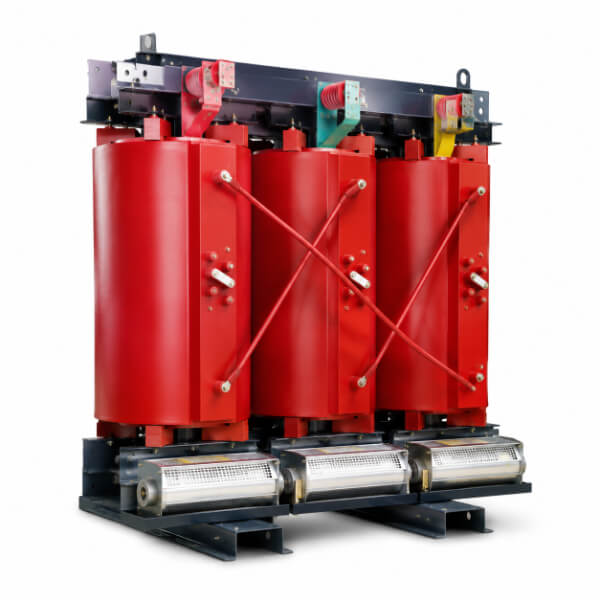

Dry‑type transformers are still a great choice for indoor or fire‑sensitive locations (shopping malls, high‑rises) provided they are equipped with forced‑air cooling cabinets. Without active air movement, their temperature rise limits are tighter, and they suffer more from dust clogging.
High altitude (>1000 m): Use “plateau‑type” transformers with larger radiators to compensate for thinner air (lower cooling efficiency).
Heavy industrial / desert dust: Opt for IP65 or higher enclosures with stainless steel fins and anti‑corrosion coating.
Seaside / chemical plants: Specify C5‑M or CX corrosion protection grades.
Even the best transformer will struggle if maintenance is neglected. During summer, we recommend:
Cleaning radiators weekly – dust and pollen act as thermal blankets; a simple pressure‑wash (with care) can restore 15–20% cooling capacity.
Testing fan and pump operation every morning before peak load – a failed fan is often unnoticed until temperatures rocket.
Reviewing load schedules – if possible, shift non‑critical loads to nighttime to flatten the daytime peak.
Keeping spare cooling fans and nozzles on‑site – delivery delays during summer rush can leave you stranded.
Heatwaves are becoming longer and more intense, but transformer failures are not inevitable. A tiered cooling strategy—starting with fixed fans, supplemented by water‑spray when needed, and backed by a water‑chilled unit for critical assets—gives you operational flexibility. Pair that with rigorous temperature logging (never ignore that 70 °C warning) and choose a transformer with H‑class insulation and NOMEX paper if you are buying new.
Remember, the cheapest cooling method is the one you already have—proper maintenance. Keep radiators clean, oil levels correct, and monitoring devices calibrated. When the next scorcher arrives, you will be ready, not reactive.
