Rectifier Transformer vs. Electrostatic Precipitator Transformer

When maintenance engineers or procurement specialists come across the terms “rectifier transformer” and “electrostatic precipitator transformer,” they often assume these are two completely separate product lines. Some catalogs list them side by side; others lump them together. The confusion is understandable – both involve heavy copper windings, both handle high power, and both eventually produce direct current. Yet the truth is far simpler and more revealing: every electrostatic precipitator transformer is a rectifier transformer, but not every rectifier transformer is an electrostatic precipitator transformer.

To put it plainly, the electrostatic precipitator (ESP) transformer is not a standalone species. It is a purpose‑built offspring of the broader rectifier transformer family. Understanding this lineage saves time in specification, prevents misapplication, and clarifies why certain design features appear in one but not the other.

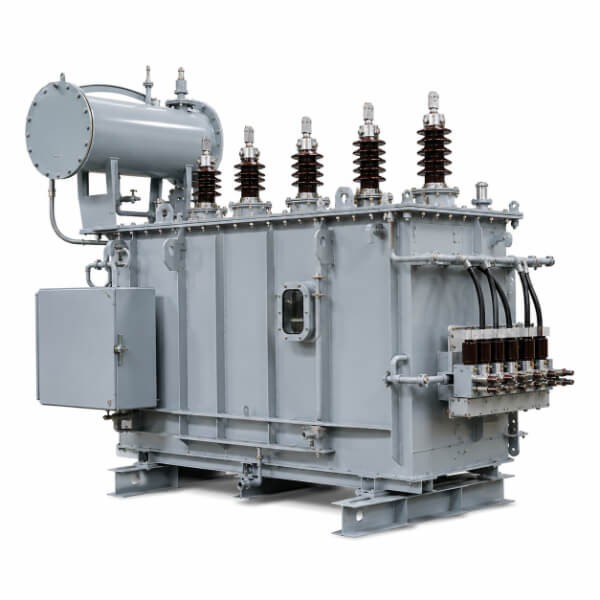

What a Rectifier Transformer Really Does

At its core, a rectifier transformer is any transformer that feeds a rectifier circuit. Its job is twofold: first, to step the incoming AC voltage up or down to a level suitable for the rectifier; second, to work in concert with diodes, thyristors, or other solid‑state devices to turn that AC into DC. This DC output then powers electrochemical cells, traction systems, plating baths, or large DC motors.

Because the final use can be so diverse, rectifier transformers come in a dizzying variety of configurations – single‑phase or three‑phase, with multiple secondary windings to produce six‑, twelve‑, or even twenty‑four‑phase outputs for smoother DC ripple. They are the workhorses of heavy industry, often designed for low voltage and extremely high current – think thousands of amperes at a few hundred volts – to drive electrolytic processes like aluminium smelting or chlorine production.

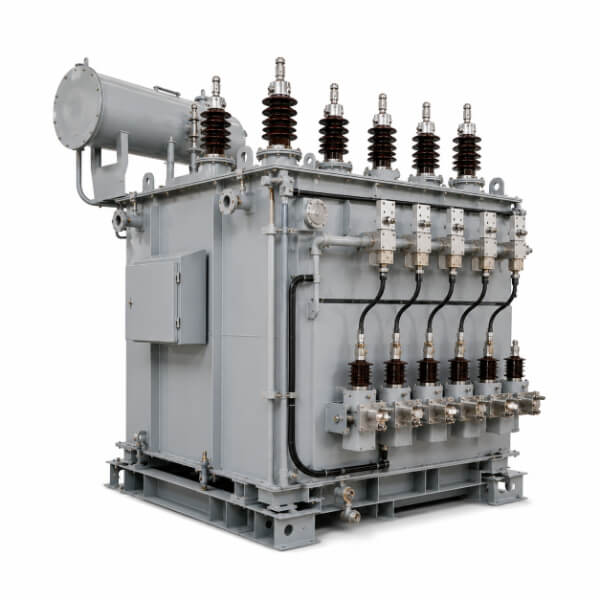

Where the Electrostatic Precipitator Transformer Fits In

Now zoom in on the electrostatic precipitator. This device cleans flue gases by charging dust particles with a high‑voltage DC field, then collecting them on oppositely charged plates. To create that field, you need direct current in the range of 40 to 100 kV – but the plant supply is typically 380 V or 10 kV AC. The component that performs this dramatic voltage leap and rectification is precisely the ESP transformer, often called a high‑voltage silicon‑rectifier transformer.

Open the tank of a conventional ESP transformer, and you will find a single‑phase rectifier transformer at its heart, alongside a high‑voltage rectifier stack (silicon diodes), a protective choke, and sometimes a voltage‑dividing capacitor. Remove the rectifier and the protective gear, and what remains is – by every electrical metric – a rectifier transformer. The only twist is that this particular rectifier transformer is wound with a much higher turns ratio to boost voltage instead of lowering it.

Four Unbreakable Bonds Between the Two

1. Physical nesting

The ESP transformer does not merely “use” a rectifier transformer; it incorporates one as its fundamental electromagnetic core. All the magnetic circuit design, core lamination, and winding insulation principles are inherited directly from rectifier‑transformer practice.

2. Identical conversion logic

Both follow the same two‑stage process: AC → (transformer) → adjusted AC → (rectifier) → DC. Whether the secondary voltage ends up at 50 V or 50,000 V, the underlying physics – Faraday’s law, flux linkage, and bridge‑rectifier topology – remain identical.

3. Application‑driven divergence

The rectifier transformer is the universal platform; it mutates into specialised forms for different DC loads. The ESP transformer is one such mutation, fine‑tuned for a single mission: high‑voltage DC with rapid response to electrical breakdowns (spark‑overs) inside the precipitator. To handle those frequent sparks, the ESP version is deliberately built with higher leakage reactance – a design choice that limits fault current without external reactors. That high‑impedance characteristic is simply a parametric variation applied to a standard rectifier transformer design, not a radical re‑invention.

4. Technological co‑evolution

When the industry shifted from line‑frequency (50/60 Hz) rectifier transformers to medium‑frequency (kHz) units using IGBT converters, the ESP transformer followed suit. Modern high‑frequency ESP power supplies are essentially high‑frequency rectifier transformers packaged with specialised control logic for precipitator duty. The parent technology drives the child technology every step of the way.

Where They Part Ways – The Practical Differences

Despite their genetic ties, you would never swap one for the other without serious consequences. The table below captures the key distinctions in everyday engineering language:

Why This Relationship Matters for Buyers and Specifiers

Recognising that the ESP transformer is a subset of rectifier transformers simplifies procurement. When you write a specification for an ESP transformer, you are effectively writing a rectifier‑transformer specification with additional clauses – for voltage rating, impedance, spark‑through capability, and duty cycle. Conversely, a general‑purpose rectifier transformer will fail in ESP service because it lacks the high impedance and the robust insulation for sustained DC stress.

On the flip side, if you understand the common DNA, you can cross‑reference test standards, cooling methods (ONAN, OFAF), and tap‑changer designs between the two, saving engineering hours during troubleshooting or retrofit projects.

Final Takeaway

Think of the rectifier transformer as a chassis – a versatile platform that can be configured into countless vehicles. The electrostatic precipitator transformer is the fire truck built on that same chassis – it keeps the core chassis intact, but adds specialised pumps, ladders, and flashing lights (high impedance, high insulation, fast fault recovery) for a very specific emergency.

So, the next time someone asks whether these two are the same kind, your answer should be: “Yes, in lineage – but no, in specification.” They are not equals; they are parent and child, and recognising that parentage is the first step toward smarter selection, better maintenance, and fewer costly errors in heavy industrial power systems.
