Why Distribution Transformers Explode During Short Circuits — and How Smart Design Prevents It

A short circuit does not need to be a death sentence for a transformer. But it often is — and the reason is almost always mechanical, not electrical.

When a downstream fault sends tens of thousands of amps surging through a distribution transformer, the windings experience electromagnetic forces that can reach 200 to 400 times the mechanical stress they see during normal rated operation. In the worst cases, copper conductors buckle like crushed soda cans. Insulation tears. Turns weld together. The tank ruptures, oil ignites, and what was a perfectly functional transformer seconds earlier becomes a fireball on a pole or pad.

Yet this outcome is not inevitable. A transformer designed with deliberate short-circuit defense — built into its winding geometry, clamping architecture, and impedance characteristics — can ride through these faults and stay in service. The difference between destruction and survival sits squarely in the engineering decisions made months before the transformer ever leaves the factory floor.

This article explains the physics of short-circuit failure, the design levers engineers pull to withstand it, and why a well-designed distribution transformer should never explode from a fault it was built to handle.

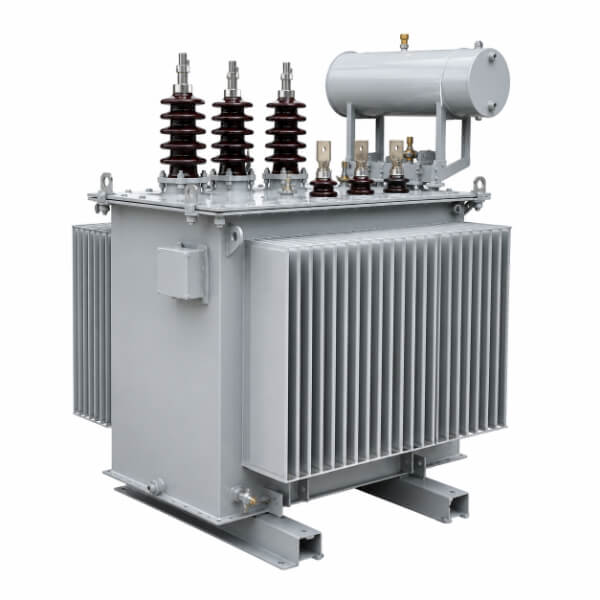

The Invisible Force That Destroys Transformers

Not heat. Not voltage. Current squared.

The root cause of short-circuit destruction is not the arc itself. It is the electromagnetic force generated by the fault current interacting with the transformer’s own leakage magnetic field.

Every current-carrying conductor sits inside a magnetic field. The interaction produces a force proportional to the square of the current — governed by the Lorentz force law. Under rated load, that force is modest. Under a bolted short circuit, where current can spike to 15 to 25 times the transformer’s rated full-load current, the force multiplies by a factor of 225 to 625.

To put numbers on this: a 500 kVA, 11 kV / 433 V distribution transformer with a 4% impedance will see a symmetrical short-circuit current of approximately:

That is over 25 times the rated secondary current of roughly 667 A. The electromagnetic force on every turn of every winding is now 625 times what it was at full load.

Two forces, two failure modes

The leakage flux inside a transformer splits into two directional components, each producing a different kind of destructive force:

Radial force (F_r) — Acts outward on the outer winding and inward on the inner winding. The outer winding experiences a “hoop stress” trying to stretch it like an expanding ring, while the inner winding is crushed inward toward the core limb. Radial forces are the primary driver of buckling failures in the inner winding, where individual conductors collapse between axial spacers.

Axial force (F_a) — Acts vertically along the winding height, compressing the winding stack from both ends toward the center. If the magnetic centers of the high-voltage and low-voltage windings are not perfectly aligned, an additional unbalanced axial force appears that can tear the winding apart vertically. Axial forces cause conductor tilting, spacer collapse, and end-turn crushing.

The peak forces occur within the first half-cycle of the fault — roughly 8 to 10 milliseconds in a 50 Hz system. There is no time for protection relays to react. The transformer must survive this mechanically, on its own, through structural design alone.

Why Some Transformers Survive — and Others Do Not

The cumulative damage problem

A short circuit rarely destroys a transformer on its first occurrence. What usually happens is far more insidious: each fault event applies a mechanical shock that permanently deforms the winding structure by a tiny amount. Insulation paper compresses. Spacers shift. Conductors micro-buckle. None of this is visible or electrically detectable after the fault clears.

Over years of service — five faults, ten faults, twenty faults — the cumulative deformation reaches a tipping point. The winding loses its clamping preload. Turn-to-turn insulation abrades through. Then the next fault, no more severe than any before it, finds a path to arc between adjacent turns. In less than a cycle, a turn-to-turn short cascades into a full winding failure, generating a gas bubble that ruptures the tank.

This is why transformer standards — particularly IEC 60076-5 — mandate that a transformer must be capable of withstanding a short circuit not once, but repeatedly, without damage that would prevent it from passing a subsequent dielectric test. The standard’s intent is explicit: the transformer must survive the fault and remain serviceable afterwards.

The impedance trade-off

The first and most powerful design tool for short-circuit defense is the transformer’s impedance voltage — the percentage of rated voltage required to circulate rated current through the winding with the secondary shorted.

A higher impedance means lower fault current. A 6% impedance transformer sees only two-thirds the fault current of a 4% unit of the same rating. From a survival standpoint, higher impedance is pure benefit.

But impedance is not free. Higher impedance means:

• Greater voltage drop under load — poorer voltage regulation for the customer

• Higher reactive power consumption — larger kVAr demand from the grid

• Increased copper losses at rated load

• More active material (copper and core steel) required, raising manufacturing cost and physical size

The design engineer’s job is to find the narrow band where impedance is high enough to keep fault forces within the winding’s mechanical capability, yet low enough to meet the customer’s voltage regulation and efficiency requirements. This is not a generic answer — it depends on the system fault level at the installation point, the expected frequency of downstream faults, and the voltage sensitivity of the connected load.

For distribution transformers feeding residential or light commercial loads where voltage regulation is forgiving, Welldone engineers often specify impedance at the upper end of the IEC tolerance band. For industrial feeders powering motor loads sensitive to voltage dip, the design tightens to the minimum workable value — with corresponding upgrades to the mechanical clamping architecture to compensate.

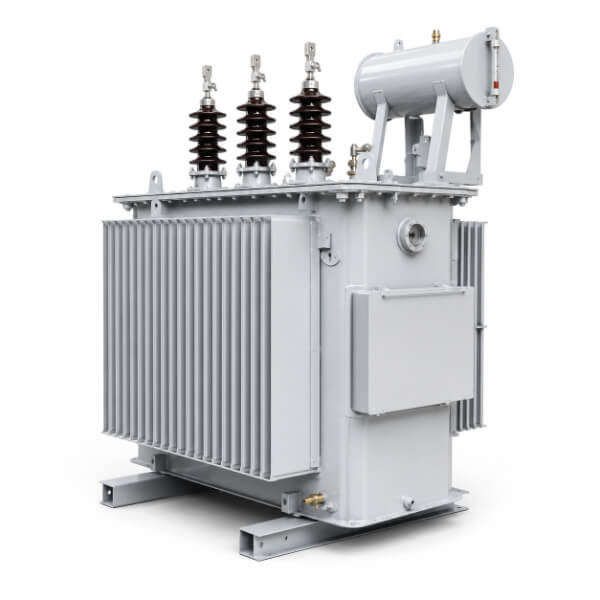

Design Defenses: How Welldone Builds Short-Circuit Survivability

1. Winding compression — the preload that holds everything together

The single most critical mechanical design feature for short-circuit survival is the axial clamping preload applied to the winding stack during assembly.

Think of a winding as a coil spring. During a short circuit, the axial electromagnetic force tries to compress this spring further. If the initial clamping preload exceeds the peak axial fault force, the winding behaves as a rigid body — no movement, no impact, no fatigue. But if the preload is insufficient, the winding compresses during the fault and then rebounds when the current passes through zero. This oscillatory hammering between end insulation and clamping structures is what drives cumulative deformation.

At Welldone, every distribution transformer winding is assembled under a calculated preload derived from the maximum asymmetrical fault current the transformer is rated to withstand. The preload is set to exceed the peak axial force by a safety margin — typically 30% to 50% — ensuring that even under the worst-case first-peak current, the winding stack never separates from its clamping plane.

The preload is delivered through a combination of:

• Steel tie rods running through the core frame to the top and bottom clamping beams

• Insulating press rings distributing the clamping force uniformly around the winding circumference

• Spring-loaded or Belleville-washer compensation to maintain clamping force as the insulation paper settles over the transformer’s first thermal cycles in service

2. Stay arrangement — the geometry that resists radial buckling

The inner winding’s most vulnerable failure mode under short circuit is forced buckling — the inward radial collapse of a conductor span between two axial supporting stays.

The critical design parameter is the unsupported conductor span — the circumferential distance between adjacent stays. Buckling resistance follows an inverse-square relationship with this span: halving the unsupported length quadruples the radial force the winding can withstand without deformation.

Standard designs typically space stays at intervals yielding 8 to 12 spans around the circumference. For distribution transformers in networks with known high fault levels — for example, urban secondary networks with low-impedance interconnections — Welldone increases the number of stays, reducing each unsupported span by 30% to 40%. The additional material cost is negligible compared to the reliability gain.

The outer winding faces the opposite problem: radial forces push it outward. Here, the defense is tensile hoop strength. Each conductor layer is wound under controlled tension and bonded with cured resin or thermally upgraded paper insulation that maintains structural integrity at the elevated temperatures reached during the fault. In higher-kVA designs, Welldone adds external binding tape or glass-reinforced banding to the outer winding surface for additional hoop-strength reserve.

3. Core frame rigidity — the foundation that prevents everything else from moving

A transformer’s winding clamping system is only as strong as the structure it anchors to. If the core frame itself flexes under fault forces, the clamping preload is instantly lost — and with it, the winding’s primary defense.

Welldone’s core clamping frames for distribution transformers are fabricated from structural steel channel sections sized to limit deflection under the worst-case axial fault force to a small fraction of a millimeter. The critical joint — where the vertical tie rods connect to the horizontal clamping beams — uses a bolted-through design with locking hardware, not a welded connection that could fracture under repeated impulse loading.

A secondary function of the core clamping system is to immobilize the core itself. During a fault, the core limb experiences a magnetic impulse that can cause lamination vibration at the fault-current frequency. A rigidly clamped core prevents lamination movement that would abrade inter-laminar insulation over repeated faults — a slow failure mode that can eventually lead to core hot spots and increased no-load losses.

4. Conductor material and insulation — the last line of defense

While mechanical structure handles the brute force, the conductors themselves must be capable of surviving the thermal pulse of a short circuit without losing mechanical strength.

Copper, with a melting point of 1,085 °C, has inherently better short-circuit thermal performance than aluminum (660 °C melting point). IEC 60076-5 specifies that the conductor temperature must not exceed 250 °C for copper windings and 200 °C for aluminum windings during a short circuit of 2-second duration. This seemingly generous margin exists because the actual “worst case” can be a close-in fault cleared not by the transformer’s own protection but by upstream backup protection, which may take significantly longer.

Welldone’s standard distribution transformers use copper conductors exclusively — not only for the thermal margin but because copper’s higher tensile and yield strength provides inherently greater resistance to the mechanical deformation that accompanies the thermal pulse.

The turn-to-turn insulation — typically enamel coating with a paper or Nomex overwrap — is the component that ultimately determines whether a mechanically survived short circuit becomes an electrical failure. Even if the conductor does not buckle, insulation that has been compressed, abraded, or thermally degraded by repeated faults will eventually fail a subsequent dielectric stress. This is why Welldone’s factory short-circuit testing includes a post-test dielectric verification — passing the short-circuit test is only meaningful if the transformer still holds its rated insulation levels afterwards.

Short-Circuit Testing: Proving the Design on the Test Floor

No amount of calculation replaces physical verification. Welldone subjects its standard product families to full-scale short-circuit type testing per IEC 60076-5 at accredited independent laboratories.

The test procedure is deliberately brutal:

1. Pre-test diagnostics: Winding resistance, impedance voltage, no-load loss and current, and dielectric routine tests establish the baseline

2. Test sequence: The transformer is subjected to a specified number of short-circuit applications — typically 3 shots on the highest tap and 3 on the lowest tap for each winding, with the test current adjusted to the calculated asymmetrical peak

3. Each shot: A bolted short circuit is applied across the terminals with the winding energized at a voltage that produces the rated short-circuit current. The fault is held for a duration matching the intended protection clearing time — typically 0.5 seconds for distribution transformers protected by fuses, or 0.25 seconds for those protected by circuit breakers

4. Post-test diagnostics: The identical pre-test measurements are repeated. The acceptance criteria per IEC 60076-5 require that:

• The impedance voltage must not have changed by more than 2% (for circular concentric windings) or 7.5% (for non-circular windings) from the pre-test value

• The transformer must pass a full dielectric routine test — applied voltage and induced overvoltage — at 100% of the standard test levels

• Visual inspection after untanking must show no evidence of conductor displacement, insulation damage, or permanent deformation

A 2% impedance change is a remarkably sensitive indicator. Even a fraction of a millimeter of winding movement registers as a measurable impedance shift — making this a far more discriminating pass/fail criterion than a simple “did it explode?” test.

What This Means for the Specifying Engineer

If you are writing a transformer procurement specification, four design requirements will determine whether the unit survives a short circuit:

1. Specify a minimum short-circuit impedance — not just the standard IEC tolerance mid-value. Tell the manufacturer what your system fault level is at the installation point, and require an impedance that limits the calculated fault current to within the winding’s proven capability.

2. Require short-circuit test evidence — a type test certificate from an independent laboratory for the specific design family you are purchasing. A “similar” design tested at a different rating is not the same. The electromagnetic forces scale differently with kVA, voltage, and winding geometry.

3. Demand copper windings — the thermal and mechanical performance difference between copper and aluminum under fault conditions is a matter of survival, not preference. The modest upfront cost difference is recovered many times over by the avoidance of a single catastrophic failure.

4. Include post-fault serviceability in your acceptance criteria — a transformer that survives a short circuit but requires replacement afterwards has failed its purpose. The IEC 60076-5 acceptance criteria — impedance change within 2%, dielectric integrity intact — should be written into the procurement specification explicitly.

Conclusion

A distribution transformer that explodes during a short circuit did not fail on the day of the fault. It failed on the day it was designed — or more precisely, it was never designed to survive at all.

Short-circuit withstand is not a testing formality. It is a core mechanical engineering discipline, built into the winding preload, the stay geometry, the frame rigidity, and the conductor selection of every transformer that leaves the factory. A manufacturer that treats these as afterthoughts — bolting more clamping on a design that was not calculated for it — is shipping transformers with a countdown clock attached.

At Welldone, short-circuit defense starts with the first electromagnetic calculation and ends with the last post-test measurement. Every distribution transformer in our product line carries a verified, independently tested short-circuit withstand capability — because a transformer that cannot handle the worst-case fault has no business being connected to a real grid.
