How Many KV And MVA Do Industrial Power Transformers Really Use?

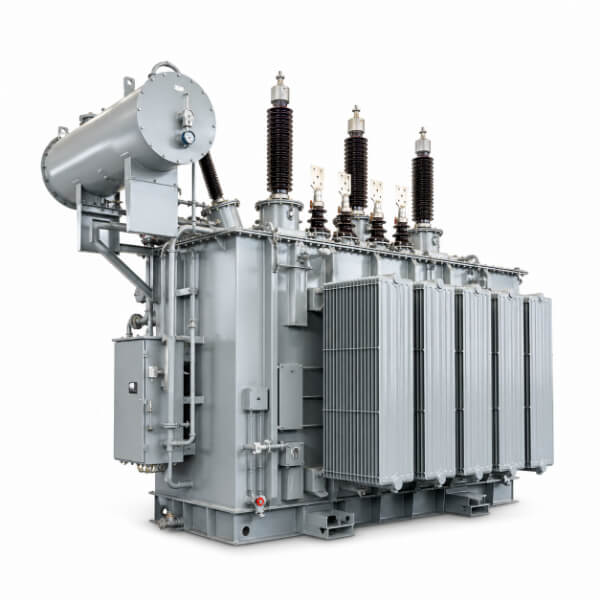

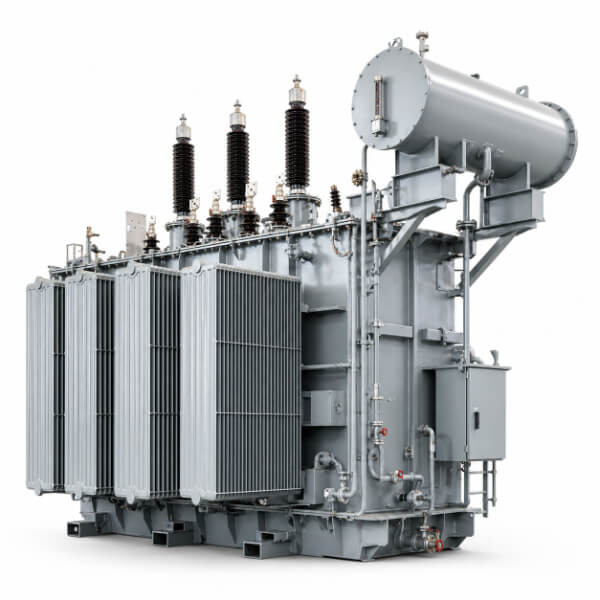

Walk into any industrial substation or large manufacturing plant, and you will see them: the heavy, oil-filled boxes humming with invisible energy. These are power transformers, and they come in sizes that can fit inside a small room or take up an entire city block. But here is the question that engineers and procurement managers ask all the time: What voltage and power ratings are actually common in real-world industry?

The short answer is that most industrial transformers operate somewhere between 6 kV and 132 kV on the high side, with power ratings from a few hundred kVA up to over 100 MVA. But that range is too broad to be useful. Let me break it down by where you actually find them.

Small to Medium Industrial Sites (Light Manufacturing, Workshops, Commercial Complexes)

If you manage a plastics factory, a food processing line, or a mid-sized warehouse, your main power source is usually a transformer stepping down 11 kV, 13.8 kV, or 33 kV to something like 480 V or 400 V for your machines.

In that world, capacities rarely go above 2.5 MVA. Common numbers you will see on nameplates: 500 kVA, 1 MVA (1000 kVA), 1.6 MVA, and 2 MVA. A 1 MVA transformer feeding a 400 V panel can comfortably run a few hundred kilowatts of motor loads, lighting, and HVAC – think a small assembly line or a medium workshop.

Large Industrial Facilities (Steel Mills, Mines, Refineries, Data Centers)

When you step up to heavy industry, the numbers jump fast. A steel mill’s electric arc furnace or a petrochemical plant’s large compressors need serious power. Here, the primary voltage often climbs to 66 kV, 110 kV, or 132 kV directly from the utility transmission line. The secondary side might still be 11 kV or 33 kV feeding internal distribution.

Capacities start at 10 MVA and go up to 60 MVA or even 100 MVA for a single unit. For example, a 40 MVA transformer with 132 kV primary and 11 kV secondary is a standard choice for a large industrial zone. A data center campus might use two or three 20 MVA transformers in parallel for redundancy.

Utility-Scale and Grid-Connected Transformers (Power Plants, Major Substations)

Now we enter the big league. Generator step-up (GSU) transformers at a power plant take the generator’s output – say 22 kV – and push it to 220 kV, 400 kV, or even 765 kV for long-distance transmission. These units are measured in hundreds of MVA.

Common utility transformer sizes: 100 MVA, 240 MVA, 400 MVA, 600 MVA, and the largest single units can exceed 1,200 MVA – enough to power a medium-sized city.

Why Do Voltage and Capacity Stay in Certain Steps?

You will notice that ratings are not random. The industry follows preferred number series, mostly the R10 series. So you see 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000 kVA, and so on. The same applies to MVA ratings: 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63, 80, 100 MVA. This standardization helps manufacturers stock cores, windings, and tanks efficiently.

What Do the Standards Actually Say?

Three main standards dominate global transformer specification:

• IEC 60076 – The international baseline. It defines everything from temperature rise to dielectric tests. If you are buying a transformer for export, this is your reference.

• IEEE C57.12 series – The North American rulebook. It covers voltages like 34.5 kV, 69 kV, 138 kV, and secondary voltages such as 480Y/277 V and 208Y/120 V. For small distribution, IEEE C57.12.20 handles up to 500 kVA overhead units.

• GB/T 6451 in China – Extremely detailed. It covers voltage levels from 6 kV all the way to 750 kV, and capacity from 30 kVA to well over 100 MVA. China also has mandatory energy efficiency tiers (GB 20052) that set strict no-load and load loss limits.

What does this mean for a buyer? If you are in North America, you will almost never see a 33 kV primary – instead you get 34.5 kV. In Europe and Asia, 33 kV is common. The physical hardware is similar, but the tap changers, bushing creepage distances, and test voltages differ.

A Quick Reality Check on Transformer Sizing

Many people make the mistake of buying a transformer that is too large “just in case.” Oversizing increases no-load losses (the core loss that runs 24/7/365) dramatically. A typical 1000 kVA transformer might have 1.2 kW to 1.8 kW of no-load loss. Over ten years, that is over 100,000 kWh wasted. Always size within 70–85% of expected peak load for best lifecycle cost.

Also, remember that the kVA rating is not the same as kW. If your load has a low power factor (say 0.7), a 1000 kVA transformer can only deliver 700 kW continuously. You either add power factor correction or move up to the next size.

Final Takeaways

• For small industrial distribution: 6 kV to 35 kV primary, 50 kVA to 5 MVA

• For large industrial facilities: 66 kV to 132 kV primary, 5 MVA to 100 MVA

• For transmission and generation: 220 kV to 765 kV, 100 MVA to 1200+ MVA

The voltage and MVA numbers on a transformer nameplate are not arbitrary – they follow decades of standardization, regional preferences, and load patterns. Whether you are writing a specification for a new plant or simply trying to understand what that dusty unit in the corner actually does, now you have the real-world ranges that engineers actually use.
