Porcelain, Glass, and Composite Insulators for Power Transformers: Which One Delivers?

When it comes to insulating your power transformer fleet, there is no such thing as a one-size-fits-all answer. Every material brings trade-offs—strength against brittleness, upfront cost against long-term reliability, pollution resistance against mechanical durability. The global electric insulator market was valued at USD 12.2 billion in 2024 and is projected to reach USD 17.5 billion by 2031, driven by grid modernization and renewable energy expansion across Asia Pacific, the Middle East, and North America. Within that growth, the choice of insulator type has become more consequential than ever.

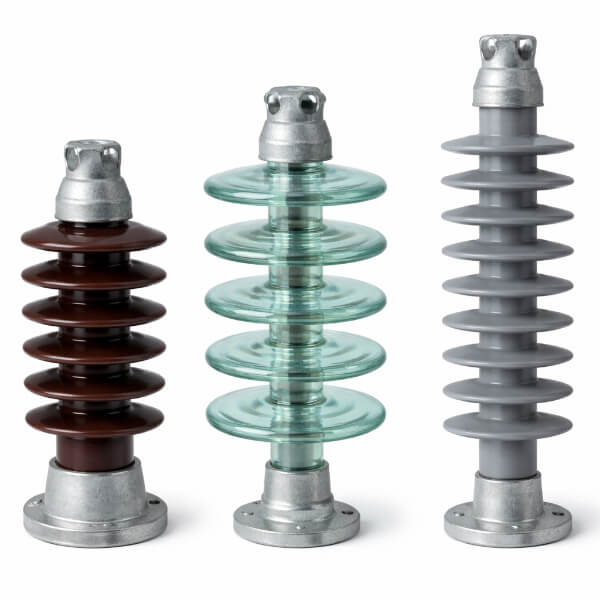

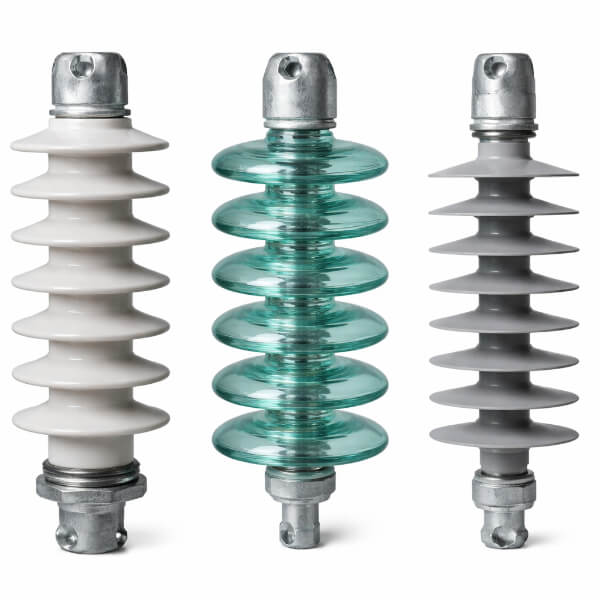

This guide walks through the three major insulator categories—porcelain, glass, and composite—with real-world performance data, international standards, and practical selection criteria. By the end, you will have a clear framework for matching insulator types to your specific operating environment.

The Three Pillars of Transformer Insulation

Every transformer that leaves the factory depends on two separate insulation systems working together: internal insulation (oil and paper inside the tank) and external insulation (bushings and terminal insulators that connect the transformer to the outside world). This article focuses on the external side—the insulators you see mounted on transformer tanks, substation busbars, and incoming line terminals.

External transformer insulators serve three essential functions. They provide dielectric isolation between live conductors and grounded metal enclosures, offer mechanical support for connecting leads and busbars, and maintain surface insulation under rain, fog, pollution, and UV exposure.

Porcelain Insulators

Porcelain has been the backbone of high-voltage insulation for more than a century, and for good reason. This fired ceramic material delivers consistent dielectric strength, excellent compressive load capacity, and remarkable long-term stability. A properly manufactured porcelain bushing can easily outlast the transformer it serves.

Mechanical and dielectric strengths. Porcelain excels under compression, which makes it ideal for supporting heavy conductors and busbars without deformation. Its rigid structure maintains dimensional stability across wide temperature swings, and its glazed outer surface resists moisture absorption and tracking.

Pollution performance considerations. However, the data tells a cautionary story about porcelain in contaminated environments. A 2024 investigation into in-service insulator failures found that porcelain insulators recorded the highest pollution-induced flashover intensity at 1.47 faults per 1,000 units per year. That figure exceeds both glass (0.83 faults) and silicone rubber composite (1.21 faults) under the same field conditions. In clean environments, porcelain remains an outstanding choice. In coastal zones, industrial areas, or agricultural regions with heavy dust or fertilizer drift, the flashover risk rises significantly.

Bushing applications. For transformer bushings, porcelain remains widely specified. Most high-voltage bushings installed on power transformers today still use an oil-impregnated paper condenser core with porcelain serving as the external weather shed. This combination provides proven reliability, especially in moderate pollution levels. PRC-type bushings, which feature a resin-impregnated capacitance-graded core inside a porcelain housing, offer oil-free operation and high seismic ratings while maintaining porcelain's dielectric advantages.

Glass Insulators

Toughened glass insulators occupy a unique position in the market. They are less common than porcelain or composite types globally, but they offer distinct advantages where they are specified.

Self-monitoring capability. The most notable feature of glass is its transparency. When a glass insulator experiences internal failure or cracking from vandalism or manufacturing defects, the damage is immediately visible during routine patrols. Porcelain and composite housings can conceal internal deterioration until catastrophic failure occurs.

Pollution performance. Field data shows glass outperforms porcelain in polluted environments. The same 2024 Ethiopian transmission study recorded glass at 0.83 pollution-induced flashover faults per 1,000 units per year—significantly lower than porcelain's 1.47. The smooth surface of glass also resists contamination accumulation better than unglazed or weathered porcelain surfaces.

Mechanical behavior. Glass is strong under tension but brittle under impact. Its primary failure mode is catastrophic fracture rather than gradual degradation. Some utilities prefer this characteristic because a broken glass insulator demands immediate replacement, whereas a compromised composite insulator may remain in service with hidden damage.

Composite (Polymer) Insulators

The composite insulator market is experiencing the strongest growth among all three types. The global high voltage composite insulators market was valued at USD 974.5 million in 2025 and is projected to reach USD 1.87 billion by 2035, growing at a compound annual rate of 7.6%. The broader composite insulators market, including distribution voltages, reached USD 2.6 billion in 2024 and is forecast to hit USD 5 billion by 2034.

What makes composites different. A composite insulator consists of a fiberglass-reinforced plastic rod core (usually epoxy-based) covered by silicone rubber or EPDM weather sheds. This construction delivers weight savings of 30 to 50 percent compared to porcelain equivalents. Lighter weight reduces tower and support structure loads, lowers transportation costs, and simplifies field installation.

Hydrophobicity: the game-changing property. The silicone rubber housing exhibits natural hydrophobicity—water beads up and rolls off rather than forming a continuous conductive film. Even more remarkably, silicone rubber can transfer its hydrophobicity to accumulated surface pollution. When contamination builds up, the silicone's low-molecular-weight polymer chains migrate into the pollution layer, restoring water-repellent behavior. This self-remediating characteristic is why composites excel in severe pollution environments where porcelain would require regular washing or greasing.

Field performance. Composite insulators recorded a pollution-induced flashover rate of 1.21 faults per 1,000 units per year in the Ethiopian study—better than porcelain but not as good as glass. However, composite insulators offer advantages beyond flashover rates. Their impact resistance greatly exceeds porcelain; they do not shatter when struck by debris or gunfire. Their flexibility allows them to withstand conductor galloping and wind-induced vibration without cracking.

Applications for transformers. Composite materials are increasingly specified for transformer bushings as well. Resin-impregnated synthetic (RIS) bushings use polymeric fabrics encased in epoxy resin, with silicone or porcelain external housings. These designs eliminate oil-filled cores, reducing fire risk and maintenance requirements. Dry-type bushings made entirely of resin-impregnated synthetic materials offer flame resistance and are finding growing acceptance in environmentally sensitive installations.

Long Rod vs Disc-Type: A Design Distinction That Matters

Beyond material choice, the mechanical configuration of an insulator matters equally. Two fundamental designs dominate the market: cap-and-pin (disc) and long rod.

Cap-and-pin insulators. These consist of multiple disc-shaped units stacked in series. Each disc is a separate component held together by metal fittings. The modular design offers flexibility—you add more discs to increase creepage distance for higher voltages or heavier pollution. However, more components mean more interfaces where failure can occur. Disc strings also require longer overall assembly lengths for a given voltage rating.

Long rod insulators. A long rod insulator is manufactured as a single continuous piece, with weather sheds molded directly onto the core. This eliminates intermediate fittings, reduces assembly time, and removes potential failure points at metal-to-ceramic junctions. Composite insulators are almost always built as long rod designs. Porcelain long rod insulators also exist and have been used in Central Europe for more than 40 years, in many cases replacing traditional cap-and-pin strings.

Performance comparison. Studies show that long rod and cap-and-pin designs offer equivalent pollution flashover performance when properly dimensioned for the same contamination level. The choice often comes down to mechanical considerations and installation constraints. Long rod designs simplify string assembly and reduce component count, but disc designs allow easier field replacement of damaged individual units.

How Pollution Severity Drives Insulator Selection

The single most important factor in choosing an insulator type is the pollution severity at the installation site. International standards IEC 60815 (2025 editions) provide the framework for making this determination systematically.

Site pollution severity classes. IEC 60815 defines four pollution severity classes: Light (I), Medium (II), Heavy (III), and Very Heavy (IV). Each class corresponds to a reference unified specific creepage distance (RUSCD) value. For example, a Light class site requires approximately 16 mm/kV of creepage distance, while a Very Heavy class site requires 31 mm/kV or more.

Mapping your site. Utilities are increasingly developing pollution severity maps based on on-site measurements, insulator behavior records, and environmental data. These maps identify regional pollution patterns—coastal salt spray, industrial emissions, desert dust, agricultural chemical drift—and assign SPS classes accordingly. Selecting insulators without site severity data is guesswork, and guesswork leads to flashovers.

Applying the data. Once you know your SPS class, IEC 60815-2 (for ceramic and glass) or IEC TS 60815-3 (for polymer) guides you to the required specific creepage distance and appropriate shed profile. For insulator diameters exceeding 500 mm, creepage distances should be increased by 10 to 20 percent to compensate for reduced washing efficiency from rain.

Case Study: When Pollution Selection Goes Wrong

A recent study documented transmission line outages caused by natural pollution accumulation on glass insulators. The failures occurred not because the insulators were defective, but because the service environment had changed. Reduced rainfall allowed contamination to build up on insulator surfaces, and when high humidity conditions arrived, flashovers triggered cascading outages affecting multiple transmission lines.

The lesson is clear: pollution severity is not static. Climate patterns shift. Industrial activity expands. Agricultural practices introduce new contamination sources. Insulator selection must consider not only today's conditions but also foreseeable changes over the transformer's 30- to 40-year service life.

Common Selection Mistakes and How to Avoid Them

Mistake 1: Choosing solely on initial purchase price. Porcelain insulators often have lower upfront costs than composites. However, composite insulators offer long-term savings through reduced installation weight (30-50 percent lighter), lower tower loads, less frequent maintenance washing in polluted areas, and impact resistance that reduces vandalism-related replacement costs. Evaluate life-cycle cost, not just purchase price.

Mistake 2: Assuming one material fits all. Different sections of the same installation may require different insulator types. The bushing on a transformer in a clean control building may perform fine with porcelain. The line entrance terminal on the same transformer, exposed to coastal salt spray, might need composite or glass. Treat each insulation point individually.

Mistake 3: Ignoring IEC 60815 creepage distance guidance. Some specifiers reuse old creepage distance values without verifying they match current site pollution severity. IEC 60815 was significantly updated in 2025. If you are still working with pre-2025 values, you may be under-specifying insulation for your actual contamination level.

Mistake 4: Overlooking fitting compatibility. Composite and porcelain insulators use different end fitting designs. Mixing materials without proper transition hardware introduces leakage current paths and mechanical stress risers. Always verify that fittings match the insulator type and meet the mechanical load requirements of your application.

Regional Trends Shaping Insulator Demand

Asia Pacific. Rapid industrialization and urbanization are driving demand for power transmission components across the region, particularly in India, Southeast Asia, and China's ongoing grid expansion. Composite insulators are gaining market share due to their lightweight properties, which reduce tower loads and simplify logistics in remote areas.

Middle East. The Gulf region presents extreme pollution challenges—sand, dust, and coastal salt in close proximity. Composite insulators with hydrophobic silicone rubber housings are increasingly specified for transmission lines and substation equipment. Special high-creepage profiles and anti-sand sheds are common adaptations.

North America. Grid modernization and renewable interconnection projects are driving insulator demand. The implementation of US tariffs on composite insulators in 2025 has prompted supply chain reassessments and increased interest in domestic manufacturing sources.

Europe. Stringent environmental regulations favor composite and dry-type bushings that eliminate oil-filled designs. The continent's aging grid infrastructure is undergoing selective replacement, with long rod composite insulators often specified for transmission line retrofits.

Making Your Selection

Step 1: Determine site pollution severity. Conduct on-site ESDD (equivalent salt deposit density) measurements or consult regional pollution maps. Minimum measurement period: one year to capture seasonal variations.

Step 2: Establish required creepage distance. Using IEC 60815, calculate the unified specific creepage distance needed for your SPS class. For polymer insulators, IEC TS 60815-3 provides specific guidance on correction factors for shape, size, and installation position.

Step 3: Evaluate mechanical requirements. Consider maximum working load, ultimate mechanical load, seismic zone rating, ice loading, and wind forces. Porcelain handles compression well. Composite rods deliver high tensile strength. Glass provides good tension performance but brittle failure characteristics.

Step 4: Consider maintenance access. If your site is difficult to reach (mountainous terrain, offshore platforms, desert areas), select insulator types that minimize maintenance requirements. Composite insulators with hydrophobic surfaces generally need less frequent washing than porcelain.

Step 5: Review life-cycle cost. Include initial purchase, transportation (composites are lighter), installation labor (fewer crew hours with composites), periodic washing (less frequent for hydrophobic surfaces), and replacement probability over 30 years.

The Bottom Line

Porcelain remains a proven, cost-effective choice for clean environments and moderate voltage levels. Glass offers superior pollution performance and visual failure indication at a higher initial cost. Composite insulators provide the best combination of lightweight construction, pollution resistance, and impact durability—at a price premium that is rapidly decreasing as manufacturing scales up.

No single insulator type is universally superior. The right choice depends on your specific combination of pollution severity, mechanical requirements, access conditions, and project budget. What works for a substation in the Nevada desert will not work for a coastal transformer station in Vietnam. Good insulator selection requires data, not assumptions.
