Composite Insulators Explained: Design, Field Performance, and Selection Guide

If you work anywhere near power transmission or substation equipment, you have probably heard the term “composite insulator” tossed around as a modern alternative to porcelain and glass. But what exactly makes this polymer‑based device so different – and why are utilities in heavily polluted coastal or industrial areas switching to it almost exclusively?

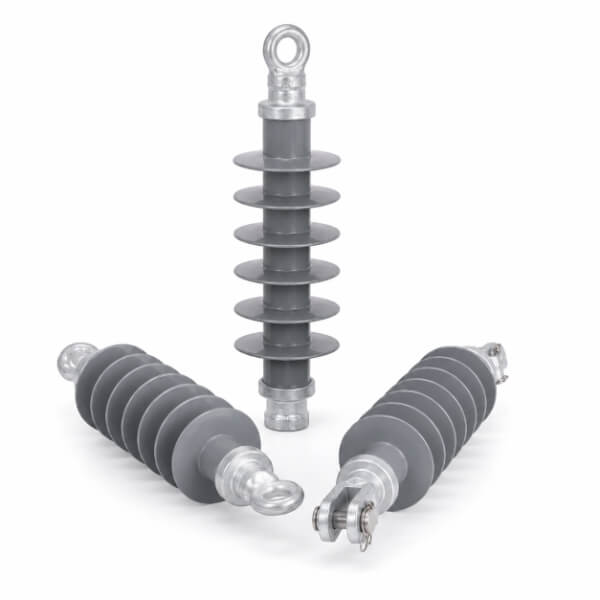

Let’s start with the obvious: a composite insulator is not a single material but a carefully engineered sandwich of three very different components. Each part has a specific job, and the way they work together is what gives composite insulators their unique personality.

Inside a Composite Insulator

The core is a rod (or tube) made of glass‑fibre‑reinforced epoxy – often shortened to FRP. Its only job is to carry the mechanical load. Think of it as the skeleton. A good FRP rod can handle tensile strengths above 600 MPa, which is roughly twice that of structural steel and five to eight times stronger than a porcelain rod of the same diameter. If the insulator has a hollow centre (for example, in a bushing or a circuit‑breaker housing), that core becomes a filament‑wound tube.

The outer housing is the part you actually see. It consists of silicone rubber sheds (also called skirts) plus a smooth sheath covering the core. High‑temperature vulcanised (HTV) silicone rubber is the dominant material here, although some older or specialised products use EPDM. The sheds do two things: they increase the creepage distance (the length the leakage current has to travel), and they provide the famous hydrophobic surface.

The metal end fittings – usually hot‑dip galvanised steel or aluminium – are crimped onto both ends of the core. That crimping process is far more delicate than it sounds. If the seal is not perfectly tight, moisture creeps in, and the core starts to degrade from the inside. Modern manufacturers use a multi‑layer labyrinth seal and strict pressure control to avoid this hidden failure.

The Real Advantages in the Field

The first and most celebrated benefit is pollution flashover resistance. A porcelain insulator covered with salt, cement dust, or industrial grime becomes a wet, conductive path during fog or light rain – flashovers follow. A silicone‑rubber composite insulator, on the other hand, does something remarkable: it not only repels water itself (hydrophobicity), but it also transfers that water‑repellent property to the layer of dirt sitting on its surface (hydrophobicity transfer). Raindrops simply bead up and roll off, carrying much of the contamination with them. That self‑cleaning effect explains why utilities in heavy‑pollution zones can almost eliminate scheduled washing.

Weight is the second killer feature. A composite insulator weighs roughly one‑fifth to one‑tenth of a porcelain equivalent. For a 500 kV line, that difference can mean a single person handling a string instead of a crane. Shipping costs drop, and installation accidents become rarer.

Mechanically, the FRP core is tough and resilient. It does not develop “zero‑value” internal cracks like porcelain can, so you do not need to send crews out with a megger to test every unit. It also survives vibration, ice shedding, and seismic shocks much better than brittle ceramic.

Known Weaknesses

Engineers who blindly replaced every porcelain string with a composite insulator in the 1990s learned a few painful lessons. The most frightening failure mode was brittle fracture – a sudden, almost invisible break of the FRP rod caused by acid penetration (from pollution) combined with mechanical tension. The industry responded with acid‑resistant resin formulations and improved end‑sealing, and brittle fractures are now rare, but they are not completely extinct.

Aging remains an active topic. After ten or fifteen years in the sun, silicone rubber can show powdering on the surface – a whitish dust that increases roughness and slightly degrades electrical performance. More critically, strong arcing can temporarily destroy hydrophobicity in a localised area. The good news is that silicone rubber often recovers some of its water repellence after a resting period. The bad news is that biological growth (moss, fungi, algae) can permanently kill that property if left unchecked in humid climates.

Interface integrity is the quiet killer. The bond between the core, the sheath, and the end fitting is a potential weak point. If manufacturing quality slips, moisture diffuses along the interface and triggers internal tracking or even a complete electrical puncture. This is why reputable buyers now demand proof of proper injection moulding (where the silicone rubber is moulded directly onto the core under heat and pressure) rather than hand‑glued sheds.

Types You Will Encounter

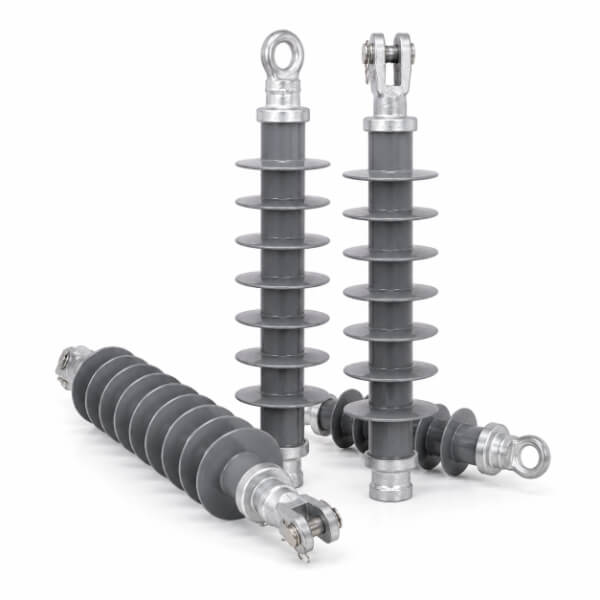

• Line composite insulators – the common suspension and tension types for overhead transmission from distribution up to 1,100 kV.

• Station post insulators – used to support busbars and switchgear inside substations.

• Hollow composite insulators – tubes with sheds, used as housings for instrument transformers, surge arresters, and GIS bushings.

Standards That Actually Matter

If you are specifying composite insulators for a project, do not rely on manufacturer brochures. Look for compliance with these core documents:

• IEC 61109 – the main bible for AC line composite insulators (tests, definitions, acceptance criteria).

• IEC 62217 – general test methods for polymer insulators indoors and outdoors.

• IEC 61462 – for hollow composite insulators used in electrical equipment.

• IEEE 1523 – the North American guide for mechanical and electrical testing.

• GB/T 19519 and GB/T 21429 – the Chinese equivalents covering similar ground.

Where You Find Them Today

You will see composite insulators on almost every new high‑voltage transmission line in polluted regions – from the Gulf coast to inland industrial valleys. They are standard in HVDC projects where porcelain would suffer from accelerated electrolytic corrosion. They are also the go‑to choice for railway catenary systems (the cantilever and vehicle‑roof insulators) because of their impact resistance and low weight. Even indoor switchgear uses hollow composite bushings now, especially in GIS where space is tight and reliability demands are extreme.

A Quick Reality Check for Buyers

No composite insulator is truly “maintenance‑free”. You should still inspect them visually every few years – look for animal damage, tracking marks, or severe chalking. In very clean environments, they will outlast porcelain with almost no attention. In heavy biological zones (think tropical rainforests), you might need to wipe off algae every five years. But compared to the endless washing, zero‑value testing, and replacement logistics of porcelain, composite insulators are a clear winner for most modern applications.

So the next time you look up at a transmission tower or walk past a substation yard, take a closer look at the sheds. If they are rubbery, flexible, and dark grey (often with a slightly dusty feel), you are looking at a composite insulator doing its job – silently, without flashovers, and with a lot less weight than the old ceramic stuff.
